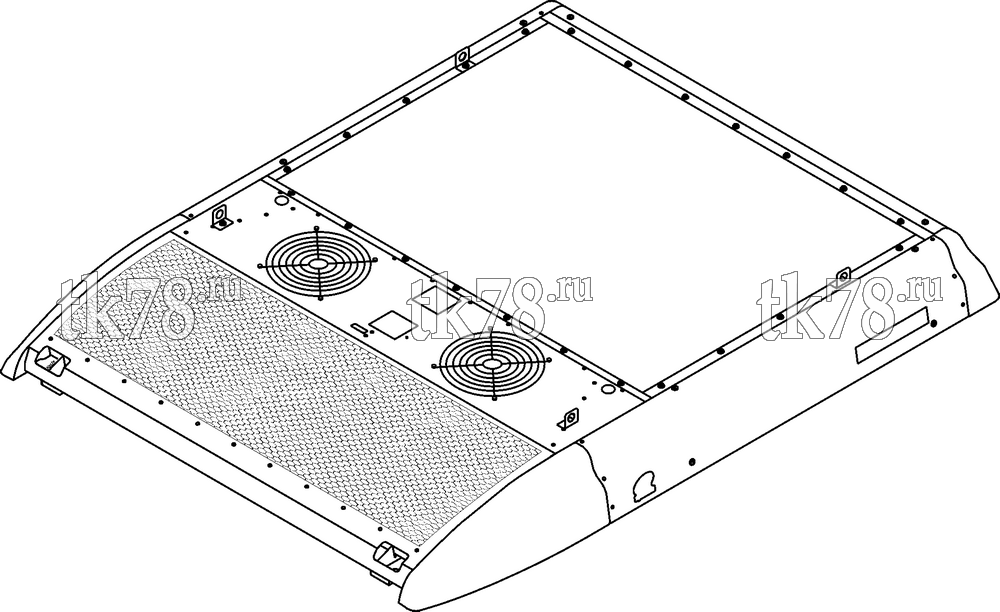

Установкa Thermo King SR-50S W схема SR-50S W REFERENCE SHEET – 7U81
Обновление от: 7/16/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 918851 | System - SR-50S Wide 1000 12V | 7/02 | ||
| 918852 | System - SR-50S Wide 1004 12V | 7/02 | ||
| 918853 | System - SR-50S Wide 1000 24V | 7/02 | ||
| 918854 | System - SR-50S Wide 1004 24V | 7/02 | ||
| 099670 | SR-50S Wide Condenser/Evaporator/Heat - 12V | 7/02 | ||
| 099671 | SR-50S Wide Condenser/Evaporator | 7/02 | ||
| 099672 | SR-50S Wide Condenser/Evaporator/Heat - 24V | 7/02 | ||
| 719743 | Electrical Circuiting - 12VDC for ClimaAIRE | 7/02 | ||
| 719744 | Electrical Circuiting - 24VDC for ClimaAIRE | 7/02 | ||
| 719009 | ClimaAIRE I DP w/ Harness (Unit to Driver panel - 18.3 m lg) | 7/02 | ||
| 719746 | ClimaAIRE DP w/ Harness (Unit to Driver panel - 14 m lg) | 7/02 | ||
| 719300 | ClimaAIRE I DP w/ Harness (Unit to Driver Panel - 12 m lg) | 7/02 | ||
| 719745 | ClimaAIRE DP w/ Harness (Unit to Driver panel - 8 m lg) | 7/02 | ||
| 719748 | Harness - Unit to Compressor (18 m lg) | 7/02 | ||
| 719057 | Harness (A/C Unit to Compressor - 14 m length) | 7/02 | ||
| 719056 | Harness (A/C Unit to Compressor - 12 m length) | 7/02 | ||
| 719747 | Harness - Unit to Compressor (8 m lg) | 7/02 | ||
| 099461 | Fresh Air Damper (Electric) 12V for SR-50S | 7/02 | ||
| 099462 | Fresh Air Damper (Electric) 24V for SR Units | 7/02 | ||
| 099463 | No Fresh Air | 7/02 | ||
| 718376 | Compressor Kit - TM31, 12V, 2B Pulley, POE Oil | 7/02 | ||
| 718377 | Compressor Kit - TM31, 24V 2B Pulley, POE Oil | 7/02 | ||
| 719717 | Compressor Kit - TM31 12V, 2A Pulley, POE Oil | 7/02 | ||
| 719718 | Compressor Kit - TM31 24V, 2A Pulley, POE Oil | 7/02 | ||
| 719221 | Compressor Kit - TM31, 12V, Polygroove Pulley, POE Oil | 7/02 | ||
| 719222 | Compressor Kit - TM31, 24V, Polygroove Pulley, POE Oil | 7/02 | ||
| 715637 | Compressor Kit - TM31 12V 2B Pulley, PAG Oil | 7/02 | ||
| 715638 | Compressor Kit - TM31 24V 2B Pulley, PAG Oil | 7/02 | ||
| 719719 | Compressor Kit - TM31, 12V, 2A Pulley, PAG Oil | 7/02 | ||
| 719740 | Compressor Kit - TM31, 24V, 2A Pulley, PAG Oil | 7/02 | ||
| 719223 | Compressor Kit - TM31, 12V, Polygroove Pulley, PAG Oil | 7/02 | ||
| 719224 | Compressor Kit - TM31, 24V, Polygroove Pulley, PAG Oil | 7/02 | ||
| 718370 | Compressor Kit - TM16, Double A Pulley, 12V, POE Oil, No Manifold | 7/02 | ||
| 718372 | Compressor Kit - TM16, Polygroove Pulley, 12V, POE Oil, No Manifold | 7/02 | ||
| 718371 | Compressor Kit - TM16, Double A Pulley, 24V, POE Oil, No Manifold | 7/02 | ||
| 718373 | Compressor Kit - TM16, Polygroove Pulley, 24V, POE Oil, No Manifold | 7/02 | ||
| 718115 | Compressor Kit - TM16 Double A Pulley, 12V, PAG Oil, No Manifold | 7/02 | ||
| 718117 | Compressor Kit - TM16, Polygroove Pulley, 12V, PAG Oil, No Manifold | 7/02 | ||
| 718116 | Compressor Kit - TM16 Double A Pulley, 24V, PAG Oil, No Manifold | 7/02 | ||
| 718118 | Compressor Kit - TM16, Polygroove Pulley, 24V, PAG Oil, No Manifold | 7/02 | ||
| 715717 | Kit - Vertical Adjustable Comp Manifold - for TM16 (not for A6) | 7/02 | ||
| 718121 | Compressor Manifold Kit - Horizontal Adjustable for TM16 & A6 | 7/02 | ||
| 718378 | Kit - Oil, POE (8 oz can / 0.24 Liter) for TM Compressors | 7/02 | ||
| 718123 | Oil Kit - PAG (8 oz / 0.24 Liter) for TM Compressors | 7/02 | ||
| 818820 | Installation Kit - SR-50 Units | 7/02 | ||
| 818827 | Return Air Grille - SR-50S | 7/02 | ||
| 719054 | Water Pump Kit - 12V | 7/02 | ||
| 719055 | Water Pump Kit - 24V | 7/02 | ||
| 719006 | Harness (Unit to Water Boost Pump - 14 m length) | 7/02 | ||
| 719007 | Harness (Unit to Water Boost Pump - 9 m length) | 7/02 | ||
| 719008 | Harness (Unit to Water Boost Pump - 7.6 m length) | 7/02 | ||
| 719701 | Reheat Option Kit (Software for ClimaAIRE - factory settings) | 7/02 | ||
| 718847 | Compressor Harness Kit - 8 m Extension | 7/02 | ||
| 719337 | Refrigerant Fittings Kit for TM31 (90 deg/straight) | 7/02 | ||
| 719338 | Refrigerant Fittings Kit for TM31 (45 deg/straight) | 7/02 | ||
| 719339 | Refrigerant Fittings Kit for TM31 (straight/straight) | 7/02 | ||
| 719801 | Refrigerant Fittings Kit for TM31 (90 deg/SU90 deg - DU45 deg) | 7/02 | ||
| 719802 | Refrigerant Fittings Kit for TM31 (45 deg/SU90 deg - DU45 deg) | 7/02 | ||
| 719803 | Refrigerant Fittings Kit for TM31 (straight/SU90 deg - DU45 deg) | 7/02 | ||
| 718848 | Refrigerant Fittings Kit - TM31 (90 deg/SU-straight - DU90 deg) | 7/02 | ||
| 718849 | Refrigerant Fittings Kit - TM31 (45 deg/SU-straight - DU90 deg) | 7/02 | ||
| 719160 | Refrigerant Fittings Kit for TM31 (straight/SU-straight - DU90 deg) | 7/02 | ||
| 719690 | Refrigerant Fittings Kit - SR-50 for TM16 (90 deg/straight) | 7/02 | ||
| 719691 | Refrigerant Fittings Kit - SR-50 for TM16 (45 deg/straight) | 7/02 | ||
| 719692 | Refrigerant Fittings Kit - SR-50 for TM16 (straight/straight) | 7/02 | ||
| 719804 | Refrigerant Fittings Kit - SR-50 for TM16 (90 deg/SU90 deg - DU45 deg) | 7/02 | ||
| 719805 | Refrigerant Fittings Kit - SR-50 for TM16 (45 deg/SU90 deg - DU45 deg) | 7/02 | ||
| 719806 | Refrigerant Fittings Kit - SR-50 for TM16 (straight/SU90 deg - DU45 deg) | 7/02 | ||
| 719161 | Refrigerant Fittings Kit - SR-50 for TM16 (90 deg/SU straight - DU 90 deg) | 7/02 | ||
| 719162 | Refrigerant Fittings Kit - SR-50 for TM16 (45 deg/SU straight - DU 90 deg) | 7/02 | ||
| 719163 | Refrigerant Fittings Kit - SR-50 for TM16 (straight/SU straight - DU 90 deg) | 7/02 | ||
| 719693 | Refrigerant Hose Kit (1 m, w/o fittings) | 7/02 | ||
| 719694 | Refrigerant Hose Kit (6 m, w/o fittings) | 7/02 | ||
| 719695 | Refrigerant Hose Kit (9 m, w/o fittings) | 7/02 | ||
| 719696 | Refrigerant Hose Kit (12 m, w/o fittings) | 7/02 | ||
| 719800 | Kit - Refrigerant Hose (13 m without Fittings) | 7/02 | ||
| 719697 | Refrigerant Hose Kit (14 m, w/o fittings) | 7/02 | ||
| 719807 | Refrigerant Hose Kit (15 m, w/o fittings) | 7/02 | ||
| 719808 | Refrigerant Hose Kit (16 m, w/o fittings) | 7/02 | ||
| 719698 | Refrigerant Hose Kit (17 m, w/o fittings) | 7/02 |
