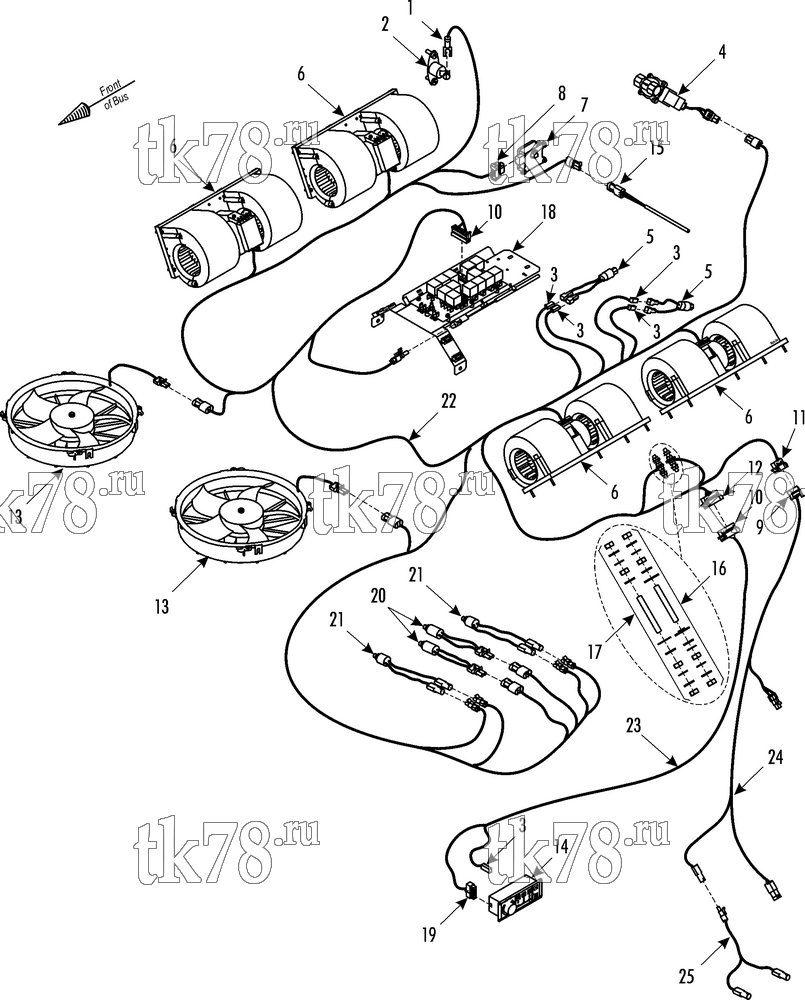

Установкa Thermo King SR-50S W Split 1000/1004 схема ELECTRICAL COMPONENTS – 181G8
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2788 | TERMINAL - fork | 1 | |
| 2 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 55-7663 | SCREW - switch | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 3 | 44-6381 | CONNECTOR (1-pin, female) | 5 | |
| 4 | 41-4151 | VALVE - solenoid (water, 24V, 1004 only) | 1 | |
| 60-271 | KIT - repair | 1 | ||
| 41-4201 | COIL (24V) | 1 | ||
| 41-4152 | VALVE - solenoid (water, 12V, 1004 only) | 1 | ||
| 5 | 41-4309 | SWITCH - lpco | 2 | |
| 6 | 78-1364 | BLOWER - evaporator (24V) | 4 | |
| 41-1717 | BLOWER - evaporator (12V) | 4 | ||
| 55-7696 | SCREW - blower | 20 | ||
| 55-7031 | LOCKWASHER | 20 | ||
| 55-7697 | FLATWASHER | 20 | ||
| 7 | 41-3255 | SERVOMOTOR (24V) | 1 | |
| 41-4315 | SERVOMOTOR (12V) | 1 | ||
| 55-7696 | SCREW - motor | 3 | ||
| 55-7031 | LOCKWASHER | 3 | ||
| 8 | 41-2468 | CONNECTOR (female) | 1 | |
| 9 | 41-3855 | TERMINAL - connector (10-pin, female) | 1 | |
| 10 | 41-3856 | TERMINAL - connector (18-pin, female) | 2 | |
| 11 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 12 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 13 | 78-1344 | FAN - condenser (24V, see 175H9) | 2 | |
| 78-1408 | FAN - condenser (12V, see 175H9) | 2 | ||
| 14 | 41-7211 | ClimaAIRE I - assembly | 1 | |
| 15 | 41-4157 | SENSOR - temperature | 1 | |
| 16 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 3 | ||
| 305-1653 | NUT | 4 | ||
| 55-8955 | WASHER - bright | 4 | ||
| 17 | 55-9367 | STUD - negative | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8568 | WASHER - bright | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 2 | ||
| 18 | NSS | PANEL - control (24V, see 181G0) | 1 | |
| NSS | PANEL - control (12V, see 181G9) | 1 | ||
| 19 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 20 | 41-3831 | SWITCH - hpco | 2 | |
| 21 | 41-1501 | SWITCH - hpco | 2 | |
| 22 | 41-4993 | HARNESS (24V, for connectors see grid 115D14) | 1 | |
| 41-4994 | HARNESS (12V, for connectors see grid 115D14) | 1 | ||
| 23 | 41-4512 | HARNESS - unit to driver panel (18.3 m, for connectors see 115D14) | 1 | |
| 41-5232 | HARNESS - driver panel (16 m, for connectors see 115D14) | 1 | ||
| 41-4999 | HARNESS - driver panel (14 m, for connectors see 115D14) | 1 | ||
| 41-4313 | HARNESS - driver panel (12 m, for connectors see 115D14) | 1 | ||
| 41-4998 | HARNESS - driver panel (8 m, for connectors see 115D14) | 1 | ||
| 41-5233 | HARNESS - driver panel (6 m, for connectors see 115D14) | 1 | ||
| 41-5234 | HARNESS - driver panel (10 m, for connectors see 115D14) | 1 | ||
| 24 | 41-4995 | HARNESS - unit to compressor (8 m, for connectors see 115D14) | 1 | |
| 41-4312 | HARNESS - compressor (12 m, for connectors see 115D14) | 1 | ||
| 41-4996 | HARNESS - compressor (14 m, for connectors see 115D14) | 1 | ||
| 41-4997 | HARNESS - compressor (18 m, for connectors see 115D14) | 1 | ||
| 25 | 41-5235 | HARNESS - joint (for connectors see 115D14) | 1 |
