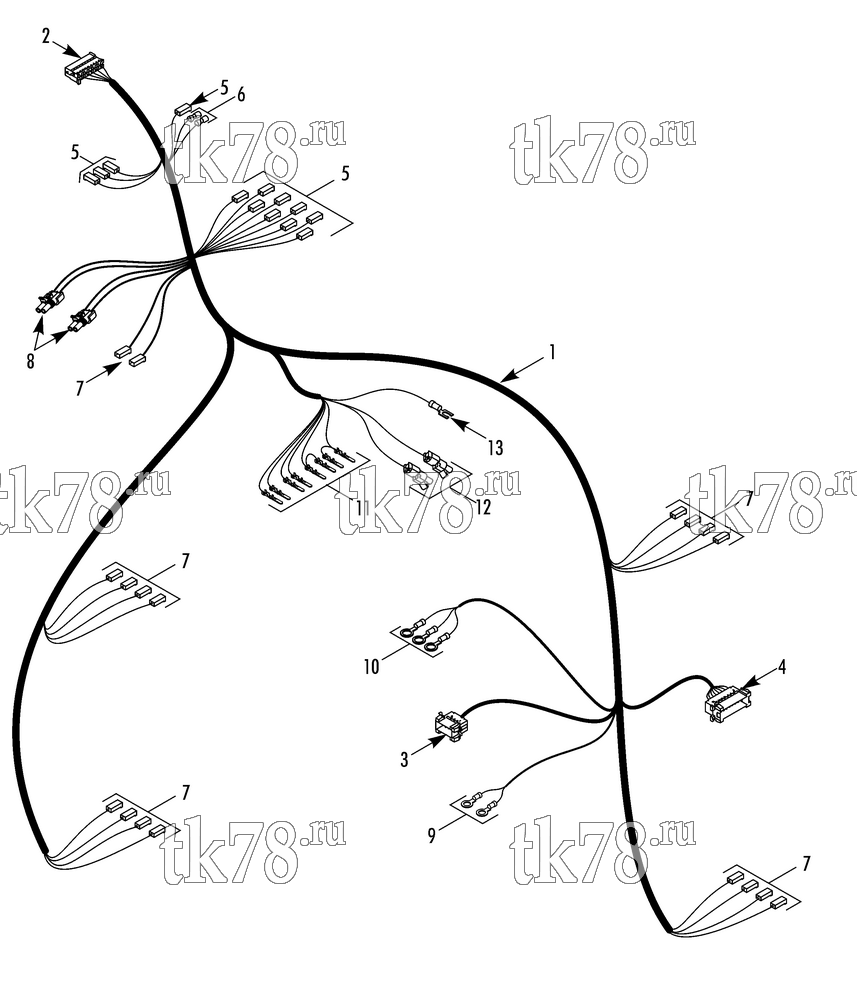

Установкa Thermo King SR-50S PLUS схема HARNESS MAIN – 233D4
Обновление от: 1/23
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4993 | HARNESS - main | 1 | |
| 2 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 3 | 41-4054 | CONNECTOR - male (10-pin) | 1 | |
| 4 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 5 | 41-5243 | FINGRIP (14-16 ga) | 13 | |
| 6 | 41-5244 | FINGRIP (10-12 ga) | 2 | |
| 7 | 44-6381 | CONNECTOR - female | 18 | |
| 44-5066 | TERMINAL - fingrip | 14 | ||
| 8 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 9 | 44-1031 | TERMINAL - ring (22-16 ga 5/16) | 1 | |
| 10 | 44-2790 | TERMINAL - ring (blue 5/16, 14-16 ga) | 3 | |
| 11 | 41-2779 | PIN - male (18 ga) | 13 | |
| 12 | 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 2 | |
| 13 | 44-2788 | TERMINAL - fork (red) | 1 |
