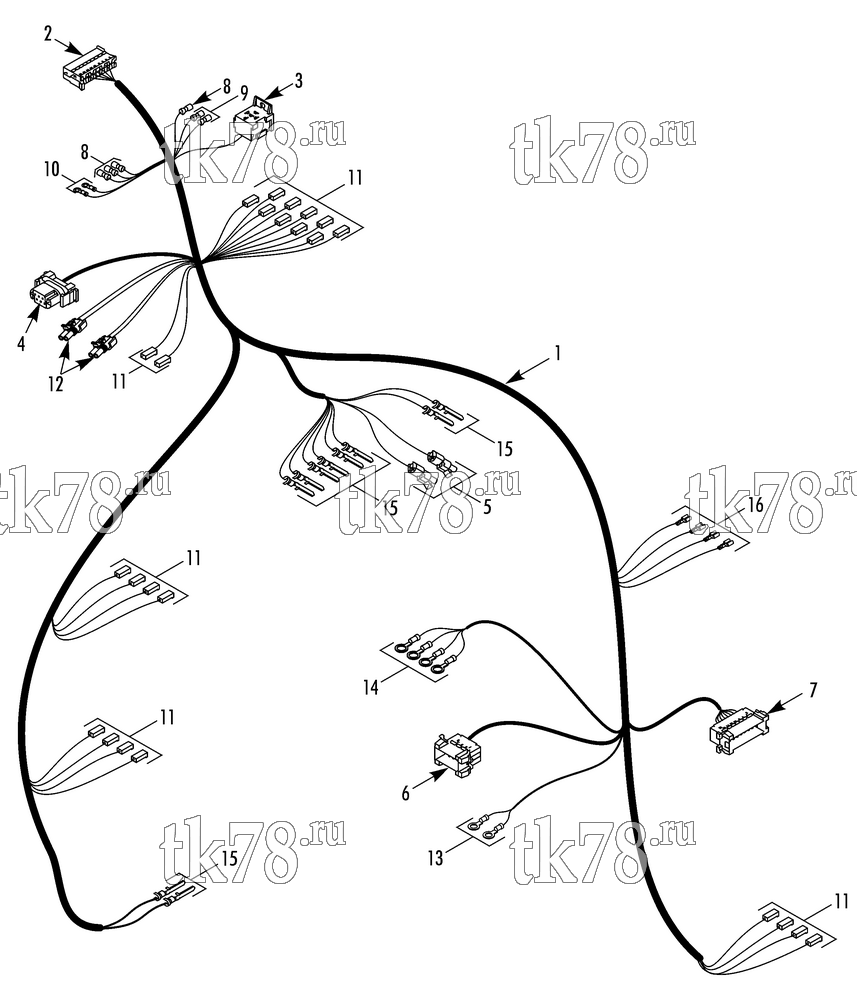

Установкa Thermo King SR-50S PLUS схема HARNESS MAIN – 233B7
Обновление от: 2/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5376 | HARNESS - main | 1 | |
| 2 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 3 | 44-5537 | SOCKET - relay | 1 | |
| 4 | 41-2768 | CONNECTOR - female (6-pin) | 1 | |
| 5 | 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 2 | |
| 6 | 41-4054 | CONNECTOR - male (10-pin) | 1 | |
| 7 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 8 | 41-5243 | FINGRIP (14-16 ga) | 4 | |
| 9 | 41-5244 | FINGRIP (10-12 ga) | 2 | |
| 10 | 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 2 | |
| 11 | 44-6381 | CONNECTOR - female | 18 | |
| 44-5066 | TERMINAL - fingrip | 18 | ||
| 12 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 13 | 44-1031 | TERMINAL - ring (red) | 2 | |
| 14 | 44-2790 | TERMINAL - ring (blue 5/16, 14-16 ga) | 3 | |
| 15 | 41-2779 | PIN - male | 15 | |
| 16 | 55-7702 | TERMINAL - fingrip (16-18 ga) | 4 |
