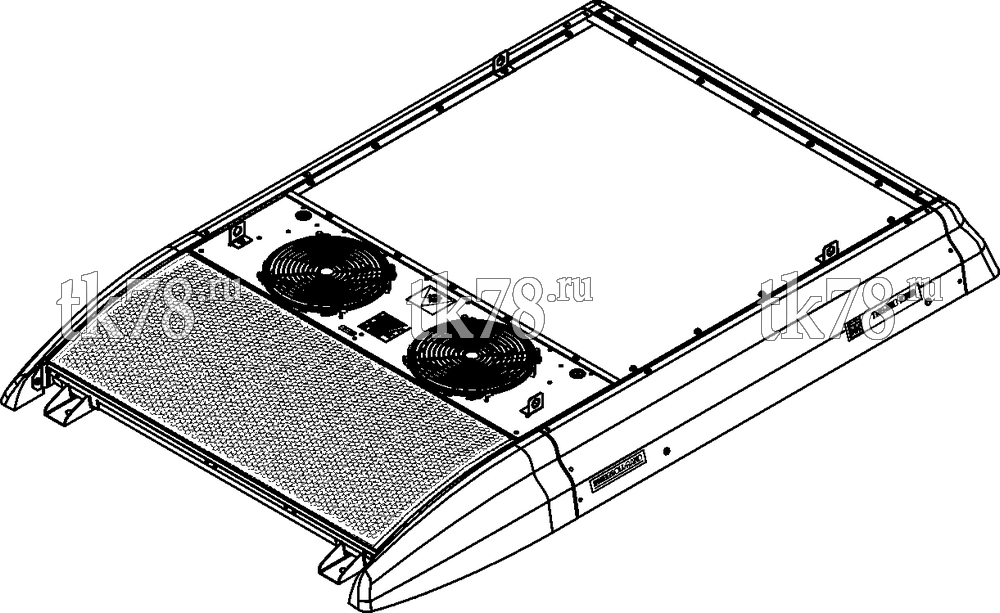

Установкa Thermo King SR-50S PLUS схема SR-50S PLUS REFERENCE SHEET – 13U76
Обновление от: 6/8/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900897 | SR-50S Plus | 12/08 | ||
| 900898 | SR50S | 12/08 | ||
| 099457 | SR50S 1000 | 12/08 | ||
| 099460 | SR50S 1004 | 12/08 | ||
| 099462 | Damper | 12/08 | ||
| 099463 | Damper Plug | 12/08 | ||
| 099818 | ClimaAIRE II | 12/08 | ||
| 700115 | SmartAIRE Harness 12 m | 12/08 | ||
| 700127 | Water Valve Harness 10M | 12/08 | ||
| 700128 | Water Valve Harness 20M | 12/08 | ||
| 700129 | Water Valve | 12/08 | ||
| 700359 | Cover | 12/08 | ||
| 700391 | Air Filter Grill | 12/08 | ||
| 700421 | Harness SmartAIRE I 18.3 M | 12/08 | ||
| 700606 | Battery Cable | 12/08 | ||
| 700891 | Alternator kit | 12/08 | ||
| 700909 | Insulation | 12/08 | ||
| 700910 | Tube Connections | 12/08 | ||
| 701039 | Harness ClimaAIRE I 1.5M | 12/08 | ||
| 701133 | Compressor | 12/08 | ||
| 701137 | Shuhang Motor | 12/08 | ||
| 701139 | Hose Kit | 12/08 | ||
| 701582 | Water Valve Assembly | 12/08 | ||
| 718123 | Compressor Oil | 12/08 | ||
| 718377 | Compressor Kit | 12/08 | ||
| 718378 | Compressor Oil | 12/08 | ||
| 719006 | Harness Boost Pump 14M | 12/08 | ||
| 719007 | Harness Boost Pump 9M | 12/08 | ||
| 719055 | Waterpump | 12/08 | ||
| 719056 | Harness Compressor 12M | 12/08 | ||
| 719057 | Harness Compressor 14M | 12/08 | ||
| 719135 | Harness ClimaAIRE II 18M | 12/08 | ||
| 719300 | Harness ClimaAIRE I 12M | 12/08 | ||
| 719305 | Alternator | 12/08 | ||
| 719338 | Fittings | 12/08 | ||
| 719693 | Hose | 12/08 | ||
| 719744 | SR-50S Plus ClimaAIRE 24 v | 12/08 | ||
| 719802 | Fittings | 12/08 | ||
| 720320 | Connection Kit | 12/08 | ||
| 818820 | Hose Kit | 12/08 |
