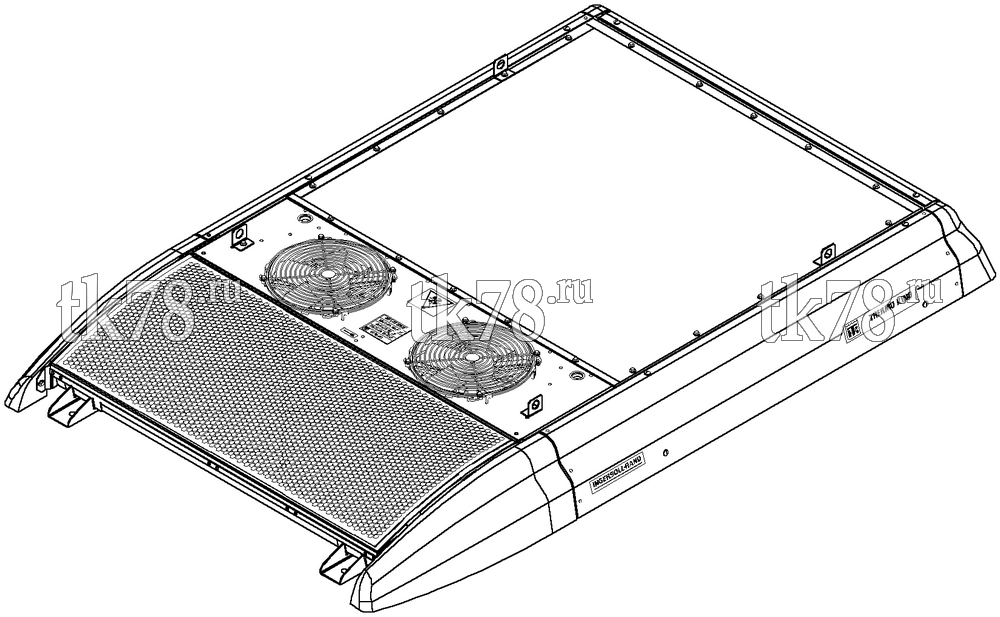

Установкa Thermo King SR-50S 1000 & 1004 схема SR-50S 1000 & 1004 REFERENCE SHEET – 6U71
Обновление от: 9/17/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 918825 | SR-50S 1000 12V System | 6/01 | ||
| 918826 | SR-50S 1004 12V System | 6/01 | ||
| 918827 | SR-50S 1000 24V System | 6/01 | ||
| 918828 | SR-50S 1004 24V System | 6/01 | ||
| 099457 | SR-50S 1000 12V | 6/01 | ||
| 099459 | SR-50S 1000 24V | 6/01 | ||
| 099458 | SR-50S 1004 12V w/ Heat | 6/01 | ||
| 099460 | SR-50S 1004 24V w/ Heat | 6/01 | ||
| 099461 | SR-50 Grille Air | 6/01 | ||
| 099462 | Add SR-50S Damper | 6/01 | ||
| 099463 | Add SR-50S Plug Air Damper | 6/01 | ||
| 715637 | Compressor Kit - TM31 12V | 6/01 | ||
| 715638 | Compressor Kit - TM31 24V | 6/01 | ||
| 715717 | Manifold | 6/01 | ||
| 718115 | Compressor Kit - TM16 2A | 6/01 | ||
| 718116 | Compressor Kit - TM16, 2A, 12V | 6/01 | ||
| 718117 | Compressor Kit - TM16, Poly | 6/01 | ||
| 718118 | Compressor Kit - TM16, Poly | 6/01 | ||
| 718121 | Compressor Manifold Kit - Horizontal | 6/01 | ||
| 718123 | Oil Kit - PAG 8 oz | 6/01 | ||
| 718286 | SA Compressor Manifold Kit - Horizontal | 6/01 | ||
| 718287 | SA Compressor Manifold Kit - Vertical | 6/01 | ||
| 718370 | Compressor Kit - TM16, 2A 12V | 6/01 | ||
| 718371 | Compressor Kit - TM16, 2A 24V | 6/01 | ||
| 718372 | Compressor Kit - TM16, Poly | 6/01 | ||
| 718373 | Compressor Kit - TM16, Poly | 6/01 | ||
| 718376 | Compressor Kit - TM31, 2B, 12V | 6/01 | ||
| 718377 | Compressor Kit - TM31, 2B 24V | 6/01 | ||
| 718378 | Kit - Oil, POE 8oz | 6/01 | ||
| 719397 | Hose - TM31 | 6/01 | ||
| 719398 | Hose - TM31 | 6/01 | ||
| 718399 | Hose Kit - TM31 | 6/01 | ||
| 718820 | Hose Kit - TM31 | 6/01 | ||
| 718821 | Hose Kit - TM16 | 6/01 | ||
| 718822 | Hose Kit - TM16 | 6/01 | ||
| 718823 | Hose Kit - TM16 | 6/01 | ||
| 718824 | Hose Kit - TM16 | 6/01 | ||
| 718847 | Harness Extension | 6/01 | ||
| 718850 | Hose Kit - TM31 | 6/01 | ||
| 718851 | Hose Kit - TM31 | 6/01 | ||
| 718852 | Hose Kit - TM16 | 6/01 | ||
| 718853 | Hose Kit - TM16 | 6/01 | ||
| 718854 | Hose Kit - TM31 | 6/01 | ||
| 718855 | Hose Kit - TM31 | 6/01 | ||
| 718856 | Hose Kit - TM31 | 6/01 | ||
| 718857 | Hose Kit - TM16 | 6/01 | ||
| 718858 | Hose Kit - TM16 | 6/01 | ||
| 718859 | Hose Kit - TM16 | 6/01 | ||
| 719221 | Compressor Kit - TM31, 12V | 6/01 | ||
| 719222 | Compressor Kit - TM31, 24V | 6/01 | ||
| 719223 | Compressor Kit - TM31, 12V | 6/01 | ||
| 719224 | Compressor Kit - TM31, 24V | 6/01 | ||
| 818820 | Installation Kit | 6/01 | ||
| 818826 | ClimaAIRE | 6/01 | ||
| 818827 | Grille | 6/01 |
