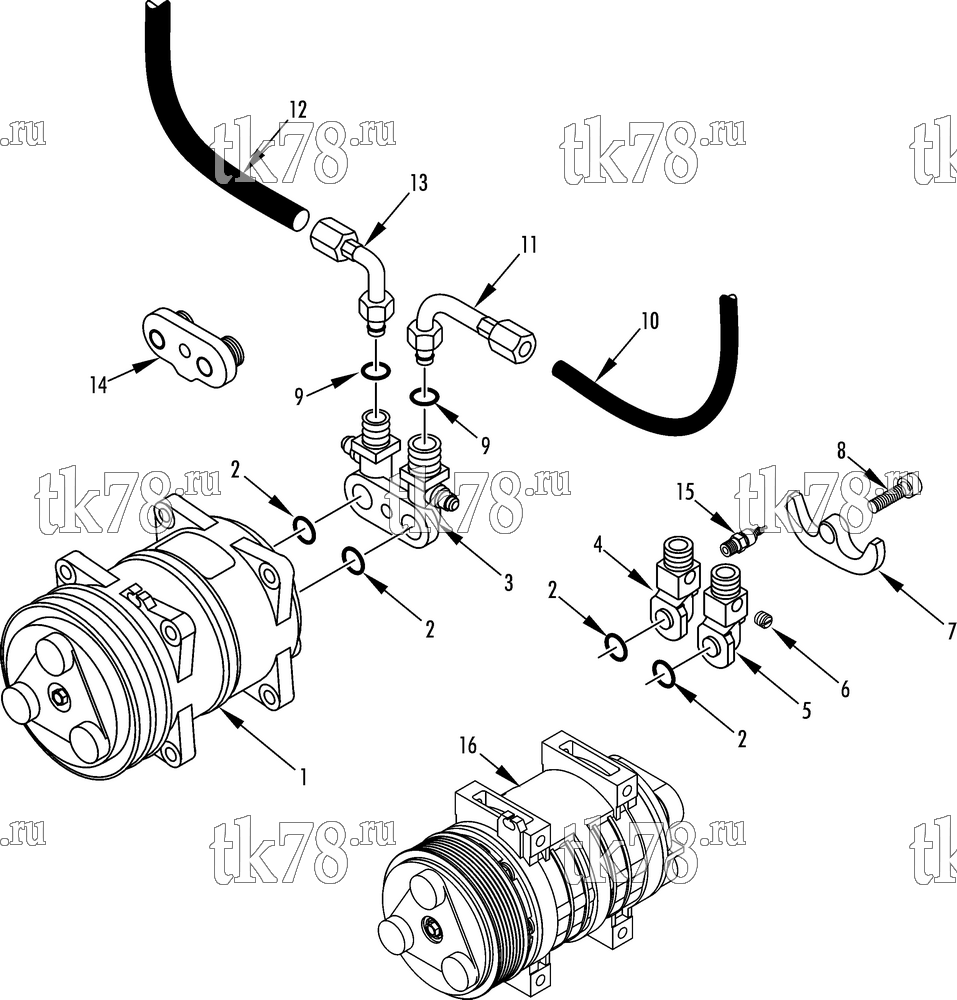

Установкa Thermo King SR-50S 1000 & 1004 схема TM-16 COMPRESSOR & HOSE KITS – 164A2
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1012 | COMPRESSOR - 16XD (12V, 5.3 in, incl 2A clutch) | 2 | |
| 102-1013 | COMPRESSOR - 16XD (24V, 2A groove) | 4 | ||
|
10-TM-16-24 | Компрессор, TM-16, 24V 2A, R134A/R404A | 22 740 ₽ |
|
| 107-241 | CLUTCH (12V, 2A groove) | 1 | ||
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 107-242 | CLUTCH (24V, 2A groove) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 102-1032 | COMPRESSOR - 16XD (12V, 6 poly groove) | 1 | ||
| 102-668 | COMPRESSOR - TM16-XD (24V, 8 poly groove) | 1 | ||
| 18-10158-04 OEM | Компрессор, TM-16, 24V 8PV, R134A/R404A | 22 740 ₽ |
|
|
|
10-TM-16-8-24 | Компрессор, TM-16, 24V 8PV, R134A/R404A | 22 740 ₽ |
|
| 107-261 | CLUTCH (12V, poly groove) | 1 | ||
|
10-107-261 | Муфта электромагнитная, 8PV/12V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 107-262 | CLUTCH (24V, poly groove) | 1 | ||
|
10-107-262 | Муфта электромагнитная, 8PV/24V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 203-502 | OIL - compressor (PAG, 8 oz) | 1 | ||
| 203-504 | OIL - compressor (ester solest 68, 8 oz) | 1 | ||
| 2 | 33-2882 | O-RING | 2 | |
| 3 | 22-992 | MANIFOLD - compressor | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 4 | 22-1123 | MANIFOLD - discharge | 2 | |
| 5 | 22-1122 | MANIFOLD - suction | 1 | |
| 6 | 55-3364 | PLUG - pipe | 2 | |
| 7 | 22-1121 | BRACKET - manifold | 1 | |
| 8 | 55-8648 | SCREW - bracket | 1 | |
| 55-8537 | LOCKWASHER | 1 | ||
| 9 | 33-2846 | O-RING (7/16 id) | 1 | |
| 33-2848 | O-RING (9/16 id) | 1 | ||
| 33-2847 | O-RING (11/16 id) | 2 | ||
| 10 | 61-1084 | HOSE - suction (9 m) | 1 | |
| 61-1085 | HOSE - suction (1 2m) | 1 | ||
| 61-1086 | HOSE - suction (17 m) | 1 | ||
| 11 | 55-9799 | FITTING - suction (tube-O, 90) | 1 | |
| 55-9804 | FITTING - suction (tube-O, 45) | 1 | ||
| 55-9806 | FITTING - suction (tube-O, straight) | 1 | ||
| 55-9790 | FITTING - suction (straight) | 1 | ||
| 12 | 61-1087 | HOSE - discharge (9 m) | 1 | |
| 61-1088 | HOSE - discharge (12 m) | 1 | ||
| 61-1089 | HOSE - discharge (17 m) | 1 | ||
| 13 | 55-9800 | FITTING - discharge (tube-O, 90) | 1 | |
| 55-9805 | FITTING - discharge (tube-O, 45) | 1 | ||
| 55-9783 | FITTING - discharge (tube-O, straight) | 1 | ||
| 55-9801 | FITTING - discharge (straight) | 1 | ||
| 14 | 22-1053 | CONNECTOR - compressor | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 15 | 11-2886 | VALVE | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 16 | 102-899 | COMPRESSOR - TM16-HD DM (12V, incl poly groove 8K clutch) | 1 | |
| 102-1023 | COMPRESSOR - 16XD DM (24 V, incl poly groove 8K clutch) | 1 | ||
| 102-904 | COMPRESSOR - TM16-HD DM (12 V, 5.3 in, incl 2A groove clutch) | 1 | ||
| 102-1025 | COMPRESSOR - 16XD DM (24 V, 5.3 in, incl 2A groove clutch) | 1 |
