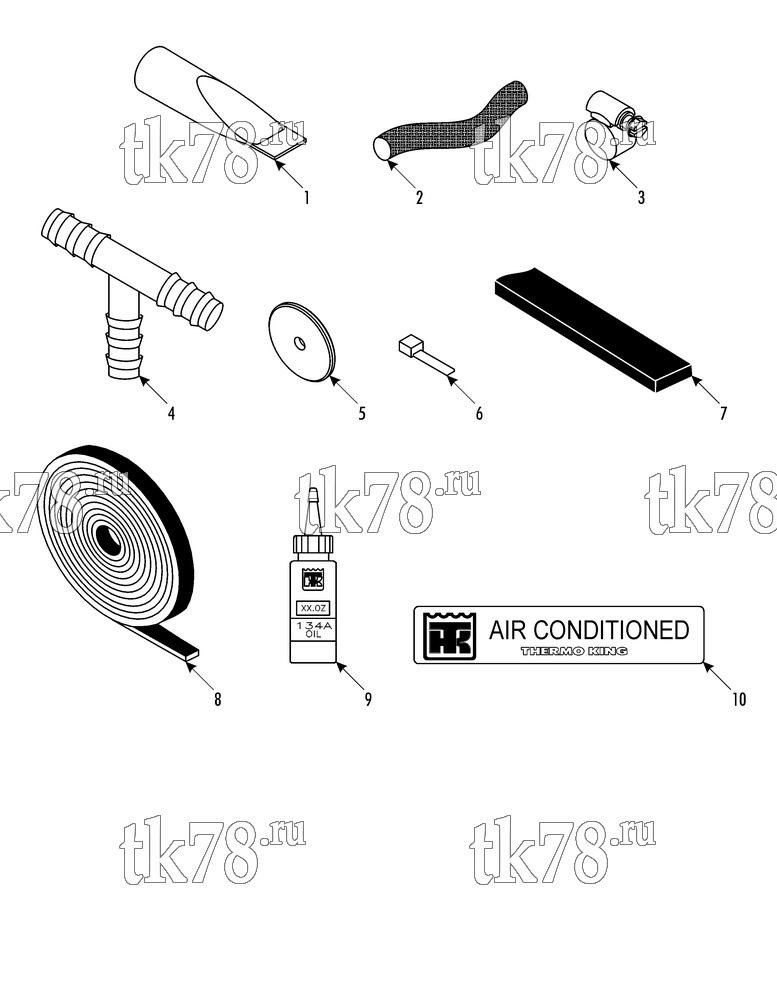

Установкa Thermo King SR-50C 1000 & 1004 схема KIT INSTALLATION – 265F8
Обновление от: 4/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - hose check | 4 | |
| 2 | 91-9006 | HOSE - drain | A/R | |
| 3 | 55-6726 | CLAMP | 10 | |
| 4 | 55-6349 | TEE | 2 | |
| 5 | 55-8542 | WASHER - special | 6 | |
| 6 | 55-2330 | BANDWRAP | 20 | |
| 7 | 33-3531 | STRIP - neoprene | A/R | |
| 33-3706 | STRIP - neoprene | A/R | ||
| 8 | 203-391 | SEALER - tape | A/R | |
| 9 | 203-773 | OIL - bottle 2 oz | A/R | |
| 203-505 | OIL - compressor (2 oz bottle) | A/R | ||
| 203-502 | OIL - compressor (PAG, 8 oz) | A/R | ||
| 10 | 99-6884 | NAMEPLATE - TK Air Conditioned | 1 |
