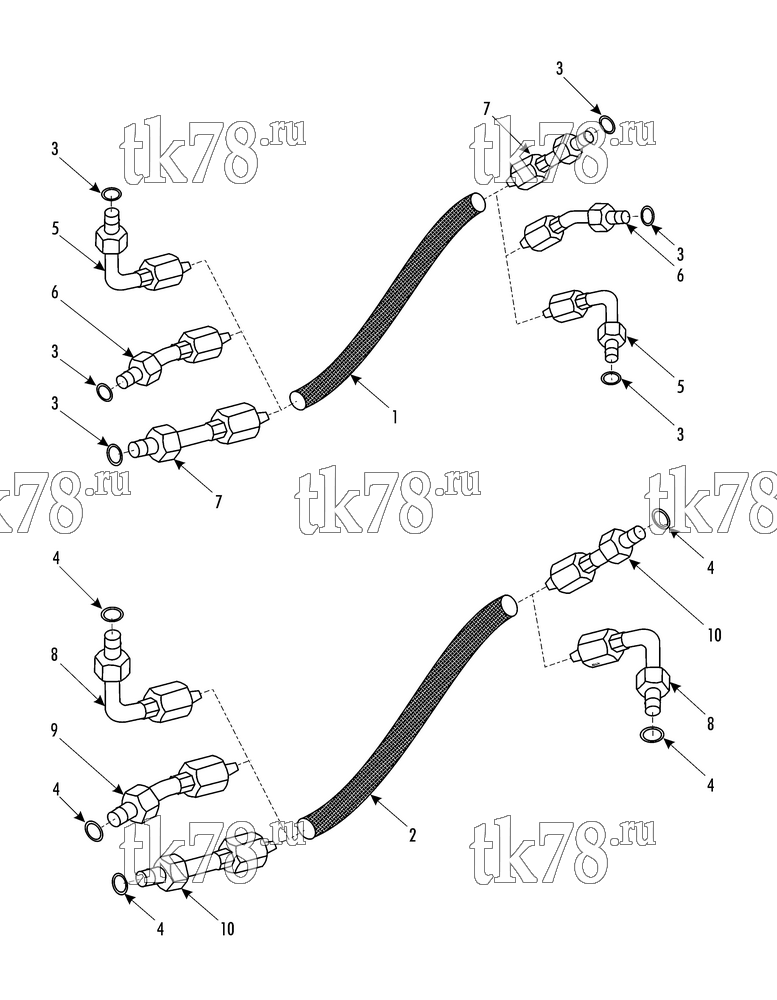

Установкa Thermo King SR-50C 1000 & 1004 схема KIT HOSE & FITTINGS TM31 COMPRESSOR – 265F7
Обновление от: 4/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5118 | HOSE #10, R134a | A/R | |
| 2 | 61-4769 | HOSE #16, R134a | A/R | |
| 3 | 33-2847 | O-RING (#16) | A/R | |
| 4 | 33-2848 | O-RING (#12) | A/R | |
| 5 | 55-9798 | FITTING - 90 degree (#10 ftg, #10 hose) | A/R | |
| 6 | 55-9803 | FITTING - 45 degree (#10 ftg, #10 hose) | A/R | |
| 7 | 55-9801 | FITTING - straight (#10 ftg, #10 hose) | A/R | |
| 8 | 55-9793 | FITTING - 90 degree (#12 ftg, #16 hose) | A/R | |
| 9 | 55-9802 | FITTING - 45 degree (#12 ftg, #16 hose) | A/R | |
| 10 | 55-9790 | FITTING - straight (#12 ftg, #16 hose) | A/R |
