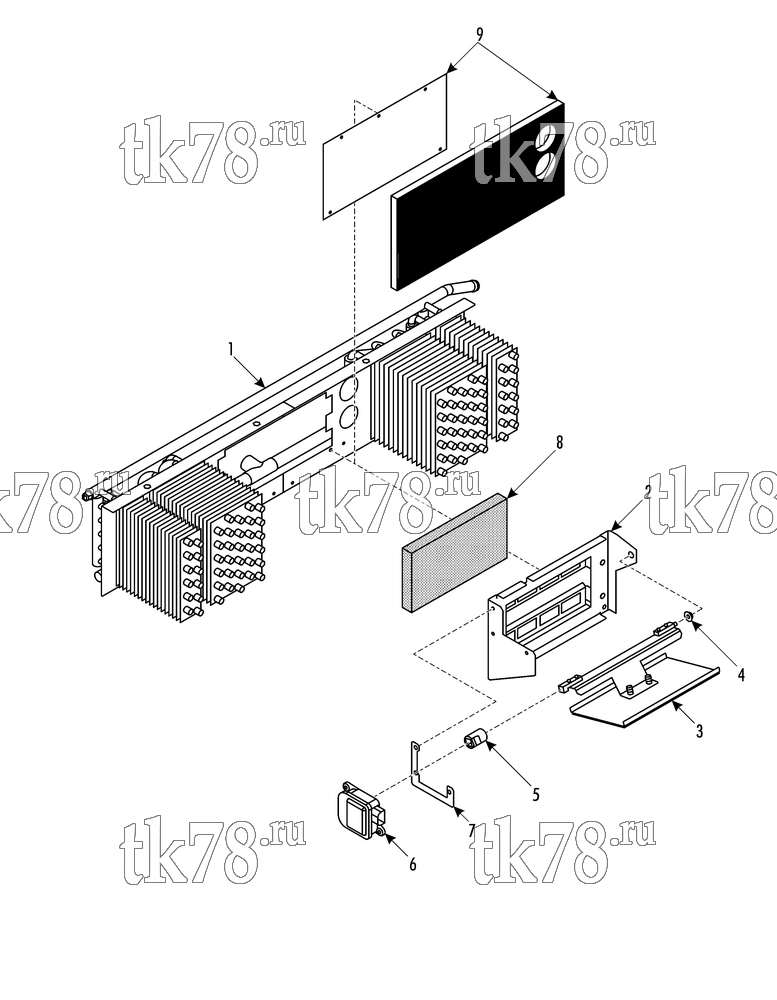

Установкa Thermo King SR-50C 1000 & 1004 схема FRESH AIR DAMPER – 265F5
Обновление от: 4/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1779 | COIL - evaporator (1000) | 1 | |
| 67-1781 | COIL - evaporator (1004) | 1 | ||
| 2 | 92-1543 | BASE - fresh air | 1 | |
| 55-7663 | SCREW - base | 5 | ||
| 55-7697 | FLATWASHER | 5 | ||
| 55-7866 | NUT - captive | 5 | ||
| 3 | 92-1544 | FLAP - fresh air | 1 | |
| 4 | 77-2652 | BEARING - shaft | 1 | |
| 5 | 92-2937 | COUPLING - damper | 1 | |
| 6 | 41-4315 | SERVOMOTOR | 1 | |
| 7 | 92-1468 | HOLDER | 1 | |
| 55-7696 | SCREW - motor to flap | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 8 | 92-1545 | FILTER - air | 1 | |
| 9 | 92-1542 | PLUG - fresh air | 1 | |
| 55-5130 | RIVET - plug | 5 | ||
| NSS | INSULATION | 1 |
