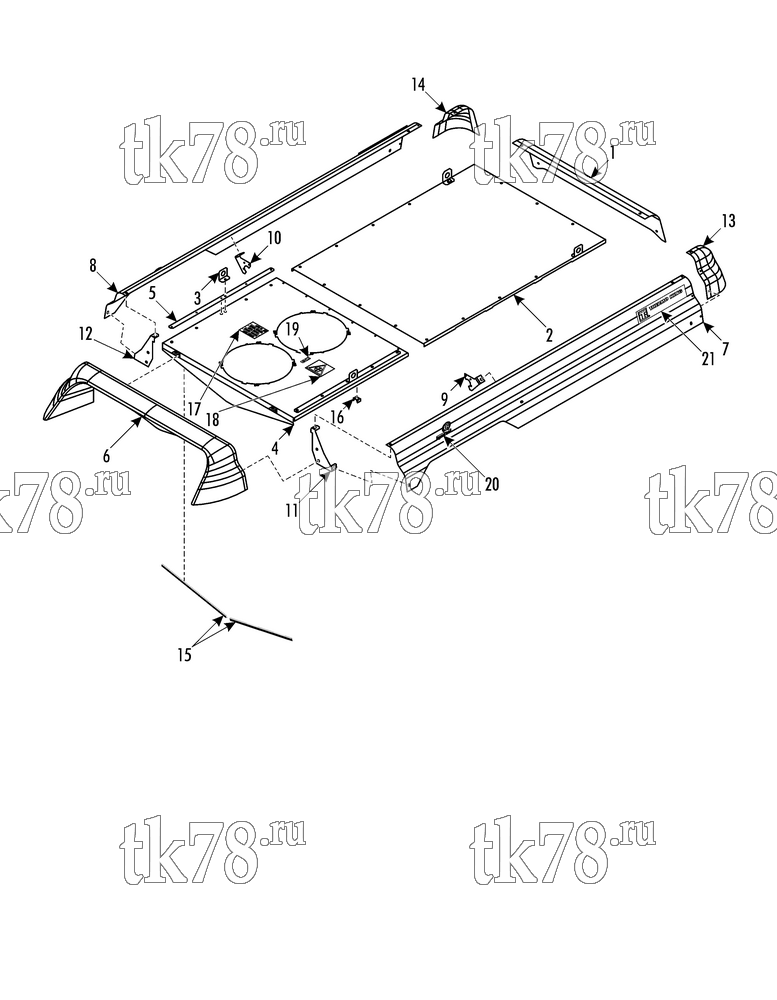

Установкa Thermo King SR-50C 1000 & 1004 схема COVERS – 265E5
Обновление от: 4/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6148 | COVER - rear | 1 | |
| 55-9368 | SCREW - cover | 4 | ||
| 51-871 | WASHER - sealing | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 2 | 98-9241 | COVER - assembly, evaporator | 1 | |
| 92-1515 | INSULATION - evaporator cover | 1 | ||
| 3 | 92-2430 | BRACKET - lifting | 4 | |
| 55-6994 | SCREW - bracket | 16 | ||
| 51-871 | WASHER - sealing | 16 | ||
| 55-9814 | NUT - captive, closed | 10 | ||
| 55-7373 | NUT - captive | 6 | ||
| 4 | 98-6151 | COVER - assembly, condenser | 1 | |
| 33-3719 | INSULATION | 2 | ||
| 55-5130 | RIVET - cover | 4 | ||
| 55-7373 | NUT - captive | 2 | ||
| 55-9443 | NUT - captive M6 hex | 8 | ||
| 5 | 92-2782 | SHEET - condenser | 2 | |
| 55-5047 | RIVET - sheet | 10 | ||
| 6 | 98-6153 | SPOILER - front | 1 | |
| 55-9368 | SCREW - spoiler | 2 | ||
| 51-871 | WASHER - sealing | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 7 | 98-6150 | SPOILER - roadside | 1 | |
| 8 | 98-6149 | SPOILER - curbside | 1 | |
| 55-9368 | SCREW - spoiler | 10 | ||
| 51-871 | WASHER - sealing | 10 | ||
| 55-7373 | NUT - captive | 10 | ||
| 9 | 92-1510 | HOLDER - spoiler (roadside) | 1 | |
| 10 | 92-1509 | HOLDER - spoiler (curbside) | 1 | |
| 55-3101 | RIVET - holder | 6 | ||
| 11 | 92-1514 | HOLDER - spoiler (roadside) | 1 | |
| 12 | 92-1513 | HOLDER - spoiler (curbside) | 1 | |
| 55-6994 | SCREW - holder | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 55-7172 | SCREW - holder | 2 | ||
| 51-628 | FLATWASHER | 4 | ||
| 55-7008 | LOCKNUT | 2 | ||
| 13 | 92-1511 | SPOILER - corner (roadside) | 1 | |
| 14 | 92-1512 | SPOILER - corner (curbside) | 1 | |
| 55-5130 | RIVET - corner | 6 | ||
| 55-7368 | FLATWASHER | 6 | ||
| 15 | 91-3809 | STRIP - neoprene | A/R | |
| 16 | 99-3427 | MOUNT - cable tie | 2 | |
| 55-5130 | RIVET - mount | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 17 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 18 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 19 | 99-4931 | NAMEPLATE - arrow | 1 | |
| 20 | 92-1307 | NAMEPLATE - IR (black letters) | 2 | |
| 21 | 91-7551 | NAMEPLATE - TK Logo | 2 |
