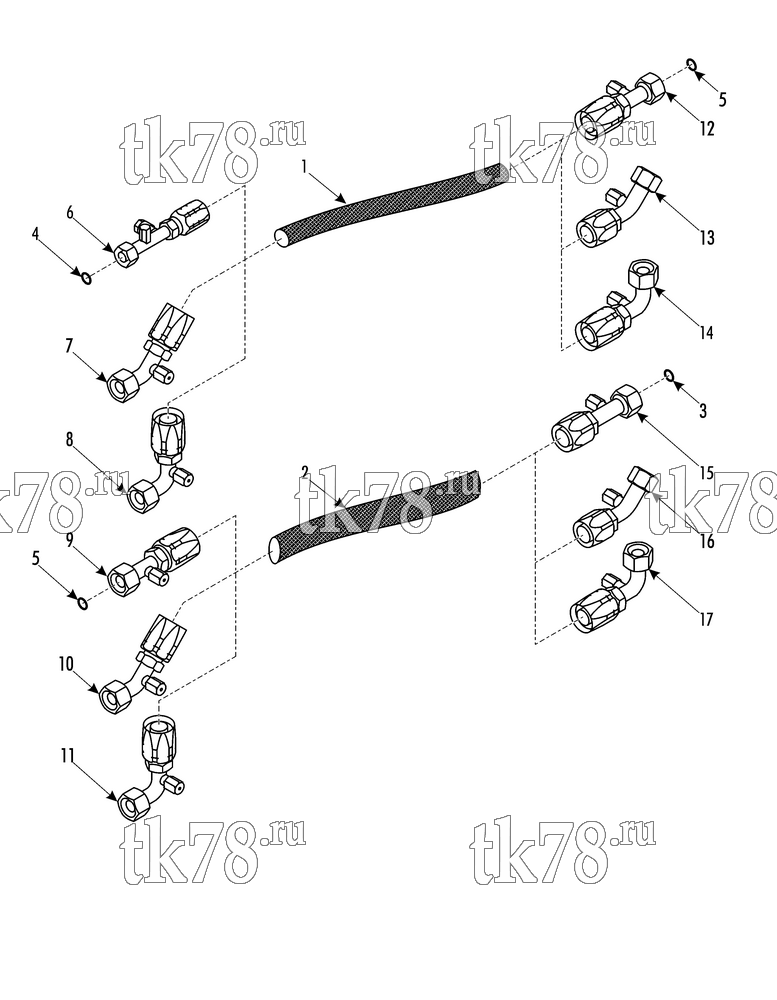

Установкa Thermo King SR-50C 1000 & 1004 схема KIT HOSE & FITTINGS TM16 / TM21 COMPRESSOR – 265E4
Обновление от: 3/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5118 | HOSE #10, R134a | A/R | |
| 2 | 61-4769 | HOSE #16, R134a | A/R | |
| 3 | 33-2847 | O-RING #16 | A/R | |
| 4 | 33-2846 | O-RING #10 | A/R | |
| 5 | 33-2848 | O-RING #12 | A/R | |
| 6 | 61-5587 | FITTING - straight (#8 ftg, #10 hose) | 1 | |
| 7 | 61-6367 | FITTING - 45 degree (#8 ftg, #10 hose) | 1 | |
| 8 | 61-6364 | FITTING - 90 degree (#8 ftg, #10 hose) | 1 | |
| 9 | 61-6363 | FITTING - straight (#10 ftg, #16 hose) | 1 | |
| 10 | 61-6369 | FITTING - 45 degree (#10 ftg, #16 hose) | 1 | |
| 11 | 61-6366 | FITTING - 90 degree (#10 ftg, #16 hose) | 1 | |
| 12 | 61-6362 | FITTING - straight (#10 ftg, #10 hose) | 1 | |
| 13 | 61-6368 | FITTING - 45 degree (#10 ftg, #10 hose) | 1 | |
| 14 | 61-6365 | FITTING - 90 degree (#10 ftg, #10 hose) | 1 | |
| 15 | 61-5543 | FITTING - straight (#12 ftg, #16 hose) | 1 | |
| 16 | 61-5545 | FITTING - 45 degree (#12 ftg, #16 hose) | 1 | |
| 17 | 61-5205 | FITTING - 90 degree (#12 ftg, #16 hose) | 1 |
