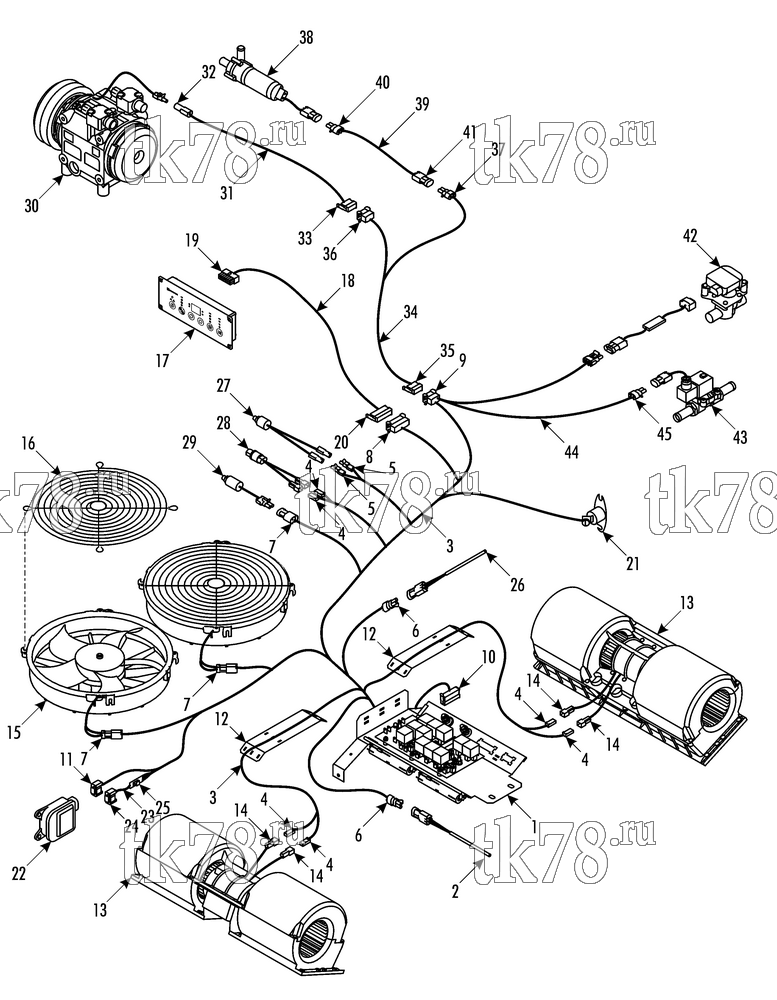

Установкa Thermo King SR-50C 1000 & 1004 схема ELECTRICAL COMPONENTS (1000/1004, 12V/24V) – 265E0
Обновление от: 4/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control 12V (see 265F1) | 1 | |
| NSS | PANEL - control 24V (see 265F2) | 1 | ||
| 55-7172 | SCREW - panel | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 51-628 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 2 | 41-4157 | SENSOR - temperature | 1 | |
| 3 | 41-4337 | HARNESS - control panel (12V) | 1 | |
| 41-4336 | HARNESS - control panel (24V) | 1 | ||
| 4 | 44-6381 | CONNECTOR - female (1 pin) | 6 | |
| 5 | 44-7327 | CONNECTOR - tower (1 pin) | 2 | |
| 6 | 44-5838 | CONNECTOR - tower (black, 2 pin) | 2 | |
| 7 | 44-5835 | CONNECTOR - shroud (black, 2 pin) | 3 | |
| 8 | 41-2772 | CONNECTOR - male (18 pin) | 1 | |
| 9 | 41-4054 | CONNECTOR - male (10 pin) | 1 | |
| 10 | 41-3856 | CONNECTOR - female (18 pin) | 1 | |
| 11 | 41-3288 | CONNECTOR - female (6 pin) | 1 | |
| 12 | 92-1534 | BRACKET - harness | 2 | |
| 13 | 78-1259 | BLOWER - evaporator (12VDC) | 2 | |
| 78-1258 | BLOWER - evaporator (24VDC) | 2 | ||
| 55-7696 | SCREW - blower | 12 | ||
| 55-7404 | LOCKWASHER | 12 | ||
| 55-7866 | NUT - captive | 12 | ||
| 14 | 44-6264 | CONNECTOR - male (1 pin) | 4 | |
| 15 | 78-1408 | FAN - condenser (12VDC) | 2 | |
| 78-1344 | FAN - condenser (24VDC) | 2 | ||
| 16 | 98-5425 | GUARD - fan | 2 | |
| 55-7372 | SCREW - guard | 8 | ||
| 55-9190 | LOCKWASHER | 8 | ||
| 55-9443 | NUT - captive | 8 | ||
| 17 | 41-7211 | ClimaAIRE I D | 1 | |
| 18 | 41-5233 | HARNESS - CP x DP ClimaAIRE I (6 m) | 1 | |
| 41-4998 | HARNESS - CP x DP ClimaAIRE I (8 m) | 1 | ||
| 41-5234 | HARNESS - CP x DP ClimaAIRE I (10 m) | 1 | ||
| 41-4313 | HARNESS - CP x DP ClimaAIRE I (12 m) | 1 | ||
| 41-4999 | HARNESS - CP x DP ClimaAIRE I (14 m) | 1 | ||
| 41-5232 | HARNESS - CP x DP ClimaAIRE I (16 m) | 1 | ||
| 41-4512 | HARNESS - CP x DP ClimaAIRE I (18 m) | 1 | ||
| 41-7322 | HARNESS - CP x DP ClimaAIRE I D (6 m) | 1 | ||
| 41-7321 | HARNESS - CP x DP ClimaAIRE I D (8 m) | 1 | ||
| 41-7320 | HARNESS - CP x DP ClimaAIRE I D (10 m) | 1 | ||
| 41-7319 | HARNESS - CP x DP ClimaAIRE I D (12 m) | 1 | ||
| 41-7318 | HARNESS - CP x DP ClimaAIRE I D (14 m) | 1 | ||
| 41-7317 | HARNESS - CP x DP ClimaAIRE I D (16 m) | 1 | ||
| 41-7316 | HARNESS - CP x DP ClimaAIRE I D (18 m) | 1 | ||
| 19 | 41-661 | CONNECTOR - in-line (14 pin, male) | 1 | |
| 20 | 41-3856 | CONNECTOR - female (18 pin) | 1 | |
| 21 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 55-7664 | SCREW - switch | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 22 | 41-4315 | SERVOMOTOR | 1 | |
| 23 | 41-9393 | HARNESS - servomotor (24V version) | 1 | |
| 24 | 41-3288 | CONNECTOR - female (6 pin) | 1 | |
| 25 | 41-8727 | CONVERTER - 24VDC/12VDC | 1 | |
| 26 | 41-4157 | SENSOR - temperature | 1 | |
| 27 | 41-1501 | SWITCH - high pressure cutout | 1 | |
| 28 | 41-4309 | SWITCH - low pressure cutout | 1 | |
| 29 | 41-5220 | SWITCH - condenser pressure | 1 | |
| 30 | NSS | COMPRESSOR | 1 | |
| 31 | 41-7625 | HARNESS - CP x compressor (8 m) | 1 | |
| 41-7624 | HARNESS - CP x compressor (12 m) | 1 | ||
| 41-7623 | HARNESS - CP x compressor (14 m) | 1 | ||
| 41-7622 | HARNESS - CP x compressor (18 m) | 1 | ||
| 32 | 44-7330 | CONNECTOR - shroud (1 pin) | 1 | |
| 33 | 41-3855 | CONNECTOR - female (10 pin) | 1 | |
| 34 | 41-4314 | HARNESS - extension, CP x compressor | 1 | |
| 35 | 41-3855 | CONNECTOR - female (10 pin) | 1 | |
| 36 | 41-4054 | CONNECTOR - male (10 pin) | 1 | |
| 37 | 44-5838 | CONNECTOR - tower (black, 2 pin) | 1 | |
| 38 | 41-2233 | PUMP - boost, water (12VDC) | 1 | |
| 39 | 41-6152 | HARNESS - boost pump (7.6 m) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m) | 1 | ||
| 41-4143 | HARNESS - boost pump (14m) | 1 | ||
| 40 | 44-5838 | CONNECTOR - tower (black, 2 pin) | 1 | |
| 41 | 44-5835 | CONNECTOR - shroud (black, 2 pin) | 1 | |
| 42 | NSS | WATER VALVE KIT (see 203E6) | 1 | |
| 43 | NSS | WATER VALVE KIT (see 265F6) | 1 | |
| 44 | 41-5390 | HARNESS - water valve (10 m, Kit 720451) | 1 | |
| 41-5389 | HARNESS - water valve (20 m, Kit 720450) | 1 | ||
| 45 | 44-5838 | CONNECTOR - tower (black, 2 pin) | 1 |
