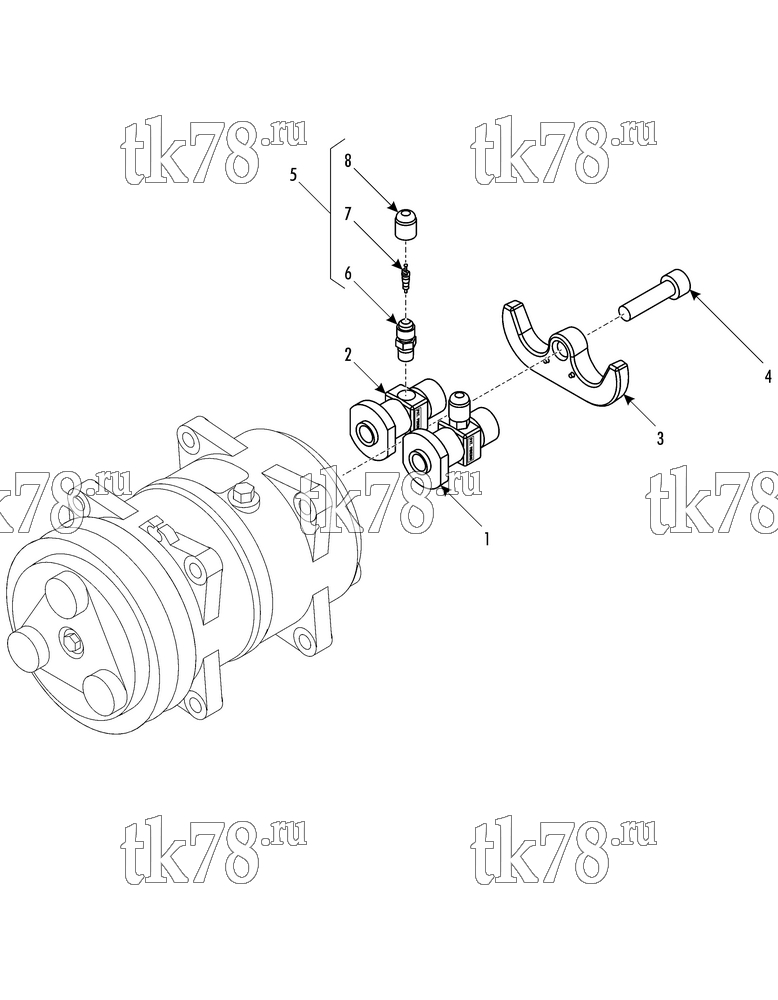

Установкa Thermo King SR-50C 1000 & 1004 схема KIT COMPRESSOR MANIFOLD (Kit 718121) – 263G7
Обновление от: 2/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 20-151A | MANIFOLD - suction | 1 | |
| 2 | 20-151B | MANIFOLD - discharge | 1 | |
| 3 | 22-1121 | BRACKET - manifold | 1 | |
| 4 | 55-8648 | SCREW - bracket | 1 | |
| 55-7000 | LOCKWASHER | 1 | ||
| 5 | 11-2886 | VALVE - assembly | 2 | |
| 6 | 55-7213 | BODY - valve | 1 | |
| 7 | 11-7777 | VALVE | 1 | |
| 8 | 55-5672 | CAP - valve | 1 |
