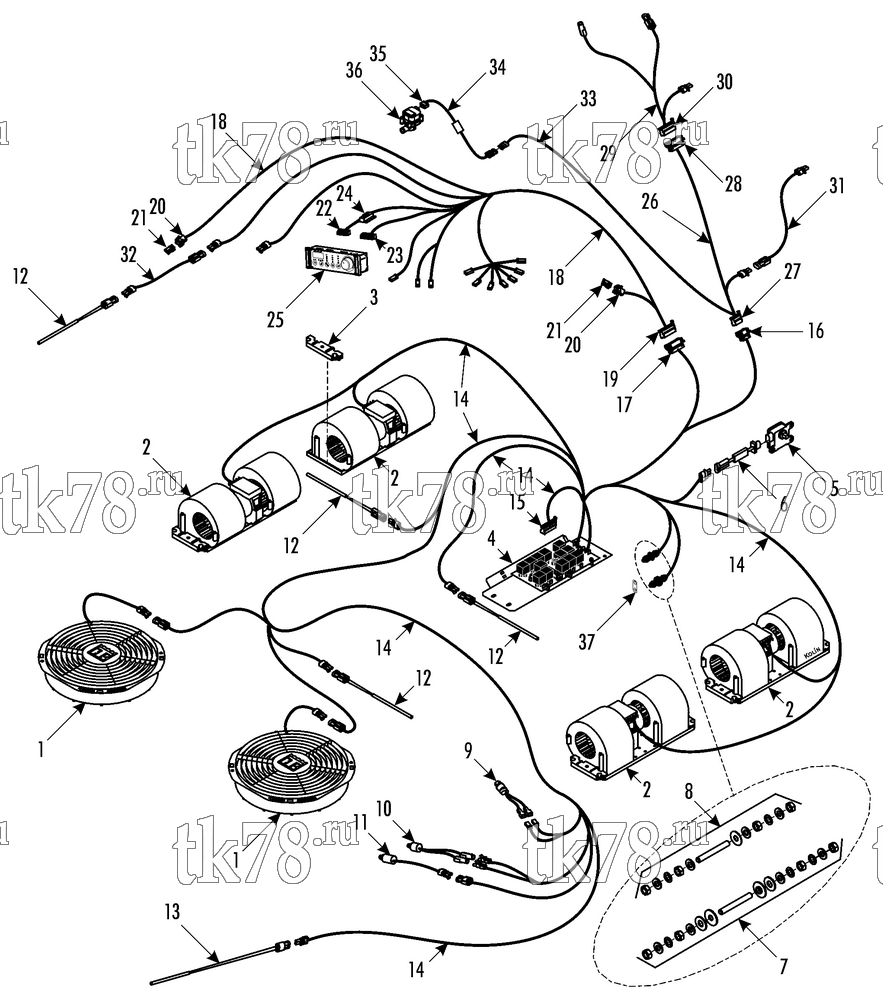

Установкa Thermo King SR-500 схема ELECTRICAL COMPONENTS (ClimaAIRE II) – 216D3
Обновление от: 10/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN (24V, see 216C8) | 2 | |
| 78-1493 | FAN (12V, see 216C8) | 2 | ||
| 2 | 78-1364 | BLOWER (24V) | 4 | |
| 41-1717 | BLOWER (12V) | 4 | ||
| 3 | 51-259 | HOLDER - blower | 8 | |
| 55-7372 | SCREW - holder | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 51-290 | NUT - captive | 8 | ||
| 4 | NSS | CONTROL PANEL (24V, see 216D5) | 1 | |
| NSS | CONTROL PANEL (12V, see 216D6) | 1 | ||
| 5 | 41-3255 | SERVOMOTOR (units w/ fresh air) | 1 | |
| 6 | 41-7190 | CONTROLLER - servomotor (units w/ fresh air) | 1 | |
| 7 | 55-9367 | STUD - positive (M8) | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8631 | WASHER - nylon | 1 | ||
| 8 | 55-9367 | STUD - negative (M8) | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 55-8568 | LOCKWASHER | 1 | ||
| 9 | 41-4309 | SWITCH - lpco | 1 | |
| 10 | 41-1501 | SWITCH - hpco | 1 | |
| 11 | 41-5220 | SWITCH - pressure | 1 | |
| 12 | 41-4157 | SENSOR - temperature | 4 | |
| 13 | 41-4335 | SENSOR - temperature | 1 | |
| 14 | 41-7621 | HARNESS - SR-500 (for connectors see 115D14) | 1 | |
| 15 | 41-3856 | CONNECTOR (female, 18-pin) | 1 | |
| 16 | 41-4054 | CONNECTOR (male, 10-pin) | 1 | |
| 17 | 41-2772 | CONNECTOR (male, 18-pin) | 1 | |
| 44-3228 | DIODE - rectifier | 1 | ||
| 18 | 41-6109 | HARNESS - control panel to ClimaAIRE II (18 m, for connectors see 115D14) | 1 | |
| 41-6108 | HARNESS - control panel to ClimaAIRE II (15 m, for connectors see 115D14) | 1 | ||
| 41-6107 | HARNESS - control panel to ClimaAIRE II (12 m, for connectors see 115D14) | 1 | ||
| 41-6106 | HARNESS - control panel to ClimaAIRE II (9 m, for connectors see 115D14) | 1 | ||
| 19 | 41-3856 | CONNECTOR (female, 18-pin) | 1 | |
| 20 | 41-4949 | CONNECTR (male, 4-pin) | 2 | |
| 21 | 41-2769 | CONNECTOR (female, 4-pin) | 2 | |
| 22 | 41-661 | CONNECTOR - in-line (14-pin) | 1 | |
| 23 | 41-650 | CONNECTOR - in-line (18-pin) | 1 | |
| 24 | 41-3968 | BOARD - pc | 1 | |
| 25 | 41-4658 | ClimaAIRE II - driver panel (see 184F9) | 1 | |
| 26 | 41-4314 | HARNESS - extension, control panel to compressor (8 m, for connectors see 115D14) | 1 | |
| 27 | 41-3855 | CONNECTOR (female, 10-pin) | 1 | |
| 28 | 41-4054 | CONNECTOR (male, 10-pin) | 1 | |
| 29 | 41-4997 | HARNESS - control panel to compressor (18 m, w/ excitation, for connectors see 115D14) | 1 | |
| 41-4996 | HARNESS - control panel to compressor (14 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4312 | HARNESS - control panel to compressor (12 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4995 | HARNESS - control panel to compressor (8 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-7622 | HARNESS - control panel to compressor (18 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7623 | HARNESS - control panel to compressor (14 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7624 | HARNESS - control panel to compressor (12 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7625 | HARNESS - control panel to compressor (8 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 30 | 41-3855 | CONNECTOR (female, 10-pin) | 1 | |
| 31 | 41-4143 | HARNESS - boost pump (14 m, for connectors see 115D14) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m, for connectors see 115D14) | 1 | ||
| 41-6152 | HARNESS - boost pump (7.6 m, for connectors see 115D14) | 1 | ||
| 32 | 41-5228 | HARNESS - RST (for connectors see 115D14) | 1 | |
| 33 | 41-6792 | HARNESS - valve (10 m, for connectors see 115D14) | 1 | |
| 41-6793 | HARNESS - valve (20 m, for connectors see 115D14) | 1 | ||
| 34 | 41-6767 | HARNESS - servovontroller (for connectors see 115D14) | 1 | |
| 35 | 41-3288 | CONNECTOR (female, 6-pin) | 1 | |
| 36 | 41-6592 | VALVE - water (2-way) | 1 | |
| 41-5649 | VALVE - water (3-way) | 1 | ||
| 37 | 91-7509 | NAMEPLATE - Positive/Negative | 1 |
