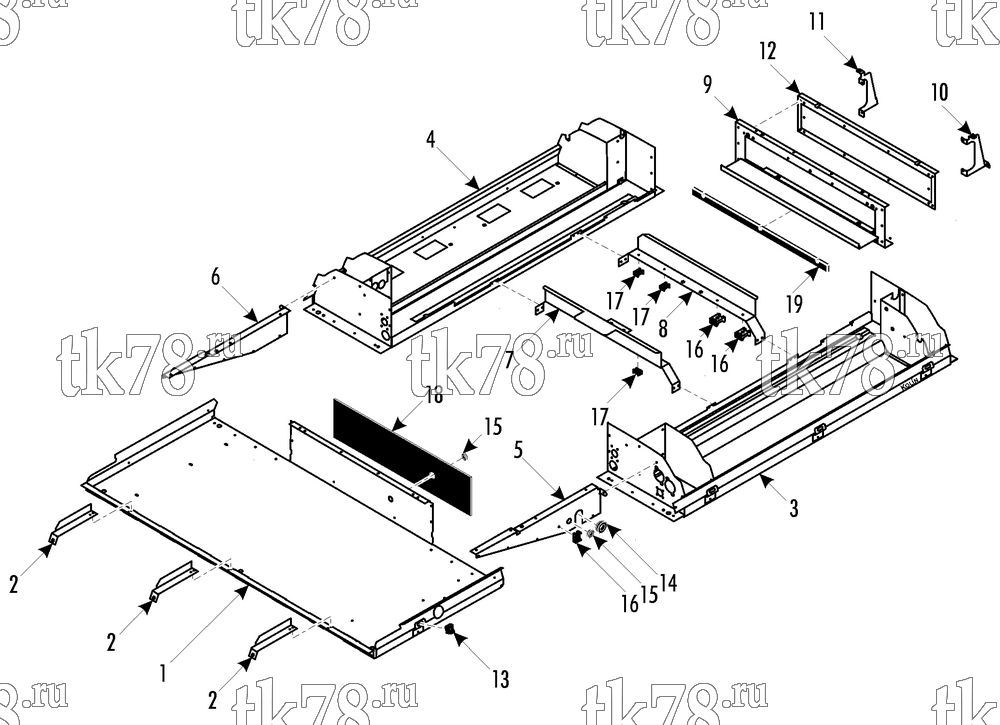

Установкa Thermo King SR-500 схема FRAME & COMPONENTS (NARROW) – 216C9
Обновление от: 9/25/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7673 | FRAME - condenser | 1 | |
| 2 | 92-5979 | BRACKET | 3 | |
| 55-5130 | RIVET - frame & bracket | A/R | ||
| 3 | NSS | EVAPORATOR BASE 1 (see 215H0) | 1 | |
| 4 | NSS | EVAPORATOR BASE 2 (see 190E0) | 1 | |
| 5 | 98-7642 | BRACKET - condenser | 1 | |
| 6 | 98-7643 | BRACKET - condenser | 1 | |
| 7 | 98-7674 | BEAM | 1 | |
| 8 | 98-7675 | BEAM | 1 | |
| 9 | 98-7676 | BACKWALL - assembly | 1 | |
| 10 | 92-6038 | BRACKET - spoiler (units w/ fresh air) | 1 | |
| 92-5980 | BRACKET - spoiler (units w/o fresh air) | 1 | ||
| 11 | 92-6039 | BRACKET - spoiler (units w/ fresh air) | 1 | |
| 92-5981 | BRACKET - spoiler (units w/o fresh air) | 1 | ||
| 12 | 98-7647 | PLATE (units w/o fresh air) | 1 | |
| 55-5130 | RIVET - brackets, beams, backwall & plate | A/R | ||
| 13 | 55-6997 | NUT - captive | 2 | |
| 14 | 33-452 | GROMMET (0.875 id) | 1 | |
| 15 | 33-1809 | GROMMET (0.500 id) | 2 | |
| 16 | 99-3281 | MOUNT - bandwrap | 3 | |
| 55-5130 | RIVET - mount | 3 | ||
| 17 | 99-3427 | MOUNT - bandwrap | 3 | |
| 55-3010 | RIVET - mount | 3 | ||
| 55-2330 | BANDWRAP - black | 6 | ||
| 18 | 92-6040 | INSULATION | 1 | |
| 19 | 99-5966 | STRIP - neoprene | A/R |
