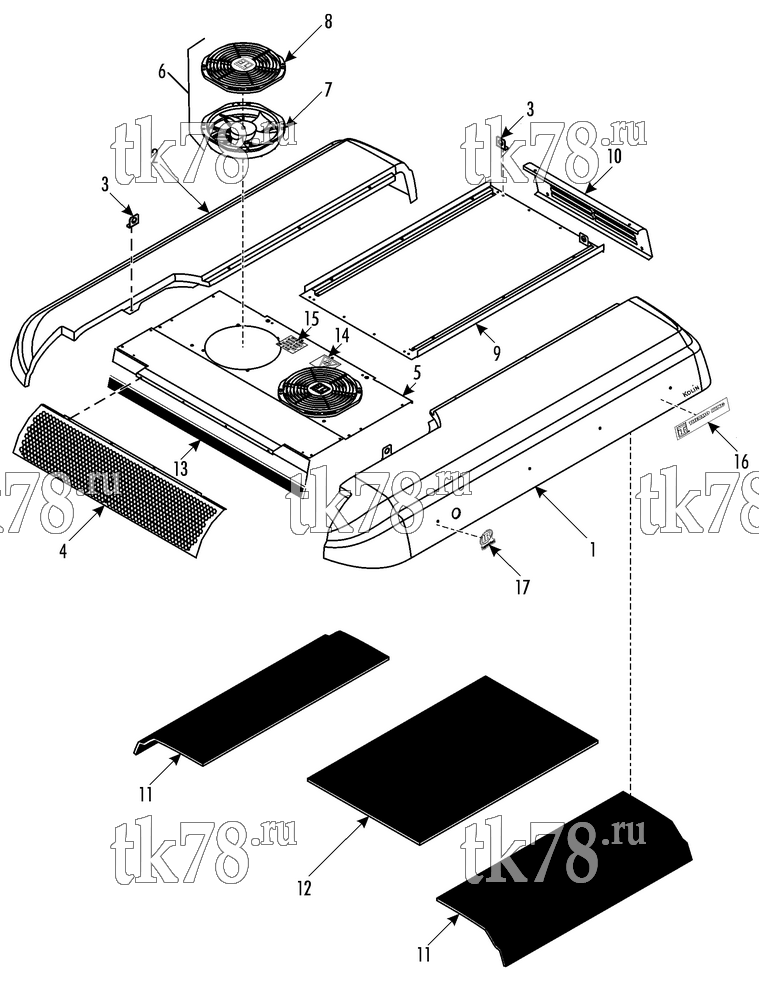

Установкa Thermo King SR-500 схема COVER – 216C8
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7663 | COVER - left side (flatter roof radius) | 1 | |
| 98-7664 | COVER - left side (smaller roof radius) | 1 | ||
| 2 | 98-7665 | COVER - right side (flatter roof radius) | 1 | |
| 98-7666 | COVER - right side (smaller roof radius) | 1 | ||
| 3 | 92-2430 | BRACKET | 4 | |
| 55-6994 | SCREW - covers & brackets | 10 | ||
| 51-871 | WASHER | 10 | ||
| 51-290 | NUT | 10 | ||
| 55-9368 | SCREW - becher | 8 | ||
| 51-871 | WASHER | 8 | ||
| 4 | 98-7667 | COVER - condenser (narrow unit) | 1 | |
| 98-7637 | COVER - condenser (wide unit) | 1 | ||
| 55-7664 | SCREW - cover | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 51-190 | NUT - captive | 3 | ||
| 5 | 98-7668 | COVER - fans (narrow unit) | 1 | |
| 98-7671 | COVER - fans (wide unit) | 1 | ||
| 55-7664 | SCREW - cover (M4) | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 51-190 | NUT - captive | 4 | ||
| 55-6994 | SCREW - cover (M6) | A/R | ||
| 55-7075 | FLATWASHER | A/R | ||
| 51-290 | NUT - captive | A/R | ||
| 55-5130 | RIVET - cover | A/R | ||
| 6 | 78-1414 | FAN - assembly (24V) | 2 | |
| 78-1493 | FAN - assembly (12V) | 2 | ||
| 7 | 78-1414 | FAN (24V) | 2 | |
| 78-1494 | FAN (12V) | 2 | ||
| 8 | 78-1416 | GUARD - fan | 1 | |
| 51-1243 | SCREW | 1 | ||
| 55-7372 | SCREW - fans | 8 | ||
| 55-9190 | LOCKWASHER | 8 | ||
| 51-290 | NUT - captive | 8 | ||
| 9 | 98-7669 | COVER - evaporator (narrow unit) | 1 | |
| 98-7672 | COVER - evaporator (wide unit) | 1 | ||
| 55-5130 | RIVET - cover | A/R | ||
| 10 | 98-7670 | COVER - rear (narrow unit) | 1 | |
| 98-7640 | COVER - rear (wide unit) | 1 | ||
| 55-9368 | SCREW - cover | 4 | ||
| 51-871 | WASHER | 4 | ||
| 51-290 | NUT - captive | 4 | ||
| 11 | 92-6035 | INSULATION - covers | 2 | |
| 12 | 92-6036 | INSULATION - cover (narrow unit) | 1 | |
| 92-6037 | INSULATION - cover (wide unit) | 1 | ||
| 13 | 92-3185 | STRIP - neoprene | A/R | |
| 14 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 15 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 16 | 91-7551 | NAMEPLATE - TK logo | 2 | |
| 17 | 92-1307 | NAMEPLATE - IR logo | 2 |
