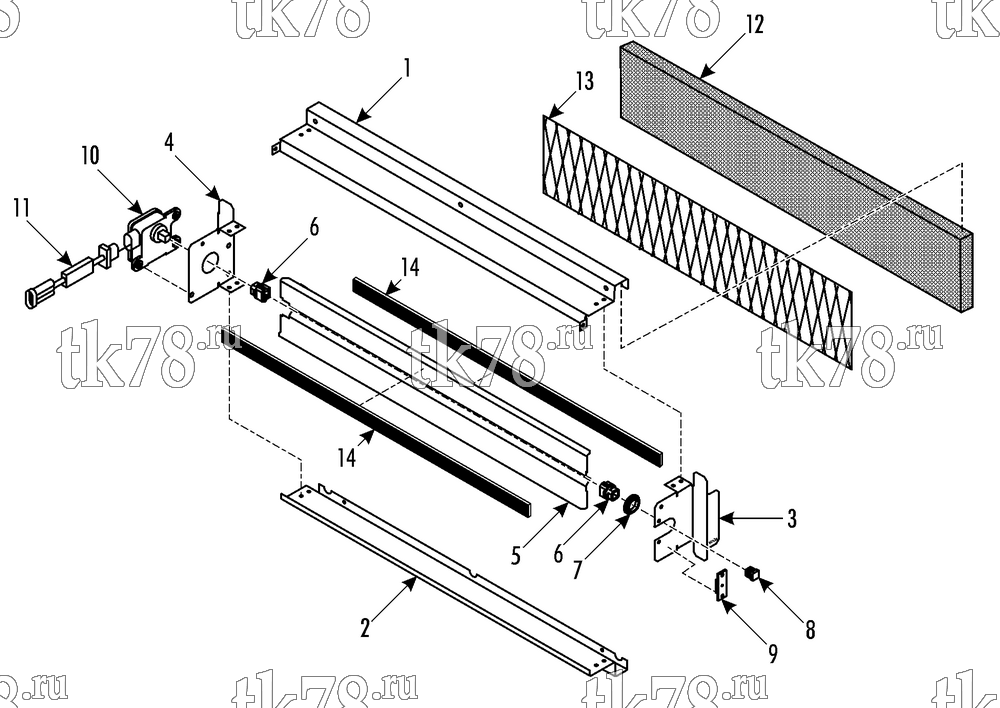

Установкa Thermo King SR-500 схема FRESH AIR DAMPER (007246) – 216A3
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7651 | PLATE | 1 | |
| 2 | 98-7652 | PLATE | 1 | |
| 55-7340 | SCREW - plates | 6 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 51-1610 | FLATWASHER | 6 | ||
| 55-9573 | NUT - captive, closed | 6 | ||
| 3 | 92-5997 | PLATE | 1 | |
| 4 | 92-5998 | PLATE | 1 | |
| 55-5130 | RIVET - plates | 8 | ||
| 5 | 98-7653 | FLAP | 1 | |
| 6 | 77-2746 | BEARING - plastic | 2 | |
| 7 | 92-5226 | BEARING - sleeve, plastic | 1 | |
| 8 | 51-261 | PLUG - plastic | 1 | |
| 9 | 92-5715 | PLUG - assembly | 1 | |
| 55-5130 | RIVET - plug | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 10 | 41-3255 | SERVOMOTOR | 1 | |
| 55-7664 | SCREW - servomotor | 3 | ||
| 55-7369 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 11 | 41-7190 | CONTROLLER - servomotor | 1 | |
| 12 | 92-5999 | FILTER | 1 | |
| 13 | 98-7654 | MESH | 1 | |
| 14 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R |
