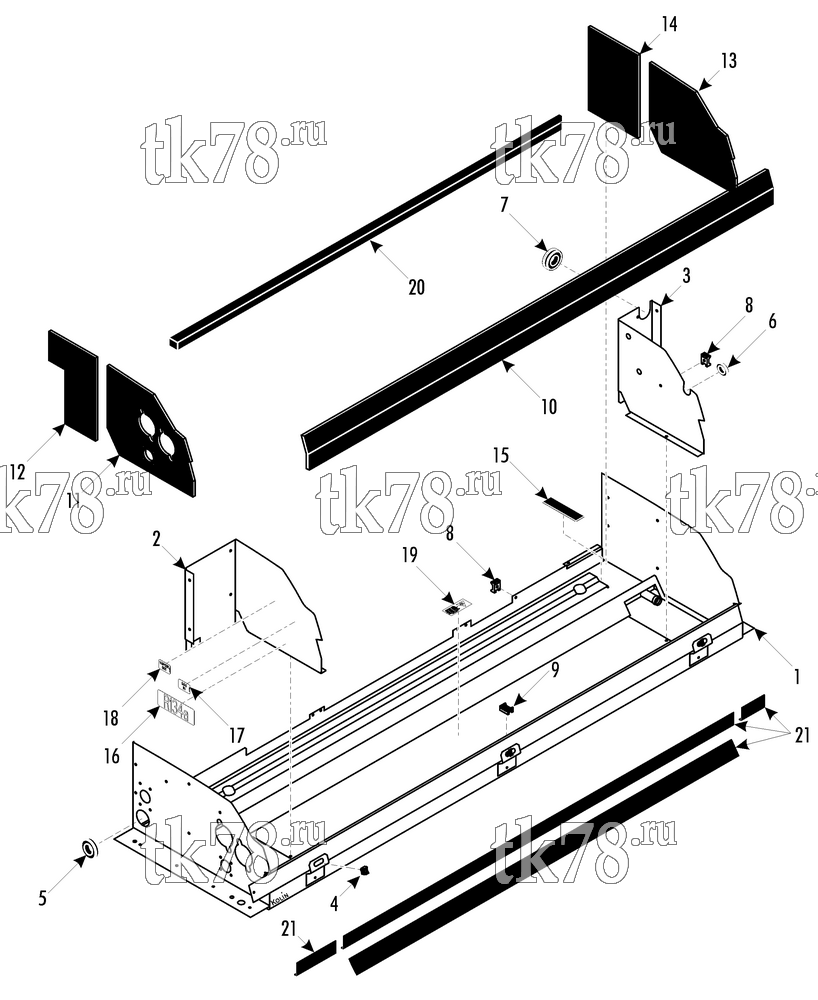

Установкa Thermo King SR-500 схема EVAPORATOR BASE 1 – 215H0
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7648 | BASE - evaporator | 1 | |
| 55-3010 | RIVET - blind | 4 | ||
| 2 | 92-5984 | BOX | 1 | |
| 3 | 92-5985 | BOX | 1 | |
| 55-5130 | RIVET - base & boxes | A/R | ||
| 4 | 55-6997 | NUT - captive | 3 | |
| 5 | 33-452 | GROMMET (0.875 id) | 1 | |
| 6 | 33-1809 | GROMMET (0.500 id) | 1 | |
| 7 | 33-2110 | GROMMET (1.00 id) | 1 | |
| 8 | 99-3281 | MOUNT - bandwrap | 2 | |
| 55-5130 | RIVET - mount | 2 | ||
| 56-2330 | BANDWRAP - black | 2 | ||
| 9 | 99-3427 | MOUNT - bandwrap | 1 | |
| 55-3010 | RIVET - mount | 1 | ||
| 56-2330 | BANDWRAP - black | 1 | ||
| 10 | 92-5986 | INSULATION | 1 | |
| 11 | 92-5987 | INSULATION | 1 | |
| 12 | 92-5988 | INSULATION | 1 | |
| 13 | 92-5989 | INSULATION | 1 | |
| 14 | 92-5990 | INSULATION | 1 | |
| 15 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 16 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 17 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 18 | 91-8536 | NAMEPLATE - Vapour Out | 1 | |
| 19 | 91-7511 | NAMEPLATE - Fan | 1 | |
| 20 | 92-8649 | FOAM - drain (units w/o heater) | 1 | |
| 92-8650 | FOAM - drain (units w/ heater) | 1 | ||
| 21 | 33-2420 | STRIP - neoprene | A/R |
