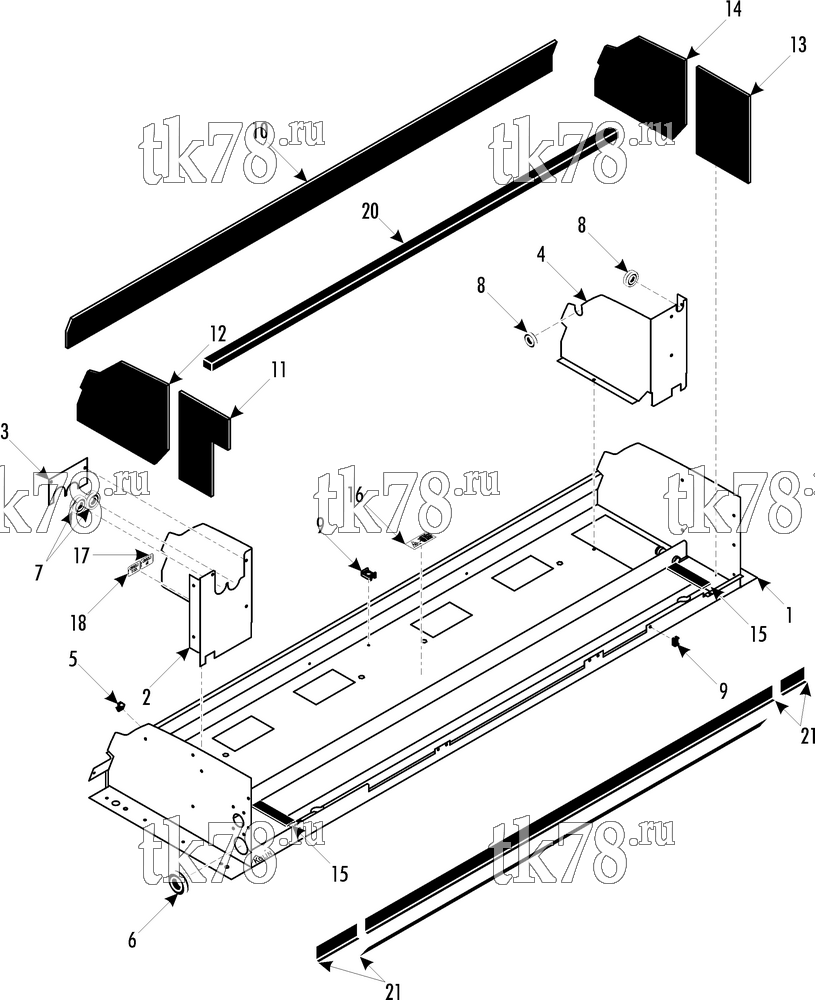

Установкa Thermo King SR-500 схема EVAPORATOR BASE 2 – 190E0
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7649 | BASE - evaporator | 1 | |
| 55-3010 | RIVET - blind | 4 | ||
| 2 | 92-5991 | BOX | 1 | |
| 3 | 92-5992 | PLATE (unit w/ heater) | 1 | |
| 92-5996 | PLATE (unit w/o heater) | 1 | ||
| 4 | 92-5993 | BOX | 1 | |
| 55-5130 | RIVET - base & boxes | A/R | ||
| 5 | 55-6997 | NUT - captive | 3 | |
| 6 | 33-452 | GROMMET (0.875 id) (unit w/ heater) | 1 | |
| 7 | 33-572 | GROMMET (0.750 id) (unit w/ heater) | 2 | |
| 8 | 33-1809 | GROMMET (0.500 id) | 2 | |
| 9 | 99-3427 | MOUNT - bandwrap | 2 | |
| 55-3010 | RIVET - mount | 2 | ||
| 56-2330 | BANDWRAP - black | 2 | ||
| 10 | 92-5986 | INSULATION | 1 | |
| 11 | 92-5994 | INSULATION | 1 | |
| 12 | 92-5989 | INSULATION | 1 | |
| 13 | 92-5990 | INSULATION | 1 | |
| 14 | 92-5995 | INSULATION | 1 | |
| 15 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 16 | 91-7511 | NAMEPLATE - Fan | 1 | |
| 17 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 18 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 20 | 92-8649 | FOAM - drain (units w/o heater) | 1 | |
| 92-8650 | FOAM - drain (units w/ heater) | 1 | ||
| 21 | 33-2420 | STRIP - neoprene | A/R |
