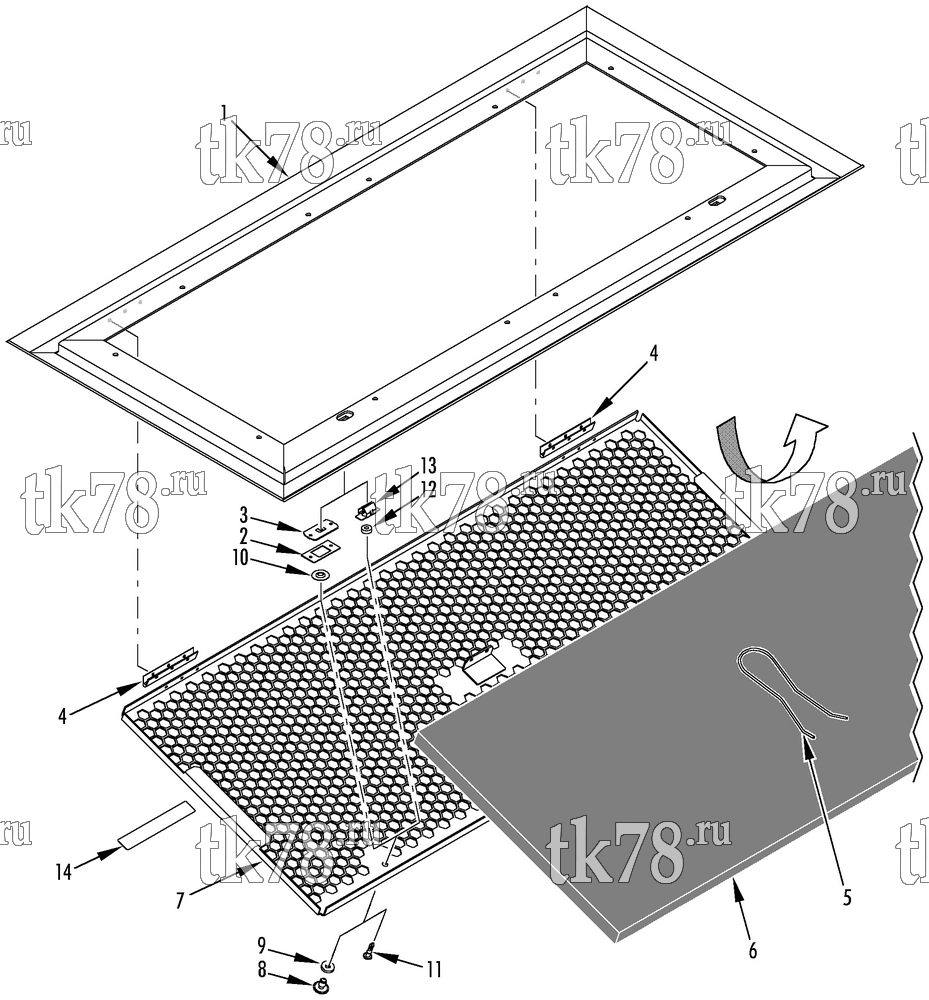

Установкa Thermo King SR-500 схема RETURN AIR GRILLE (KIT 818827) – 164B2
Обновление от: 9/25/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6117 | BASE - return air grille | 1 | |
| 2 | 91-7625 | PLATE - lock (before 7/04) | 2 | |
| 55-2012 | RIVET - plate (before 7/04) | 4 | ||
| 3 | 55-2074 | NUT - speed (before 7/04) | 2 | |
| 4 | 91-8903 | HINGE - grille | 2 | |
| 55-2012 | RIVET - hinge | 6 | ||
| 55-2270 | RIVET - hinge to frame | 6 | ||
| 5 | 91-9343 | CLIP - filter | 1 | |
| 6 | 11-9481 | FILTER - air | 1 | |
| 7 | 98-6116 | GRILLE | 1 | |
| 8 | 55-9283 | SCREW - lock (before 7/04) | 2 | |
| 9 | 91-7101 | BODY - lockscrew (before 7/04) | 2 | |
| 10 | 55-7112 | LOCKWASHER (before 7/04) | 2 | |
| 11 | 51-1127 | STUD - grille (7/04 & after) | 2 | |
| 12 | 33-4081 | GROMMET - stud (7/04 & after) | 2 | |
| 13 | 51-1128 | RECEPTACLE - stud (7/04 & after) | 2 | |
| 14 | 91-9638 | NAMEPLATE - TK | 1 |
