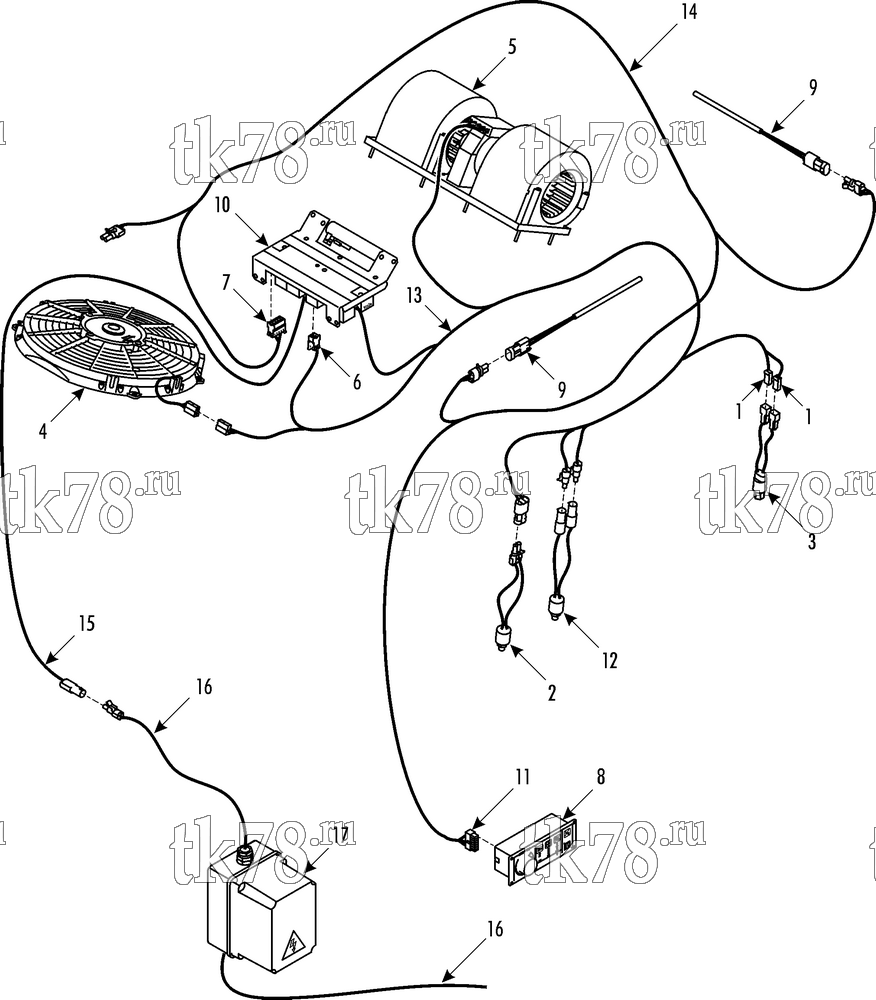

Установкa Thermo King SR-15 Electric схема ELECTRICAL COMPONENTS - 1000 (24V) – 184C2
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6381 | CONNECTOR (1-pin, female) | 2 | |
| 2 | 41-4308 | SWITCH - pressure (condenser fan) | 1 | |
| 3 | 41-4309 | SWITCH - lpco | 1 | |
| 44-6264 | CONNECTOR | 2 | ||
| 4 | 78-1022 | FAN - condenser (24V) | 1 | |
| 5 | 78-1364 | BLOWER (24V) | 1 | |
| 55-8723 | SCREW - blower | 8 | ||
| 55-8309 | FLATWASHER | 8 | ||
| 6 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 7 | 41-3855 | TERMINAL - connector (10-pin, female) | 1 | |
| 8 | 41-7211 | ClimaAIRE I - assembly | 1 | |
| 9 | 41-4157 | SENSOR - temperature | 2 | |
| 10 | NSS | PANEL - control (see 164C3) | 1 | |
| 11 | 41-661 | CONNECTOR - inline (14 terminal) | 1 | |
| 12 | 41-1501 | SWITCH - hpco | 1 | |
| 13 | 41-4449 | HARNESS - main (for connectors see grid 115D14) | 1 | |
| 14 | 41-5621 | HARNESS - unit to driver (for connectors see grid 115D14) | 1 | |
| 15 | 41-4448 | HARNESS - compressor (for connectors see grid 115D14) | 1 | |
| 16 | 41-5322 | HARNESS - 230VAC (for connectors see grid 115D14) | 1 | |
| 17 | NSS | PANEL - control (230VAC, see 184C3) | 1 |
