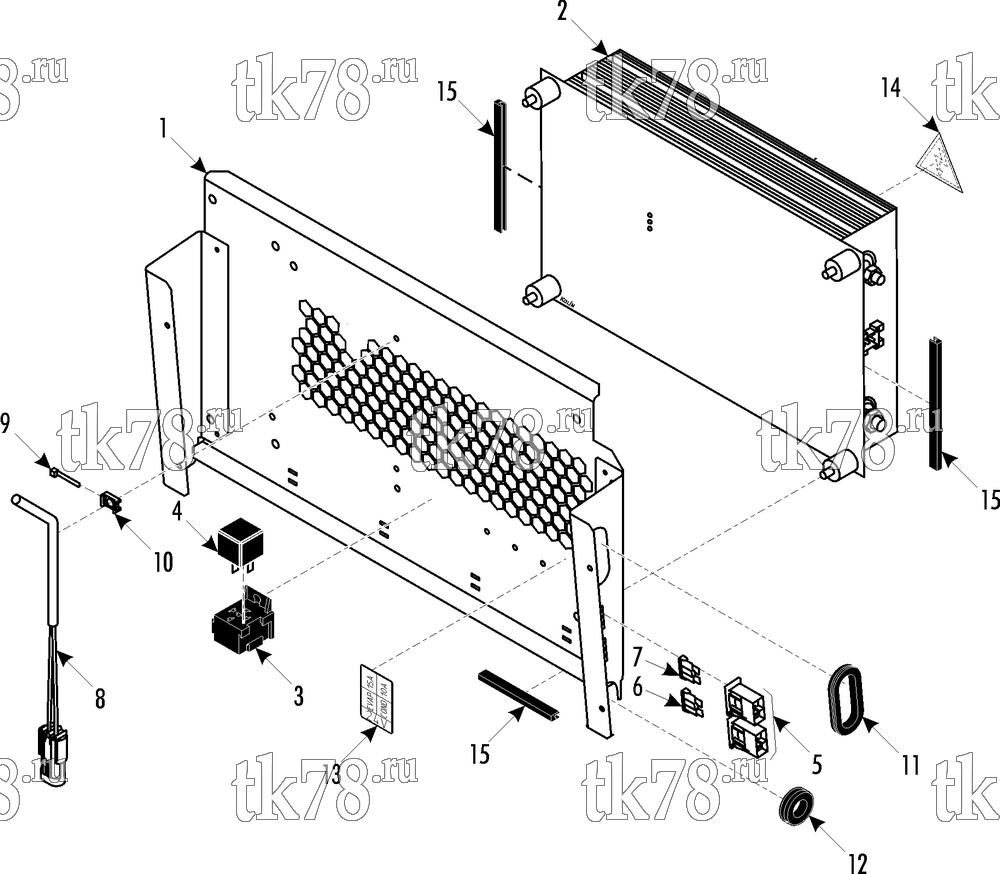

Установкa Thermo King SR-10R схема CONTROL PANEL – 227D5
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6697 | BRACKET - control panel | 1 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 2 | 45-2197 | INVERTER | 1 | |
| 92-6206 | MOUNT - vibration | 4 | ||
| 55-7042 | NUT - inverter | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 3 | 44-5537 | SOCKET - relay | 1 | |
| 55-2715 | RIVET - socket | 1 | ||
| 4 | 44-9392 | RELAY - mini plug (DPST) | 1 | |
| 5 | 41-4965 | HOLDER - fuse | 2 | |
| 6 | 44-9758 | FUSE (10 amp) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 7 | 44-9344 | FUSE (15 amp) | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-4157 | SENSOR - temperature | 1 | |
| 9 | 55-2332 | BANDWRAP | 2 | |
| 10 | 99-3427 | MOUNT - bandwrap | 2 | |
| 55-5130 | RIVET - mount | 2 | ||
| 11 | 33-1770 | GROMMET (1.312 id) | 1 | |
| 12 | 33-367 | GROMMET (0.625 id) | 1 | |
| 13 | 92-6698 | NAMEPLATE - Fuses | 1 | |
| 14 | 99-7834 | NAMEPLATE - Caution, High Voltage | 1 | |
| 15 | 92-3279 | STRIP - flange | A/R |
