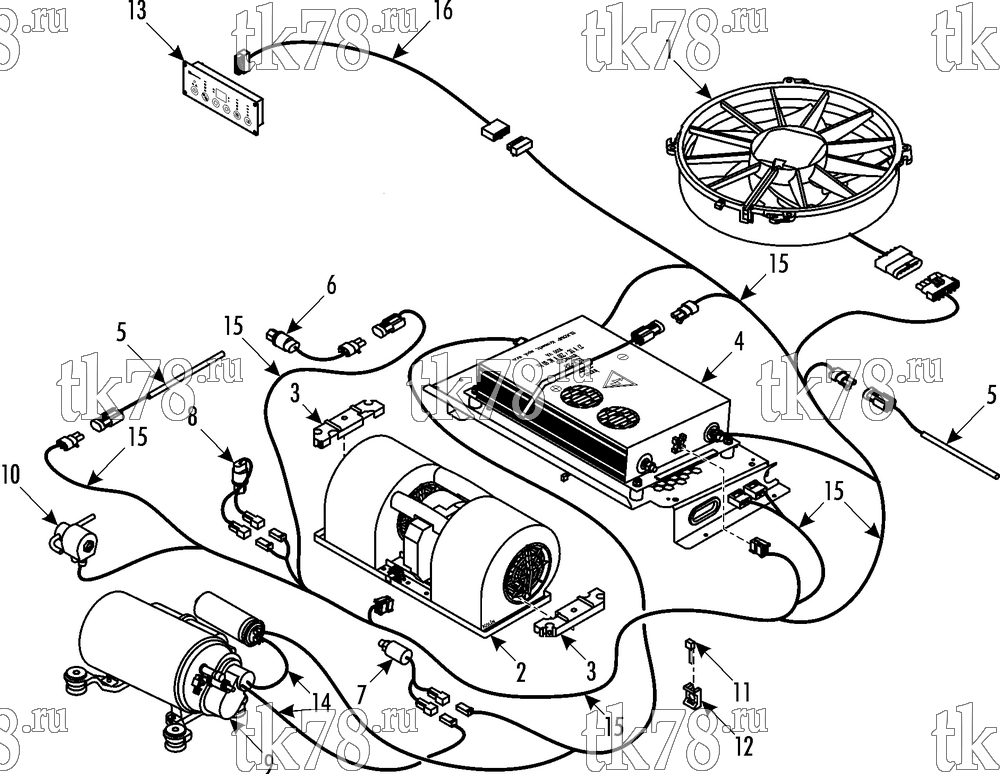

Установкa Thermo King SR-10R схема ELECTRICAL COMPONENTS – 227D4
Обновление от: 8/27/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1614 | FAN (see 227C0) | 1 | |
| 2 | 78-1552 | BLOWER | 1 | |
| 3 | 51-259 | HOLDER - blower | 2 | |
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 2 | ||
| 4 | NSS | CONTROL PANEL (see 227D5) | 1 | |
| 5 | 41-4157 | SENSOR - temperature | 2 | |
| 6 | 41-5865 | SWITCH - cps | 1 | |
| 7 | 41-5864 | SWITCH - hpco | 1 | |
| 8 | 41-5866 | SWITCH - lpco | 1 | |
| 9 | 102-878 | COMPRESSOR (see 227D3) | 1 | |
| 10 | 61-436 | VALVE - solenoid (see 227D2) | 1 | |
| 11 | 56-2330 | BANDWRAP | 1 | |
| 12 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 13 | 41-7211 | CLIMAAIRE I D | 1 | |
| 14 | 41-8054 | HARNESS - compressor | 1 | |
| 15 | 41-8055 | HARNESS - ClimaAIRE ID (for connectors see 115D14) | 1 | |
| 41-2767 | CONNECTOR (female, 6-pin) | 2 | ||
| 41-661 | CONNECTOR (male, 14-pin) | 1 | ||
| 16 | 41-8056 | HARNESS - extension (5 m) | 1 | |
| 41-661 | CONNECTOR (male, 14-pin) | 1 | ||
| 41-6160 | CONNECTOR (female, 14-pin) | 1 |
