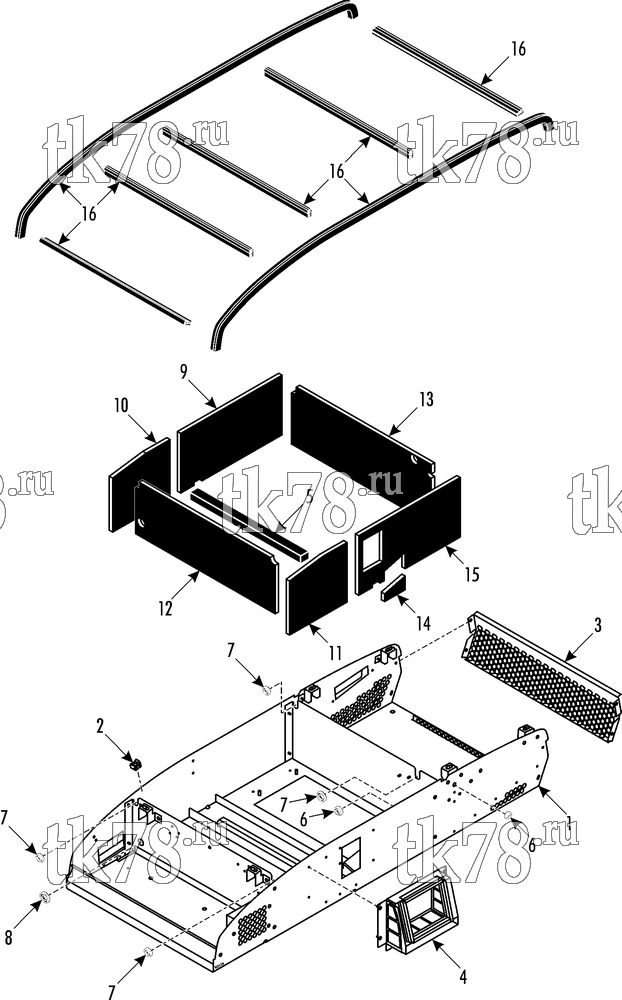

Установкa Thermo King SR-10R схема FRAME & INSULATIONS – 227D1
Обновление от: 11/2/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7957 | BASE | 1 | |
| 2 | 55-6997 | NUT - captive, cover | 6 | |
| 3 | 98-6810 | GRILLE - condenser | 1 | |
| 55-7340 | SCREW - grille | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-8375 | NUT - captive | 4 | ||
| 4 | 92-6687 | FRESH AIR - complete | 1 | |
| 92-6688 | FILTER | 1 | ||
| 5 | 92-3589 | PAD - drain | 1 | |
| 6 | 33-1013 | GROMMET (0.281 id) | 2 | |
| 7 | 33-282 | GROMMET (0.375 id) | 4 | |
| 8 | 33-4097 | GROMMET (0.625 id) | 1 | |
| 9 | 92-6689 | INSULATION | 1 | |
| 10 | 92-6690 | INSULATION | 1 | |
| 11 | 92-6691 | INSULATION | 1 | |
| 12 | 92-6692 | INSULATION | 1 | |
| 13 | 92-6693 | INSULATION | 1 | |
| 14 | 92-6694 | INSULATION | 1 | |
| 15 | 92-6695 | INSULATION | 1 | |
| 16 | 92-146 | GASKET - molded | A/R |
