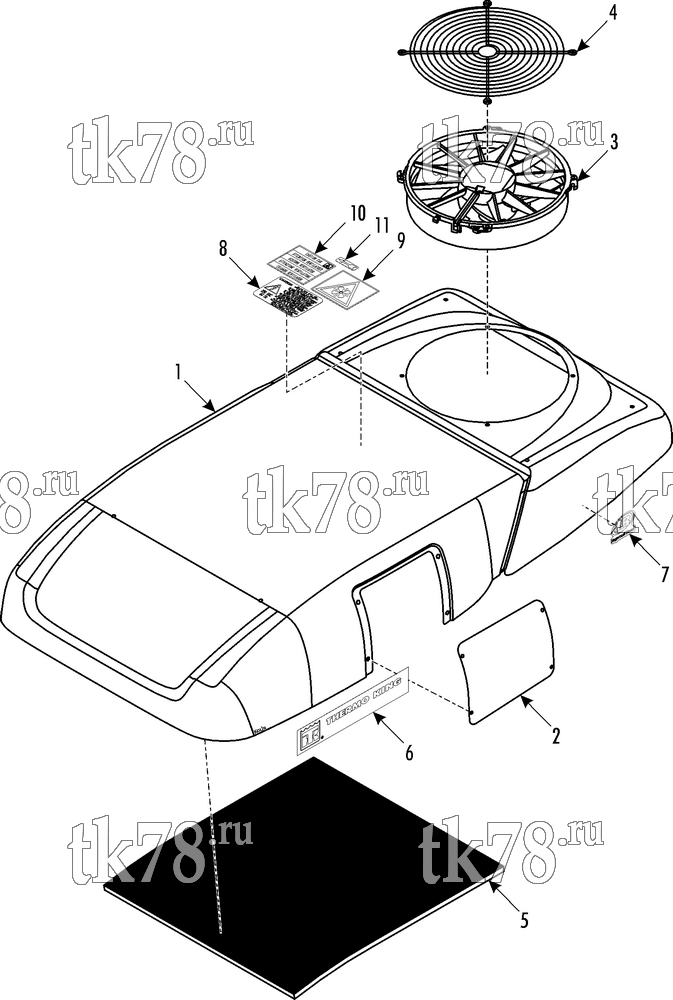

Установкa Thermo King SR-10R схема COVER – 227C0
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7956 | COVER | 1 | |
| 55-8837 | SCREW - cover | 6 | ||
| 51-871 | WASHER - sealing | 6 | ||
| 2 | 92-6685 | LID - filter | 1 | |
| 55-7407 | SCREW - lid | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 3 | 78-1614 | FAN | 1 | |
| 4 | 98-5425 | GUARD - fan | 1 | |
| 55-7372 | SCREW - fan & guard | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 56-2086 | FLATWASHER | 12 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 4 | ||
| 5 | 92-6686 | INSULATION | 1 | |
| 6 | 91-7551 | NAMEPLATE - TK Logo | 2 | |
| 7 | 92-1307 | NAMEPLATE - IR Logo | 2 | |
| 8 | 92-6202 | NAMEPLATE - Caution | 1 | |
| 9 | 99-8506 | NAMEPLATE - Caution Fan | 1 | |
| 10 | 99-8507 | NAMEPLATE - Caution Fan | 1 | |
| 11 | 99-4931 | NAMEPLATE - Arrow | 1 |
