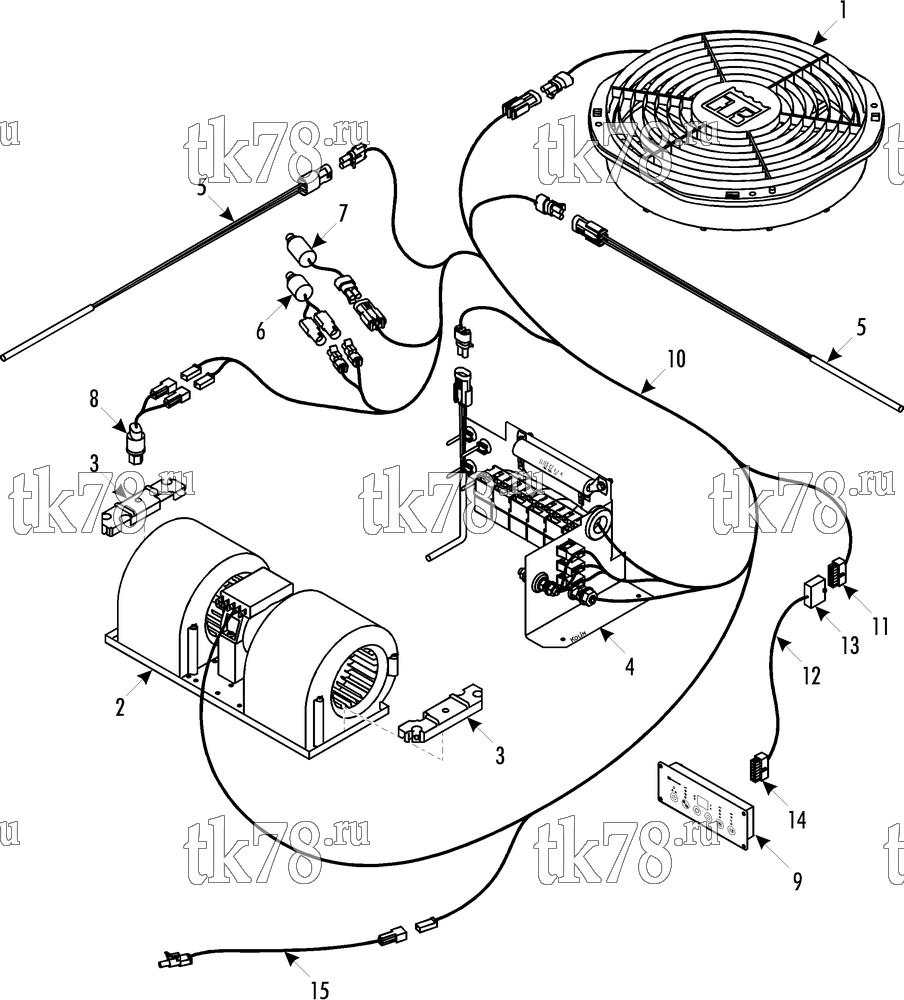

Установкa Thermo King SR-10F схема ELECTRICAL COMPONENTS FOR CA I D – 229A9
Обновление от: 9/4/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN - assembly (24 V, see 190F6) | 1 | |
| 78-1493 | FAN - assembly (12 V, see 190F6) | 1 | ||
| 2 | 781242 | BLOWER (24 V) | 1 | |
| 41-1717 | BLOWER (12 V) | 1 | ||
| 3 | 51-259 | HOLDER - blower | 2 | |
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 2 | ||
| 4 | NSS | PANEL - control (24 V, see 229B1) | 1 | |
| NSS | PANEL - control (12 V, see 229A0) | 1 | ||
| 5 | 41-4335 | SENSOR - temperature | 2 | |
| 6 | 41-1501 | SWITCH - hpco | 1 | |
| 7 | 41-5220 | SWITCH - pressure | 1 | |
| 8 | 41-4309 | SWITCH - lpco | 1 | |
| 9 | 41-7211 | CLIMAAIRE I D | 1 | |
| 10 | 41-8219 | HARNESS - control (for connectors see 115D14) | 1 | |
| 11 | 41-661 | CONNECTOR - in-line (14 terminal) | 1 | |
| 44-3228 | DIODE - rectifier | 1 | ||
| 12 | 41-5873 | HARNESS - extension (5 m) | 1 | |
| 13 | 41-6160 | CONNECTOR - in-line (14 terminal) | 1 | |
| 14 | 41-661 | CONNECTOR - in-line (14 terminal) | 1 | |
| 15 | 41-8218 | HARNESS - compressor (10 m, for connector see 115D14) | 1 |
