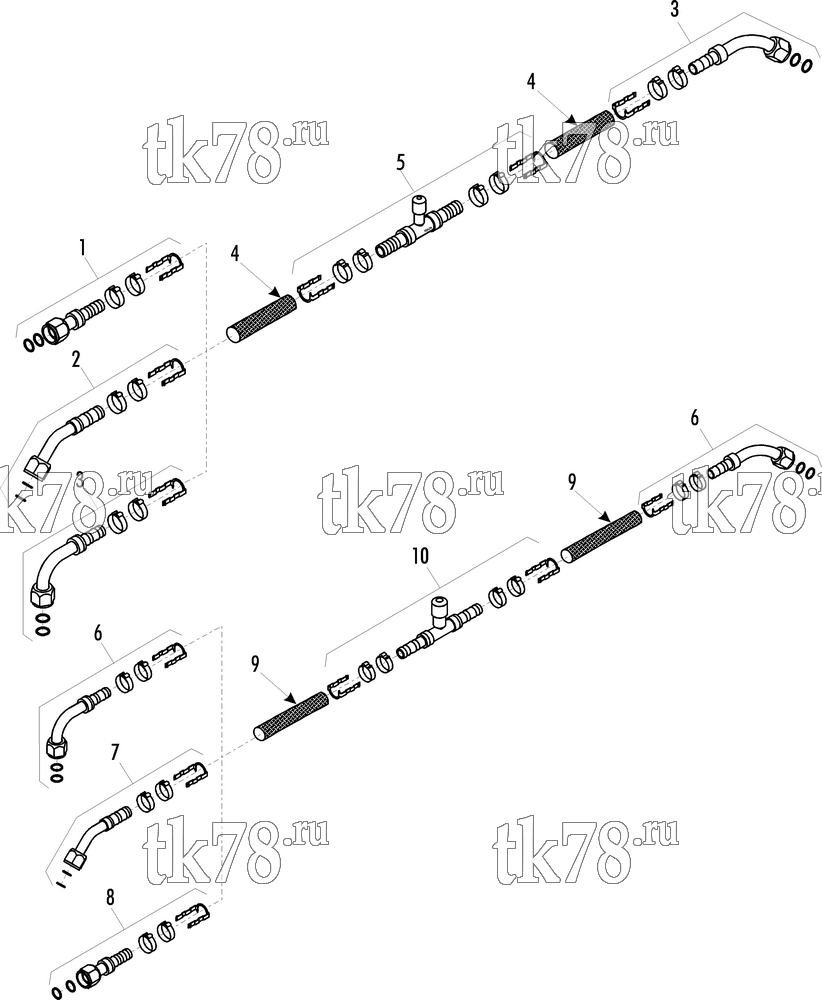

Установкa Thermo King SR-10F схема HOSE & FITTING KITS – 229A8
Обновление от: 9/4/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-669 | FITTING - hose (straight, #12) | 1 | |
| 2 | 61-671 | FITTING - hose (45 deg, #12) | 1 | |
| 3 | 61-659 | FITTING - hose (90 deg, #12) | 2 | |
| 4 | 61-2500 | HOSE - suction (#12) | A/R | |
| 5 | 61-664 | FITTING - low pressure charge valve | 1 | |
| 6 | 61-658 | FITTING - hose (90 deg, #10) | 2 | |
| 7 | 61-1225 | FITTING - hose (45 deg, #10) | 1 | |
| 8 | 61-1226 | FITTING - hose (straight, #10) | 1 | |
| 9 | 61-2499 | HOSE - discharge (#10) | A/R | |
| 10 | 61-663 | FITTING - high pressure charge valve | 1 |
