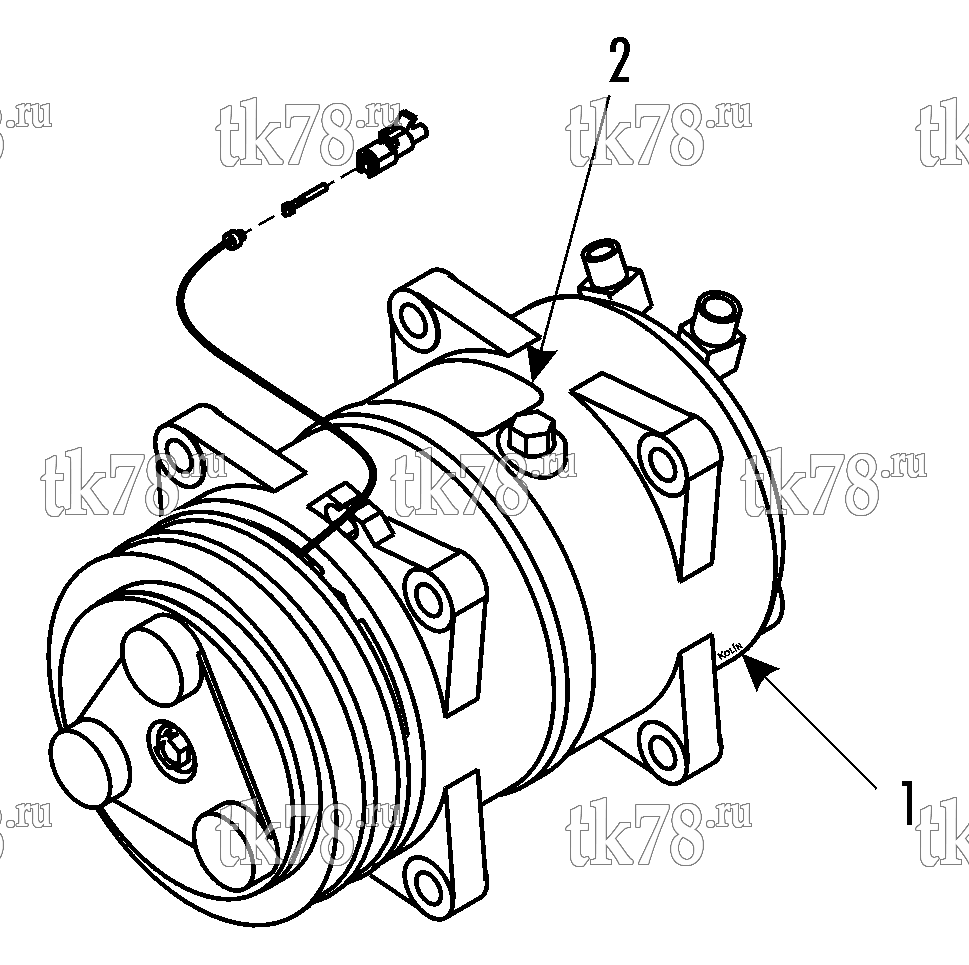

Установкa Thermo King SR-10F схема COMPRESSOR GROUP (TM08) – 229A7
Обновление от: 9/4/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-749 | COMPRESSOR TM08 (12 V, Kit 718924) | 1 | |
| 107-241 | CLUTCH (12 V, 2A) | 1 | ||
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 102-750 | COMPRESSOR TM08 (24 V, Kit 718926) | 1 | ||
| 107-324 | CLUTCH (24 V, 2A) | 1 | ||
| 203-515 | OIL - compressor (solest 120, 1 l) | A/R | ||
| 44-7327 | CONNECTOR - tower (1-pin) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 1 | ||
| 2 | 91-7520 | NAMEPLATE - 12 VDC | 1 | |
| 91-7543 | NAMEPLATE - 24 VDC | 1 |
