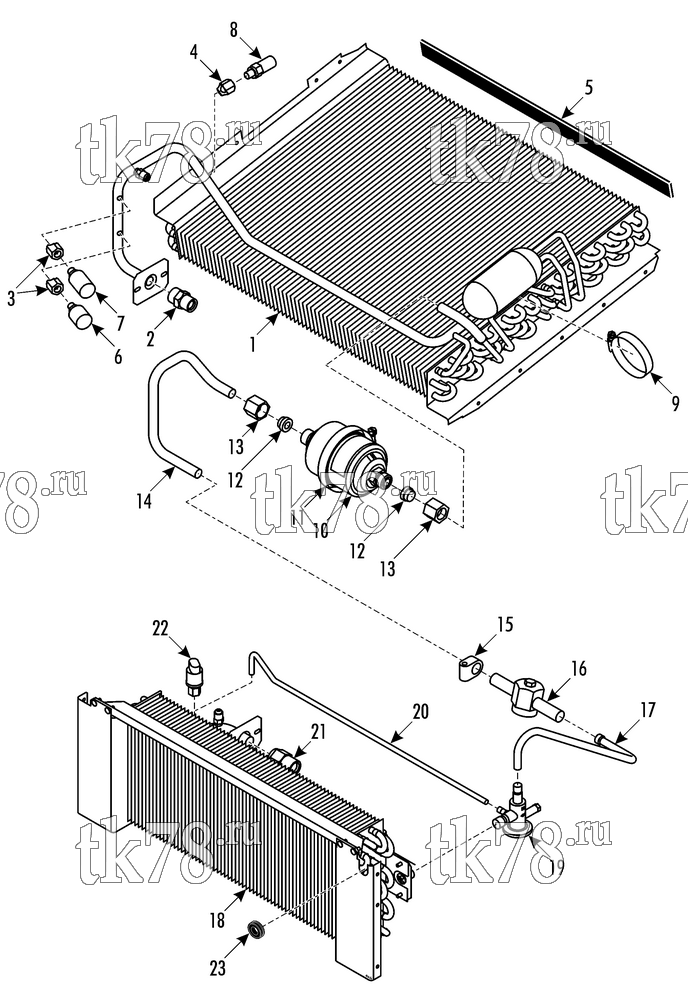

Установкa Thermo King SR-10F схема REFRIGERATION COMPONENTS – 229A6
Обновление от: 9/4/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2377 | COIL - condenser | 1 | |
| 2 | 55-8692 | ADAPTER - tube | 1 | |
| 3 | 66-3571 | FITTING - saddle | 2 | |
| 61-2059 | VALVE - rework | 1 | ||
| 4 | 55-3295 | FITTING - saddle | 1 | |
| 5 | 99-6968 | STRIP - neoprene | A/R | |
| 55-5130 | RIVET - coil | A/R | ||
| 6 | 41-1501 | SWITCH - hpco | 1 | |
| 7 | 41-5220 | SWITCH - pressure | 1 | |
| 8 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 9 | 55-1636 | CLAMP - receiver tank | 1 | |
| 10 | 66-8344 | DEHYDRATOR | 1 | |
| 11 | 55-7800 | CLAMP - dehydrator | 1 | |
| 12 | 55-6837 | SHOULDER | 2 | |
| 13 | 55-6838 | NUT - shoulder | 2 | |
| 14 | 61-4309 | TUBE | 1 | |
| 15 | 91-758 | CLAMP - tube | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 16 | 66-1188 | INDICATOR - liquid | 1 | |
| 17 | 61-4310 | TUBE | 1 | |
| 18 | 67-2378 | COIL - evaporator | 1 | |
| 19 | 61-1224 | VALVE - expansion | 1 | |
| 20 | 61-4311 | TUBE | 1 | |
| 66-5752 | FITTING - header | 1 | ||
| 61-2059 | VALVE - rework | 2 | ||
| 21 | 61-4312 | ADAPTER - tube | 1 | |
| 55-5130 | RIVET - coil | A/R | ||
| 22 | 41-4309 | SWITCH - lpco | 1 | |
| 23 | 33-428 | GROMMET (0.50 id) | 1 |
