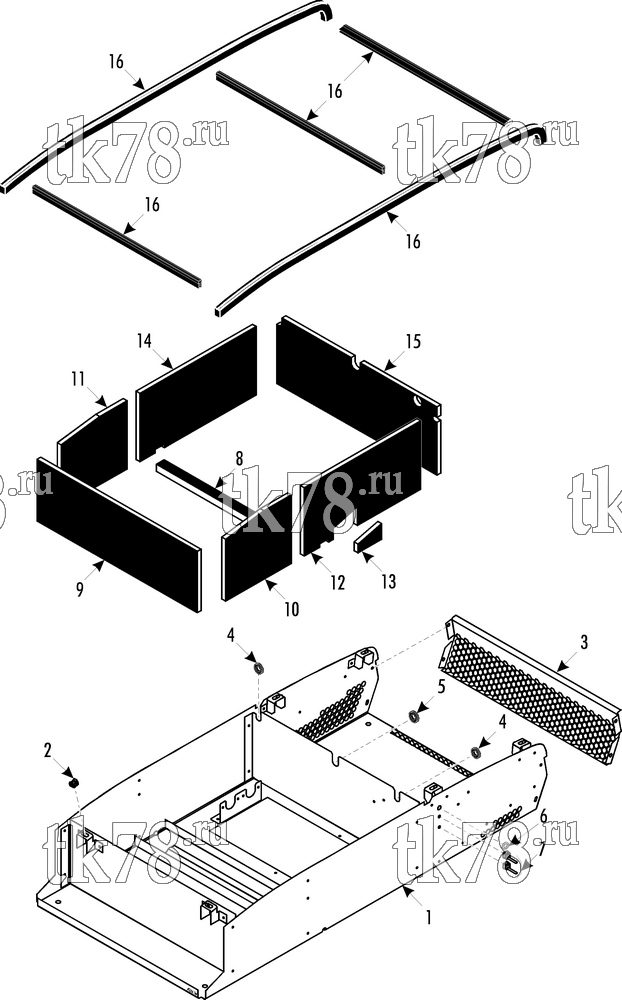

Установкa Thermo King SR-10F схема FRAME & INSULATION – 229A5
Обновление от: 9/4/08
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 98-8044 | BASE - assembly | 1 |
| 2 | 55-6997 | NUT - captive, cover | 1 |
| 3 | 98-6810 | GRILLE - condenser | 1 |
| 55-7340 | SCREW - grille | 4 | |
| 55-7171 | LOCKWASHER | 4 | |
| 55-7089 | FLATWASHER | 4 | |
| 55-8375 | NUT - captive | 4 | |
| 4 | 33-282 | GROMMET (0.375 id) | 2 |
| 5 | 33-739 | GROMMET (0.50 id) | 1 |
| 6 | 33-1013 | GROMMET (0.281 id) | 1 |
| 7 | 51-1631 | STRAP - cable | 2 |
| 8 | 92-3589 | PAD - drain | 1 |
| 9 | 92-6971 | INSULATION | 1 |
| 10 | 92-3593 | INSULATION | 1 |
| 11 | 92-3592 | INSULATION | 1 |
| 12 | 92-3590 | INSULATION | 1 |
| 13 | 92-3596 | INSULATION | 1 |
| 14 | 92-3591 | INSULATION | 1 |
| 15 | 92-6972 | INSULATION | 1 |
| 16 | 92-146 | RUBBER - extrusion | A/R |
