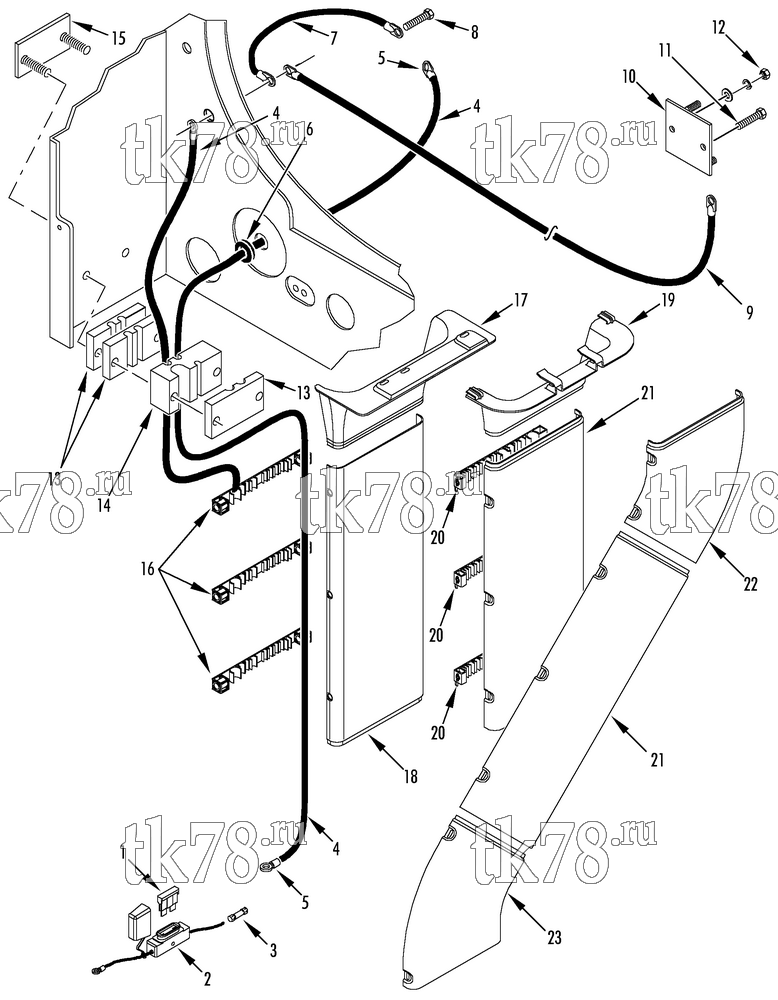

Установкa Thermo King SPECTRUM TS w/TK 376 Engine схема FUSE, BATTERY CABLES & HOSE MANAGEMENT – 217G2
Обновление от: 6/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 40-805 | KIT - battery fuse | 1 | ||
|
10-40-805 | Корпус предохранителя (60 ампер) | 7 860 ₽ |
|
| 1 | 41-3666 | FUSE (60 amp) | 1 | |
| 2 | 41-3665 | HOLDER - fuse | 1 | |
| 3 | 41-3408 | TERMINAL - splice | 1 | |
| 4 | 41-3921 | CABLE - battery (43 ft) | 1 | |
| 5 | 41-8598 | TERMINAL - battery cable | 2 | |
| 6 | 33-572 | GROMMET (0.750 id) | 1 | |
| 7 | 44-7186 | CABLE - ground | 1 | |
| 8 | 55-2969 | SCREW - ground terminal | 1 | |
| 55-2641 | FLATWASHER | 4 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 3 | ||
| 55-3300 | NUT | 2 | ||
| 9 | 41-2304 | CABLE - ground (78 in) | 1 | |
| 10 | 91-7753 | PLATE - ground | 1 | |
| 11 | 55-2683 | SCREW - ground | 3 | |
| 55-2641 | FLATWASHER | 3 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 6 | ||
| 55-3300 | NUT | 3 | ||
| 12 | 55-4953 | NUT - ground (1/4-20) | 10 | |
| 55-2993 | LOCKWASHER (internal tooth) | 15 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 13 | 55-9239 | CLAMP - cables & hoses | 3 | |
| 14 | 55-9238 | CLAMP - center, hoses & cables | 1 | |
| 15 | 92-3023 | BOLTSTRIP - clamp | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 16 | 91-9480 | CLIP - hose management (Kit 715610) | 6 | |
| 55-6531 | SCREW - clip | 18 | ||
| 17 | 91-9530 | ADAPTER - hose management (Kit 715610) | 1 | |
| 18 | 91-9481 | COVER - hose management (Kit 715610) | 3 | |
| 55-3015 | SCREW - cover | 14 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 19 | 92-1110 | COVER - hose management (Kit 719180) | 1 | |
| 20 | 92-1111 | HOLDER - hose management (Kit 719180) | 3 | |
| 21 | 92-1112 | COVER - hose management (Kit 719180) | 1 | |
| 55-3015 | SCREW - cover | 6 | ||
| 22 | 92-1113 | COVER - connector upper (Kit 719181) | 1 | |
| 23 | 92-1114 | COVER - connector lower (Kit 719181) | 1 |
