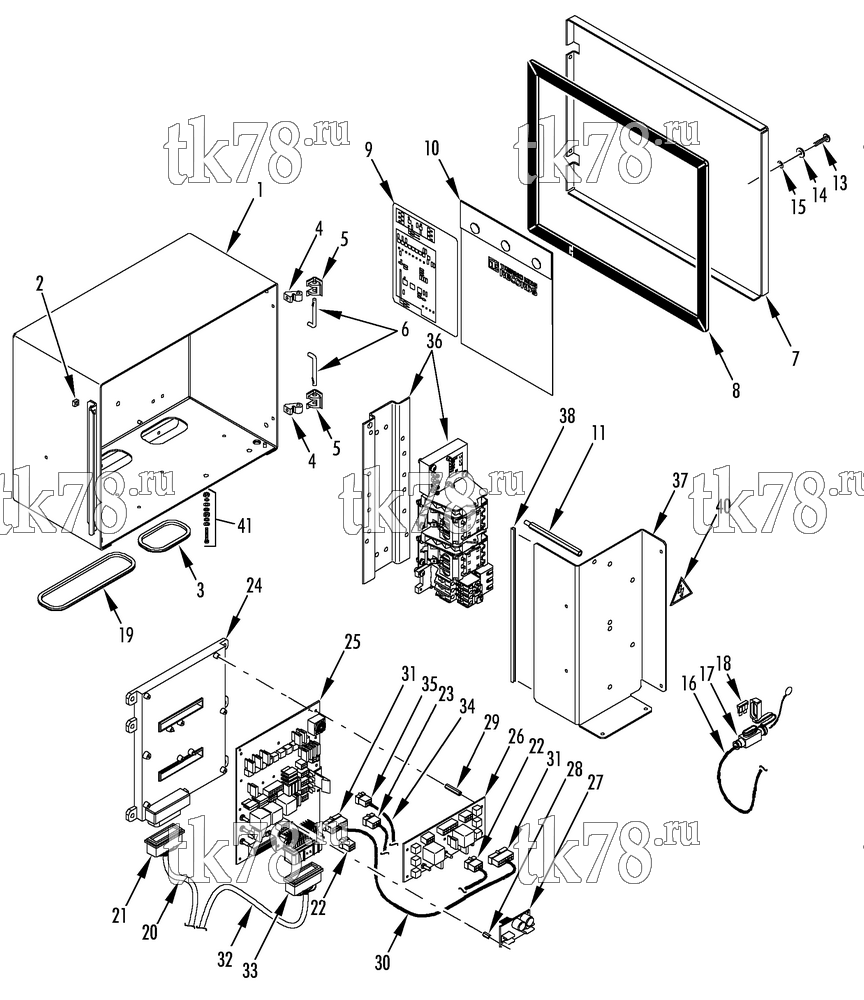

Установкa Thermo King SPECTRUM TS w/TK 376 Engine схема CONTROL BOX – 212C2
Обновление от: 6/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6356 | BOX - control | 1 | |
| 55-2979 | SCREW - box | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-9094 | NUT | 4 | ||
| 2 | 55-3059 | NUT - captive | 2 | |
| 3 | 33-3935 | GROMMET - web | 1 | |
| 4 | 91-9478 | HINGE - control box | 2 | |
| 55-2995 | SCREW - hinge | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 5 | 91-9477 | HINGE - control box (door) | 2 | |
| 6 | 91-9479 | PIN - hinge | 1 | |
| 7 | 92-2055 | COVER - control box | 1 | |
| 8 | 33-3100 | GASKET - cover | 1 | |
| 9 | 92-1278 | NAMEPLATE - circuit board | 1 | |
| 10 | 92-2060 | HOLDER - records | 1 | |
| 11 | 92-2056 | BRACKET - high voltage | 1 | |
| 12 | 99-8608 | STANDOFF | 1 | |
| 55-8711 | INSERT - threaded | 7 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 13 | 55-5965 | SCREW - cover | 2 | |
| 14 | 55-5970 | WASHER - sealing | 2 | |
| 15 | 55-4510 | WASHER - retaining | 2 | |
| 16 | 41-4739 | HARNESS - zone 1 & 2 fans | 1 | |
| 17 | 41-4740 | HOLDER - fuse | 4 | |
| 18 | 41-1771 | FUSE (30 amp) | 4 | |
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 19 | 33-3936 | GROMMET - web | 1 | |
| 20 | 41-7034 | HARNESS - controller | 1 | |
| 21 | 41-2407 | PLUG (35-pin, J3) | 1 | |
| 41-2457 | PIN | 25 | ||
| 22 | 41-4734 | PLUG (8-pin, P18 & P201) | 2 | |
| 23 | 41-4735 | PLUG (4-pin, P19) | 1 | |
| 24 | 45-2198 | CONTROLLER - Multi-Temp | 1 | |
| 40-864 | SOFTWARE | 1 | ||
| 25 | 41-4098 | BOARD - interface | 1 | |
| 55-9905 | SCREW - board | 9 | ||
| 55-2998 | LOCKWASHER | 9 | ||
| 26 | 41-4097 | BOARD - multi-temp | 1 | |
| 27 | 41-4096 | BOARD - power supply | 1 | |
| 28 | 99-9889 | STANDOFF - board | 2 | |
| 55-2601 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 29 | 51-114 | STANDOFF - board | 5 | |
| 55-4222 | SCREW - board | 5 | ||
| 55-2998 | LOCKWASHER | 5 | ||
| 30 | 41-4742 | HARNESS - option board | 1 | |
| 31 | 41-4751 | CONNECTOR (16-pin) | 2 | |
| 32 | 41-7035 | HARNESS - interface (engine/condenser) | 1 | |
| 33 | 44-9768 | CONNECTOR (36-pin, P14) | 1 | |
| 44-9769 | LOCK - connector | 1 | ||
| 44-9855 | TERMINAL | A/R | ||
| 34 | 41-6352 | HARNESS - model 50 units | 1 | |
| 35 | 41-7510 | CONNECTOR (9-pin) | 1 | |
| 41-6258 | PLUG (6-pin) | 1 | ||
| 41-4750 | SOCKET (16 gauge) | 5 | ||
| 41-7511 | TERMINAL - pin (18 gauge) | 6 | ||
| 36 | NSS | TRAY - high voltage (see 174E9) | 1 | |
| 55-2991 | SCREW - tray | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 37 | 92-2057 | COVER - high voltage tray | 1 | |
| 55-1587 | SCREW - cover | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 38 | 33-3105 | EXTRUSION - rubber | 1 | |
| 39 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 40 | 55-5757 | SCREW - ground (8-32) | 1 | |
| 55-2201 | FLATWASHER | 1 | ||
| 55-2202 | LOCKWASHER | 1 | ||
| 55-2990 | NUT | 3 | ||
| 41 | 55-2991 | SCREW - ground (10-32) | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER - internal tooth | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 |
