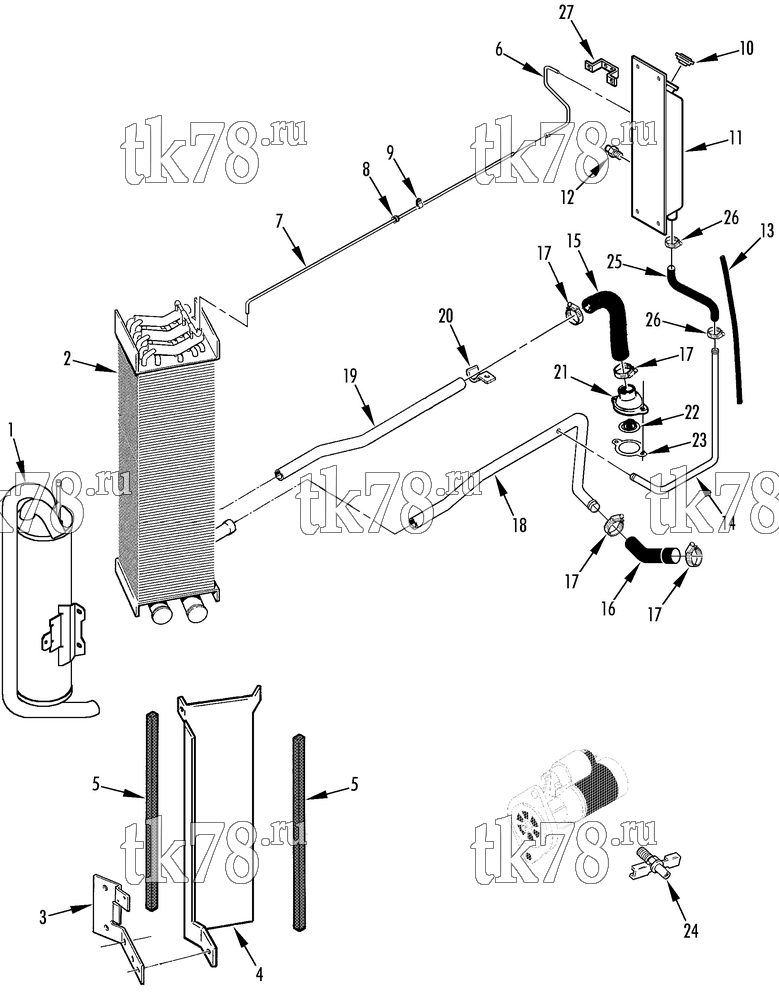

Установкa Thermo King SPECTRUM Super-II TCI схема COOLING SYSTEM – 185B8
Обновление от: 9/12/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2790 | TANK - accumulator | 1 | |
| 55-5078 | NUT - tank | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 2 | 12-759 | RADIATOR | 1 | |
| 12-762 | RADIATOR (vinyl dipped) | 1 | ||
| 99-9894 | NUTSTRIP - radiator (4.0 bhc) | 2 | ||
| 91-1780 | NUTSTRIP (3.0 bhc) | 1 | ||
| 55-1725 | RIVET - nutstrip | 6 | ||
| 55-2969 | SCREW - radiator | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-2904 | WASHER - special | 2 | ||
| 3 | 91-7241 | BRACKET - radiator support | 1 | |
| 55-529 | SCREW - bracket | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 4 | 98-3283 | PANEL - radiator cover | 1 | |
| 55-2969 | SCREW - panel (1.0 lg) | 1 | ||
| 55-2969 | SCREW - panel (1.5 lg) | 2 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT | 3 | ||
| 5 | 33-3506 | STRIP - sealing | 2 | |
| 6 | 11-9306 | TUBE - radiator to expansion tank | 1 | |
| 7 | 11-6305 | TUBE - radiator to expansion tank | 1 | |
| 8 | 33-287 | GROMMET | 2 | |
| 9 | 55-546 | CLAMP - tube | 1 | |
| 10 | 11-5406 | CAP - radiator | 1 | |
|
10-11-5406 | Крышка радиатора | 2 200 ₽ |
|
| 11 | 10-345 | KIT - tank, expansion | 1 | |
| 55-2796 | CLAMP - fuel line | 2 | ||
| 11-4677 | HOSE | 1 | ||
| 81-293 | FITTING - barb | 1 | ||
| 55-2539 | BUSHING | 1 | ||
| 12-777 | TANK - expansion | 1 | ||
| 55-1587 | SCREW - tank | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 12 | 41-2842 | SENSOR - coolant level | 1 | |
| 13 | 99-1655 | HOSE - overflow (90.0 lg) | A/R | |
| 14 | 11-7773 | TUBE - expansion tank | 1 | |
| 55-4203 | CLAMP - tube | 1 | ||
| 15 | 11-9553 | HOSE - engine outlet (EPDM) | 1 | |
| 11-9554 | HOSE - engine outlet (silicone) | 1 | ||
| 16 | 11-9509 | HOSE - engine inlet (EPDM) | 1 | |
| 11-9510 | HOSE - engine inlet (silicone) | 1 | ||
| 17 | 55-558 | CLAMP - hose (EPDM) | 4 | |
| 55-1521 | CLAMP - hose (silicone) | 4 | ||
| 18 | 11-7772 | TUBE - radiator outlet | 1 | |
| 19 | 11-6300 | TUBE - radiator inlet | 1 | |
| 20 | 99-5868 | CLAMP - tube (single tube) | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 21 | 11-4090 | ADAPTER - engine water outlet | 1 | |
| 55-5424 | SCREW - adapter | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 22 | 11-7702 | THERMOSTAT | 1 | |
|
11-7702 OEM | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 3 830 ₽ |
|
|
10-11-7702 | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 1 790 ₽ |
|
| 23 | 33-487 | GASKET | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 24 | 55-5094 | DRAIN COCK | 1 | |
| 25 | 11-7300 | HOSE - engine to expansion tank (EPDM) | 1 | |
| 11-7729 | HOSE - engine to expansion tank (silicone) | 1 | ||
| 26 | 55-2818 | CLAMP - hose (EPDM) | 2 | |
| 55-1521 | CLAMP - hose (silicone) | 2 | ||
| 27 | 91-2670 | BRACKET - expansion tank | 1 |
