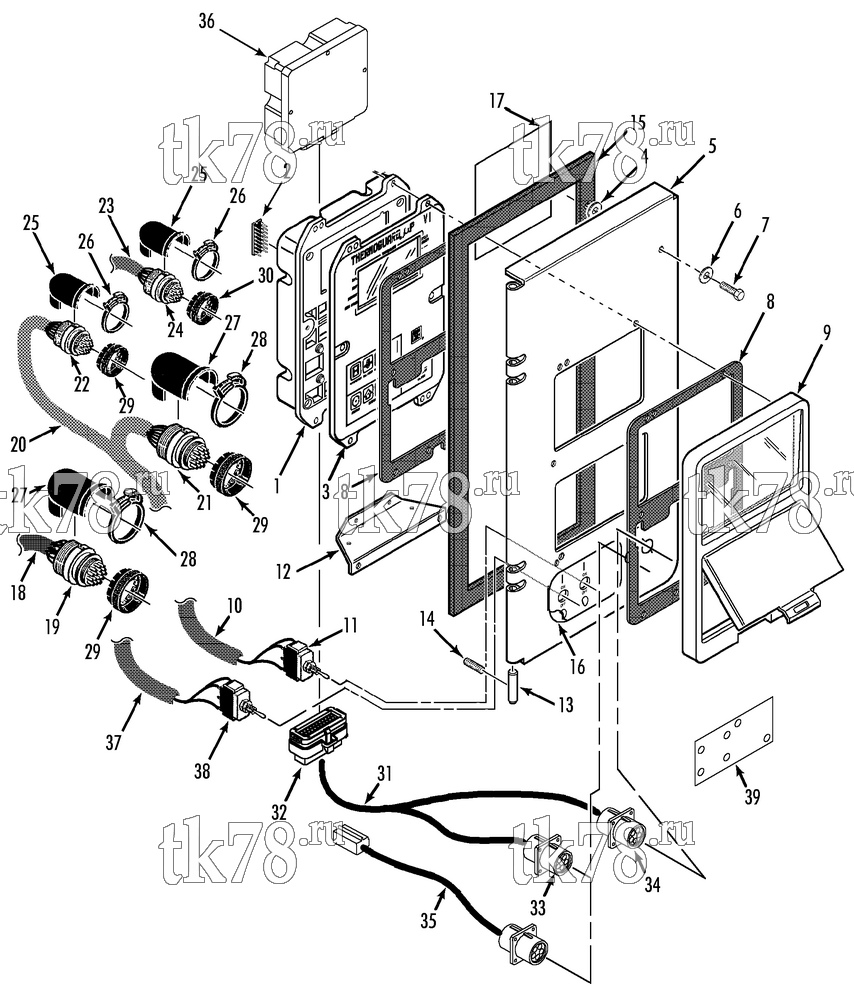

Установкa Thermo King SPECTRUM SB TCI схема CONTROL BOX COVER (SPECTRUM SB 30) – 167A1
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2426 | CONTROLLER - microprocessor | 1 | |
| 845-2426 | CONTROLLER - microprocessor (reman) | 1 | ||
| 45-2427 | CONTROLLER - microprocessor (w/ communications) | 1 | ||
| 845-2427 | CONTROLLER - microprocessor (reman) | 1 | ||
| 2 | 40-946 | KIT - eprom chip | 1 | |
| 3 | 91-6191 | FACEPLATE/OVERLAY - MP IV | 1 | |
| 55-4580 | SCREW - controller | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 55-6772 | WASHER - split | 2 | |
| 5 | 98-7935 | DOOR - control box (w/communications & DAS) | 1 | |
| 6 | 55-3028 | WASHER - sealing | 2 | |
| 7 | 55-6352 | SCREW - door | 2 | |
| 8 | 33-2894 | GASKET - bezel | 2 | |
| 9 | 91-9303 | BEZEL (see 161H7) | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 10 | 41-5392 | HARNESS - remote evaporator (zone 2) | 1 | |
| 11 | 41-4165 | SWITCH (black handle) | 1 | |
| 12 | 91-5728 | BRACKET - harness | 1 | |
| 55-4331 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 13 | 99-7900 | ROD - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 14 | 55-3473 | PIN - hinge | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 15 | 33-2216 | GASKET - door | 1 | |
| 16 | 92-1393 | NAMEPLATE - switch | 1 | |
| 17 | 91-9748 | NAMEPLATE - fuse & relay | 1 | |
| 18 | 41-4250 | HARNESS - sensor (before 8/01) | 1 | |
| 41-5391 | HARNESS - sensor (8/01 to 5/04) | 1 | ||
| 41-6389 | HARNESS - sensor (5/04 & after) | 1 | ||
| 19 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 33-3716 | SEAL - peripheral | 1 | ||
| 20 | 41-3467 | HARNESS - interconnect | 1 | |
| 21 | 41-743 | CONNECTOR - circular (17-pin) | 1 | |
| 22 | 41-744 | CONNECTOR - circular (23-pin) | 1 | |
| 23 | 41-4322 | HARNESS - communication | 1 | |
| 24 | 41-746 | CONNECTOR - circular (17-pin) | 1 | |
| 44-8329 | RECEPTACLE - satellite communication | 1 | ||
| 25 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 26 | 55-7617 | CLAMP (plastic) | 2 | |
| 27 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 28 | 55-7618 | CLAMP (plastic) | 2 | |
| 29 | 41-748 | LOCKRING | 3 | |
| 30 | 41-747 | LOCKRING | 1 | |
| 31 | 41-3358 | HARNESS - DAS | 1 | |
| 32 | 41-3359 | CONNECTOR - plug (35-pin, female) | 1 | |
| 33 | 41-2405 | CONNECTOR - receptacle (5-pin, DAS download) | 1 | |
| 41-2406 | CAP - dust | 1 | ||
| 99-3685 | CHAIN | 1 | ||
| 34 | 44-8329 | RECEPTACLE (DAS printer) | 1 | |
| 44-8333 | CAP - dust | 1 | ||
| 99-3685 | CHAIN | 1 | ||
| 44-8334 | STRAIN - relief | 1 | ||
| 55-3427 | SCREW - connector & receptacle | 6 | ||
| 55-2359 | FLATWASHER | 6 | ||
| 55-2360 | LOCKWASHER | 6 | ||
| 55-2361 | NUT | 6 | ||
| 35 | 41-3360 | HARNESS - datalogger (w/o DAS) | 1 | |
| 36 | 45-2247 | DATALOGGER - DAS IV | 1 | |
| 55-5754 | NUT - datalogger | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 37 | 41-2895 | HARNESS - switch (host/zone 1) | 1 | |
| 38 | 44-7792 | SWITCH (1pst) | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 39 | 92-1679 | PLATE - switch cover | 1 |
