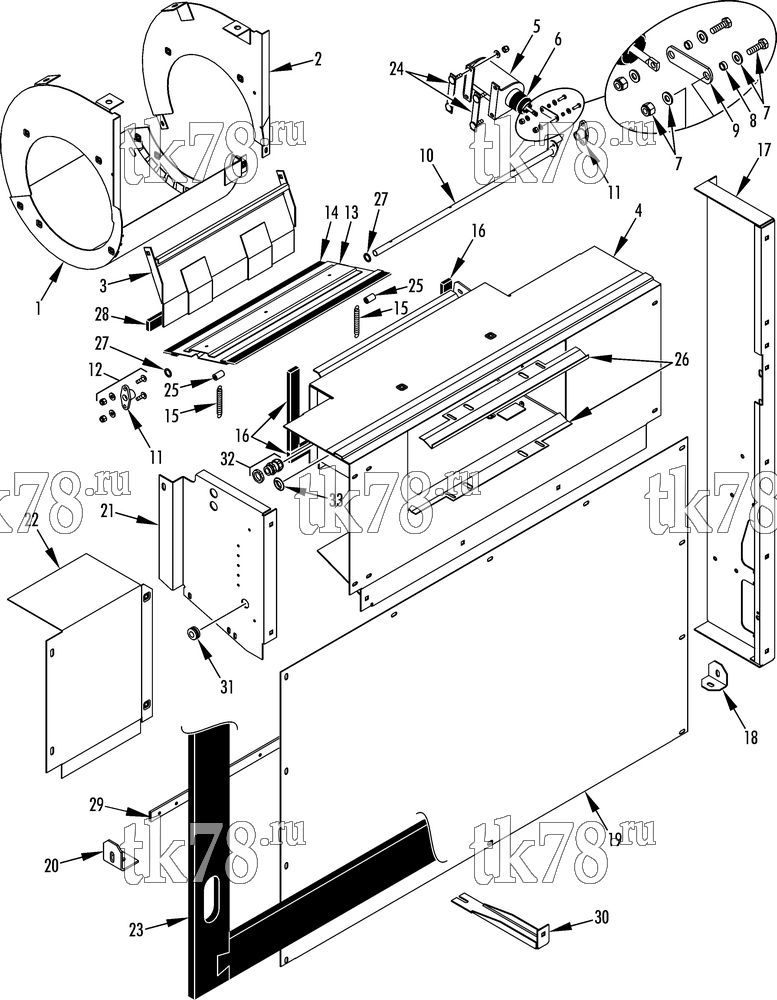

Установкa Thermo King SPECTRUM SB TCI схема EVAPORATOR COMPONENTS – 160A3
Обновление от: 1/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5817 | HOUSING - evaporator blower | 1 | |
| 55-1587 | SCREW - housing | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 2 | 98-5766 | PANEL - evaporator blower housing | 1 | |
| 55-8317 | SCREW - housing | 6 | ||
| 55-3045 | LOCKWASHER - dome | 6 | ||
| 3 | 99-7962 | MEMBER - evaporator blower housing | 1 | |
| 55-1587 | SCREW - member | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 4 | 98-4901 | PANEL - damper (SB-100, 190 & 200) | 1 | |
| 98-4598 | PANEL - damper (SB-300 & 400) | 1 | ||
| 98-6483 | PANEL - damper (SB-110, 200TG, 210 & SPECTRUM) | 1 | ||
| 98-6447 | PANEL - damper (SB-310 & 310+) | 1 | ||
| 55-5972 | SCREW - panel | 4 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 5 | 44-2823 | SOLENOID | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 6 | 91-3095 | BOOT - solenoid | 1 | |
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 44-9590 | HARNESS - ground | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT - solenoid | 4 | ||
| 7 | 55-3027 | SCREW - link | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 8 | 99-837 | SPACER - link | 2 | |
| 9 | 91-5811 | LINK - damper | 1 | |
| 10 | 91-5804 | SHAFT - damper | 1 | |
| 55-3031 | SCREW - shaft | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 11 | 99-6565 | BEARING - damper | 2 | |
|
10-99-6565 | Демпфер | 1 040 ₽ |
|
| 12 | 55-3098 | SCREW - bearing | 4 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 13 | 98-4599 | BLADE - damper | 1 | |
| 14 | 33-1598 | STRIP - damper blade (rubber) | 2 | |
| 15 | 99-317 | SPRING - damper | 2 | |
|
10-99-317 | Пружина | 500 ₽ |
|
| 16 | 99-8562 | STRIP (rubber) | A/R | |
| 17 | 98-3741 | BRACKET - evaporator coil | 1 | |
| 55-2963 | SCREW (5/16-18 x 3/4) | 3 | ||
| 55-3089 | SCREW (5/16-18 x 1-1/2) | 3 | ||
| 55-2958 | FLATWASHER | 9 | ||
| 55-2959 | LOCKWASHER | 3 | ||
| 55-4954 | NUT | 3 | ||
| 55-3059 | NUT - captive (1/4-20) | 6 | ||
| 18 | 99-7998 | ANGLE - evaporator coil | 1 | |
| 55-2969 | SCREW - angle | 1 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-4954 | NUT | 1 | ||
| 19 | 98-8599 | COVER - evap coil (SB-100, 110, 190, 195, 200, 210, SPECTRUM) | 1 | |
| 98-8598 | COVER - evap coil (SB-300, 310 & 400) | 1 | ||
| 98-5997 | COVER - evap coil (rail option 002024) | 1 | ||
| 98-6450 | COVER - evap coil (rail option, SB-300, 310) | 1 | ||
| 55-5972 | SCREW - cover | 12 | ||
| 55-3045 | LOCKWASHER - dome | 12 | ||
| 20 | 99-8089 | ANGLE - evaporator coil | 1 | |
| 55-2963 | SCREW - angle | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-4954 | NUT | 2 | ||
| 21 | 91-7114 | PANEL - air block (SB-100, 110, 190 & 200) | 1 | |
| 91-5805 | PANEL - air block (SB-300, 310 & 400) | 1 | ||
| 92-9368 | PANEL - air block (SB-200TG, SB-210) | 1 | ||
| 55-1587 | SCREW - panel | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT - captive | 4 | ||
| 22 | 92-7560 | PLATE - cover (SB-100, 110, 190, 200 & 200TG) | 1 | |
| 92-7804 | PLATE - cover (SB-300, 310 & 400) | 1 | ||
| 55-5972 | SCREW - plate | 4 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 23 | 33-2918 | GASKET - sill | 1 | |
| 24 | 91-7113 | BOLTSTRIP - solenoid | 2 | |
| 25 | 91-3599 | STOP - damper | 2 | |
| 55-3031 | SCREW - stop | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 26 | 99-8820 | STOP - damper | 2 | |
| 55-3027 | SCREW - stop | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4526 | NUT - captive | 4 | ||
| 27 | 55-5675 | WASHER - damper | 1 | |
| 28 | 33-1793 | STRIP - sealing | 2 | |
| 29 | 99-9423 | CHANNEL - drain pan | 1 | |
| 30 | 91-6902 | BRACE - evaporator cover | 1 | |
| 31 | 33-1213 | GROMMET - sensors & harness | 3 | |
| 32 | 55-5111 | CONNECTOR - sensors | 2 | |
| 33 | 55-7667 | PLUG - button (plugs unused sensor hole) | 1 |
