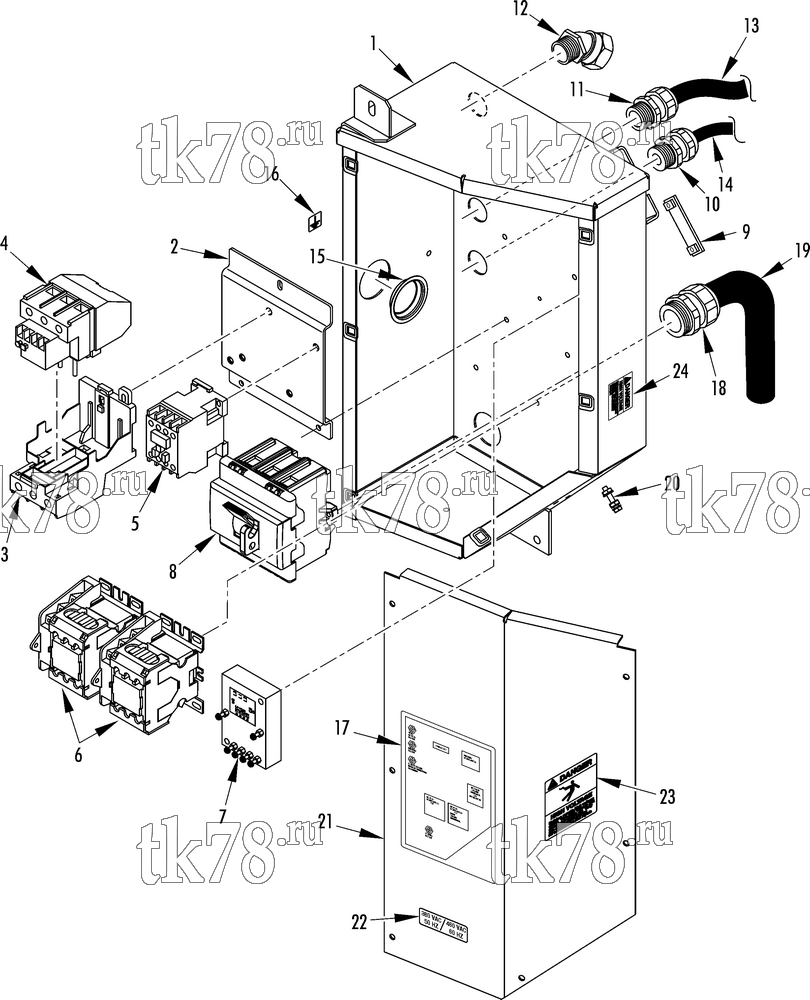

Установкa Thermo King SPECTRUM SB 50 for MBM схема HIGH VOLTAGE BOX (460V w/24 hp MOTOR & REMOTE RECEPTACLE) – 241D9
Обновление от: 6/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8215 | BOX - high voltage | 1 | |
| 55-2969 | SCREW - box | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 2 | 92-8019 | BRACKET - contactor | 1 | |
| 55-3842 | SCREW - bracket | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 3 | ||
| 3 | 41-6096 | BRACKET - relay | 1 | |
| 55-2989 | SCREW | 1 | ||
| 55-2202 | LOCKWASHER | 1 | ||
| 4 | 41-9110 | RELAY - overload | 1 | |
| 55-3022 | SCREW - relay | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 5 | 41-5629 | CONTACTOR - heaters | 1 | |
| 55-3511 | SCREW - contactor | 2 | ||
| 55-2202 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 6 | 41-7934 | CONTACTOR - motor | 2 | |
| 55-3842 | SCREW - contactor | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 7 | 42-792 | SELECTOR - phase | 1 | |
| 55-3019 | SCREW - indicator | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 8 | 41-9111 | SWITCH - disconnect (80 amps) | 1 | |
| 55-3511 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 9 | 99-7671 | NUTSTRIP - box | 1 | |
| 10 | 55-6742 | GRIP - cable | 1 | |
| 11 | 55-6141 | GRIP - cable | 1 | |
| 12 | 55-5286 | GRIP - cable | 1 | |
| 13 | 41-8728 | HARNESS (high voltage box to low voltage box) | 1 | |
| 44-8914 | CONNECTOR - 6-pin (see 112D9) | 1 | ||
| 41-7510 | CONNECTOR - 9-pin | 1 | ||
| 41-7511 | TERMINAL - pin (gold 18-22 ga) | 6 | ||
| 14 | 41-9112 | HARNESS - heater | 1 | |
| 44-9866 | TERMINAL - wirepin (14 ga) | 6 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 2 | ||
| 15 | 55-6474 | PLUG - button | 1 | |
| 16 | 91-9137 | NAMEPLATE - Grounding | 2 | |
| 17 | 92-1247 | NAMEPLATE - Components Location | 1 | |
| 18 | 51-1962 | FITTING - conduit | 1 | |
| 51-1963 | NUT - grip | 1 | ||
| 19 | 41-9113 | CONDUIT - corrugated | 1 | |
| 20 | 55-3000 | SCREW - ground | 2 | |
| 55-2996 | LOCKWASHER (internal tooth) | 6 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 4 | ||
| 21 | 92-2727 | COVER - box | 1 | |
| 55-3099 | SCREW - cover | 6 | ||
| 55-1511 | LOCKWASHER | 6 | ||
| 55-431 | FLATWASHER | 6 | ||
| 55-4508 | NUT - captive | 6 | ||
| 22 | 99-2664 | NAMEPLATE - 460 Volt | 1 | |
| 23 | 92-7592 | NAMEPLATE - High Voltage | 1 | |
| 24 | 92-7593 | NAMEPLATE - High Voltage Warning | 1 |
