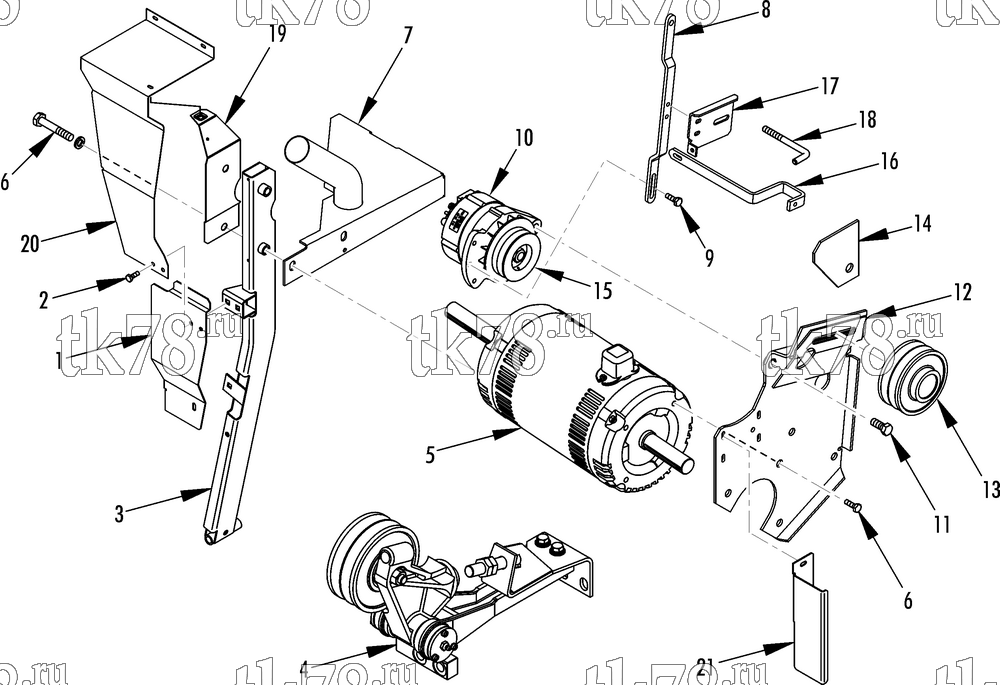

Установкa Thermo King SPECTRUM SB 50 for MBM схема MOTOR, ALTERNATOR & TENSIONER GROUP (w/ 24 hp motor) – 240D4
Обновление от: 11/15/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3992 | SHIELD - belt | 1 | |
| 2 | 55-145 | SCREW - shield (hex head) | 2 | |
| 55-3542 | SCREW - shield (truss head) | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 3 | ||
| 55-4974 | NUT - captive | 3 | ||
| 3 | 92-8017 | TUBE - motor support | 1 | |
| 55-5597 | SCREW - tube | 1 | ||
| 55-2038 | FLATWASHER | 2 | ||
| 55-3686 | NUT | 1 | ||
| 4 | NSS | TENSIONER - belt (see 70D7) | 1 | |
| 5 | 104-785 | MOTOR (24hp, 460V) | 1 | |
| 44-6785 | CONNECTOR - liquid tite | 1 | ||
| 6 | 55-5608 | SCREW (1/2-13 x 3 in) | 2 | |
| 55-6149 | SCREW (1/2-13 x 1 in) | 4 | ||
| 55-365 | LOCKWASHER | 6 | ||
| 7 | 98-8389 | BRACKET - motor support | 1 | |
| 99-8537 | NUTPLATE | 2 | ||
| 55-1669 | SCREW - support | 2 | ||
| 55-365 | LOCKWASHER | 2 | ||
| 8 | 92-2745 | ARM - alternator adjusting | 1 | |
| 9 | 55-129 | SCREW - arm | 3 | |
| 55-1243 | WASHER | 3 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-5078 | NUT | 1 | ||
| 10 | 41-2195 | ALTERNATOR (37 amp, see 144C4) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 45-2254 | ALTERNATOR (TK extended life, 37 amp, see 208F4) | 1 | ||
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-2197 | ALTERNATOR (65 amp, see 144C6) | 1 | ||
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 41-3372 | ALTERNATOR (105 amp) | 1 | ||
| 11 | 55-4214 | SCREW - alternator | 1 | |
| 55-2038 | FLATWASHER | 1 | ||
| 55-3686 | NUT | 1 | ||
| 12 | 98-8401 | PLATE - motor | 1 | |
| 55-1669 | SCREW - plate | 4 | ||
| 55-365 | LOCKWASHER | 4 | ||
| 13 | 77-1953 | PULLEY - idler (see 70D12) | 1 | |
| 14 | 91-3885 | PLATE - idler adjusting | 1 | |
| 55-365 | LOCKWASHER | 1 | ||
| 55-314 | NUT | 1 | ||
| 15 | 77-1598 | PULLEY - alternator (for 41-2195 & 41-2197) | 1 | |
| 77-2978 | PULLEY - alternator (for 45-2254) | 1 | ||
| 77-2166 | PULLEY - alternator (for 41-3372) | 1 | ||
| 16 | 92-2724 | BRACE - adjusting arm | 1 | |
| 55-101 | SCREW - brace | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 17 | 92-2725 | BRACKET - belt guide | 1 | |
| 18 | 91-1429 | ROD - belt guide | 1 | |
| 55-289 | NUT | 2 | ||
| 55-375 | LOCKWASHER | 1 | ||
| 55-402 | FLATWASHER | 2 | ||
| 19 | 98-8390 | BRACKET - fuel line guard | 1 | |
| 20 | 92-3990 | BRACKET - belt guard | 1 | |
| 21 | 92-8018 | BRACKET - belt guard | 1 |
