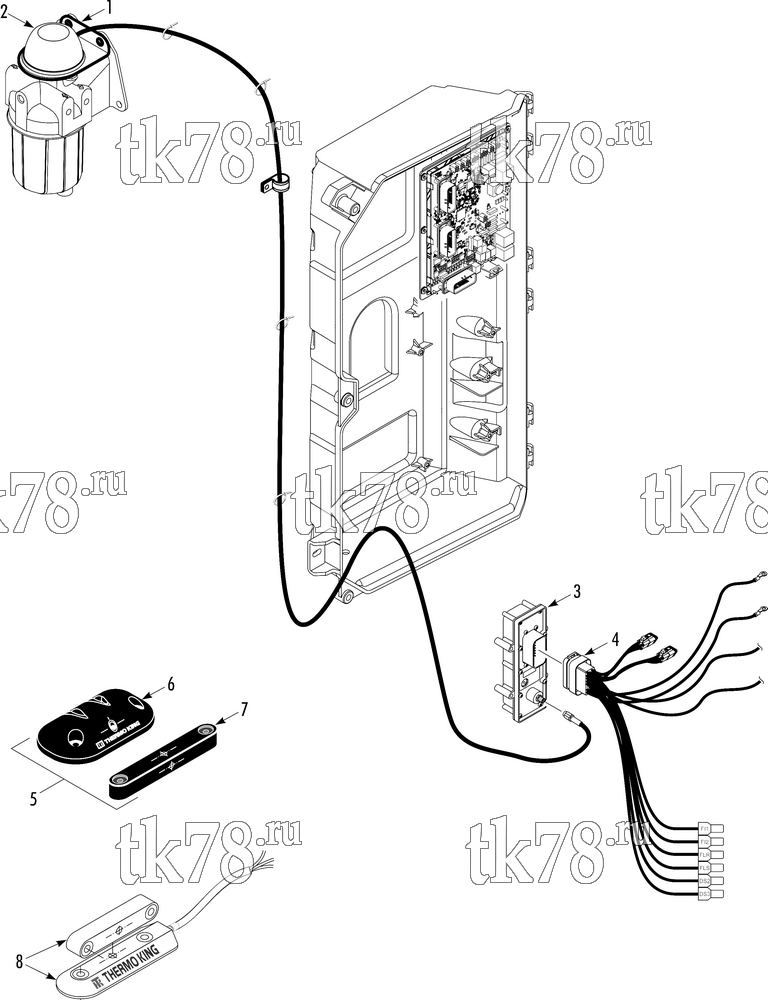

Установкa Thermo King SPECTRUM DE 30 схема DOOR SWITCH TRAILER (CargoLink) – 261A4
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-116 | BRACKET - antenna | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-7062 | INSERT - threaded | 2 | ||
| 2 | 42-238 | ANTENNA | 1 | |
| 3 | 42-228 | CONTROLLER - coordinator | 1 | |
| 55-5754 | NUT - controller | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 4 | 42-639 | HARNESS - interface (SR-3) | 1 | |
| 42-640 | HARNESS - interface (SR-2, SPECTRUM) | 1 | ||
| 41-9350 | CONNECTOR - 23-pin | 1 | ||
| 41-2457 | TERMINAL - socket | 8 | ||
| 41-9694 | PIN - sealing | 15 | ||
| 5 | 40-1143 | KIT - door switch | A/R | |
| 6 | 42-229 | SENSOR - door | 1 | |
| 7 | NSS | MAGNET | 1 | |
| 51-1321 | SCREW - 3/4 in | 2 | ||
| 55-8421 | SCREW - 1.0 in | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 8 | 40-1135 | KIT - door switch (3 wire) | 1 |
