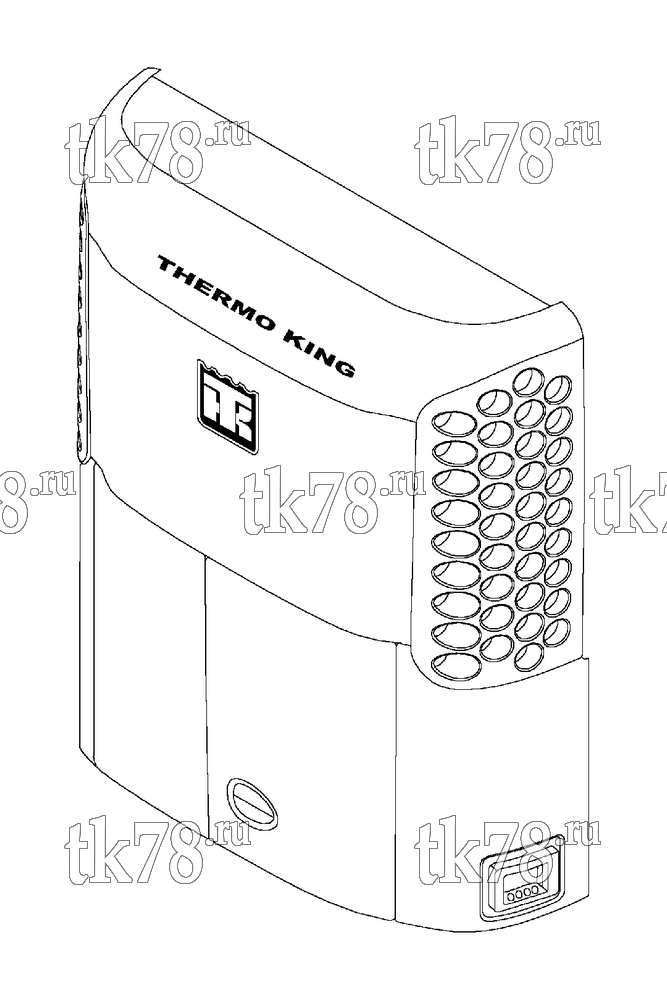

Установкa Thermo King SPECTRUM DE 30 схема SPECTRUM DE 30 REFERENCE SHEET – 11U64
Обновление от: 12/18/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900228 | System - SPECTRUM DE 30-3 | 7/12 | ||
| 002232 | SPECTRUM DE 30-3 | 7/12 | ||
| 919170 | System - Remote Evaporator S-2 | 5/06 | ||
| 919171 | System - Remote Evaporator S-3 | 5/06 | ||
| 719170 | Remote Evaporator - S-2 | 5/06 | ||
| 719171 | Remote Evaporator - S-3 | 5/06 | ||
| 002016 | Color Grille | 7/12 | ||
| 002020 | Chrome Grille | 7/12 | ||
| 002070 | Fresh Air Exchanger | 7/12 | ||
| 002110 | Gray Grilles | 5/06 | ||
| 002112 | White Grilles | 5/06 | ||
| 002155 | Fuel Tank - 120 Gallon Aluminum | 5/06 | ||
| 002156 | Fuel Tank - 120 Gallon 22 Inch Dia Aluminum | 5/06 | ||
| 002184 | Fuel Tank - 75 Gallon 22 Inch Dia Aluminum | 5/06 | ||
| 002208 | Fuel Heater | 5/06 | ||
| 002222 | Fuel Tank - 454 Liter Steel | 7/12 | ||
| 002237 | Battery Cables - Tapered Posts | 7/12 | ||
| 002240 | Fuel Tank - 50 Gallon AL 22 Dia | 7/12 | ||
| 002241 | Fuel Tank - 50 Gallon AL 22 Dia | 7/12 | ||
| 002242 | Fuel Tank - 50 Gallon AL 22 Dia | 7/12 | ||
| 002243 | Fuel Tank - 110 Gallon AL 22 Dia | 7/12 | ||
| 002244 | Fuel Tank - 50 Gallon AL 22 Dia, Anti-Siphon | 7/12 | ||
| 002245 | Fuel Tank - 50 Gallon AL 22 Dia, Arctic Option | 7/12 | ||
| 002247 | Fuel Tank - 120 Gallon AL 22 Dia | 7/12 | ||
| 002248 | Fuel Tank - 120 Gallon AL 22 Dia | 7/12 | ||
| 002249 | Fuel Tank - 75 Gallon AL 22 Dia | 7/12 | ||
| 002259 | Fuel Tank - 120 Gallon AL 22 Dia, Artic Option | 7/12 | ||
| 002726 | iBox 3rd Party 2-Way | 7/12 | ||
| 048602 | Fuel Tank - 50 Gallon 22 Inch Dia Aluminum | 5/06 | ||
| 048603 | Fuel Tank - 50 Gallon 22 Inch Dia Aluminum | 5/06 | ||
| 048233 | Fresh Air Exchange | 5/06 | ||
| 048601 | Fuel Tank - 30 Gallon 22 Inch Dia Aluminum | 5/06 | ||
| 048678 | Frost Plug Heater | 7/12 | ||
| 048776 | Fuel Tank - 110 Gallon 22 Inch Dia Aluminum | 5/06 | ||
| 069069 | Quick Oil Drain Connector | 7/12 | ||
| 069065 | Fuel Heater, Electric | 7/12 | ||
| 069141 | Flushmount controller | 7/12 | ||
| 069154 | SPECTRUM DE ETV | 7/12 | ||
| 700248 | Door Switch Kit | 7/12 | ||
| 700250 | Door Switch Kit | 7/12 | ||
| 700533 | ERC-2 | 7/12 | ||
| 700534 | ERC-3 | 7/12 | ||
| 701288 | Status Display | 7/12 | ||
| 701336 | Status Display, Flush Mount | 7/12 | ||
| 701968 | Trac-King 2-way/1-way | 7/12 | ||
| 702034 | iBox SR-3 3rd Party | 11/11 | ||
| 702131 | Fuel Display | 7/12 | ||
| 702330 | TracKing GPRS SR-2/3 (TSA) | 7/12 | ||
| 702390 | Status Display | 7/12 | ||
| 703167 | TracKing GPRS SR-2/3 (T-Mobile) | 7/12 | ||
| 714567 | Fuel Tank Kit - 50 Gallon 22 Inch | 5/06 | ||
| 715589 | Remote Status Light Kit | 5/06 | ||
| 720040 | Side Panel - Remote Evap | 5/06 | ||
| 720063 | Fuel Level Sensor | 7/12 | ||
| 720491 | HMI Sensor - 10 ft | 7/12 | ||
| 720492 | HMI Sensor - 20 ft | 7/12 | ||
| 720493 | HMI Sensor - 40 ft | 7/12 | ||
| 720494 | HMI Sensor - 60 ft | 7/12 | ||
| 720495 | HMI Sensor - 80 ft | 7/12 | ||
| 720840 | Fuel Level Sensor 22 inch | 7/12 | ||
| 720841 | Fuel Level Sensor 18 inch | 7/12 | ||
| 800024 | Kit - Installation, SPECTRUM DE 30-3 | 7/12 | ||
| 800116 | Installation Kit Evaporator S-3 | 7/12 | ||
| 880041 | Kit - Transverse Drain - Remote Evap | 7/12 | ||
| 819720 | Kit - Installation, S2 Z2 | 5/06 | ||
| 819721 | Kit - Installation, S2 Z3 | 5/06 | ||
| 819722 | Kit - Installation, S3 Z2 | 5/06 | ||
| 819723 | Kit - Installation, S3 Z3 | 5/06 | ||
| 069165 | CargoLink SPECTRUM | 12/12 | ||
| 069169 | CargoLink SPECTRUM | 12/12 | ||
| 069171 | CargoLink SPECTRUM | 12/12 | ||
| 069173 | CargoLink SPECTRUM | 12/12 |
