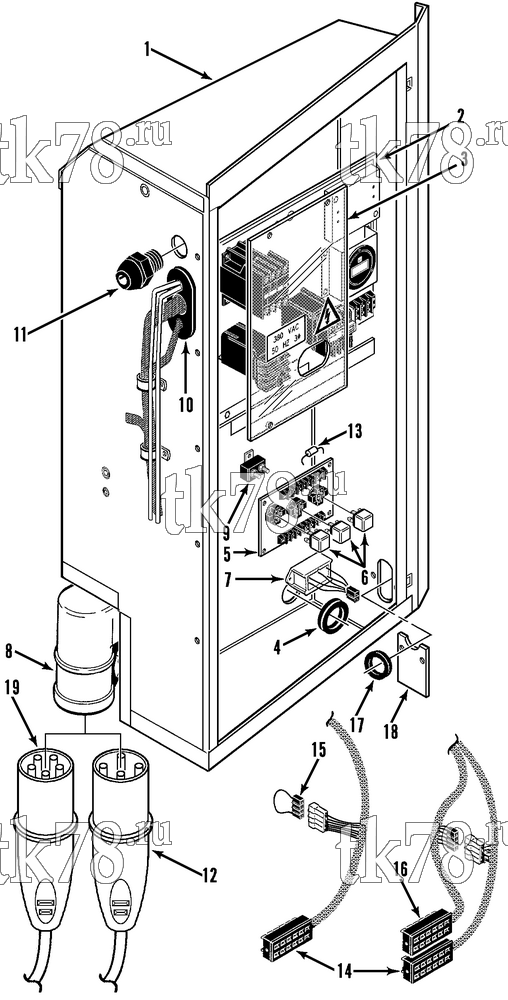

Установкa Thermo King SMX схема CONTROL BOX ASSEMBLY (50s w/ TG V) – 107B10
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3978 | BOX - control | 1 | |
| 2 | N/A | TRAY - linestarter (see 100D10) | 1 | |
| N/A | TRAY - linestarter (w/ phase correction see 102G1) | 1 | ||
| 55-2977 | SCREW - tray | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 3 | 91-3106 | COVER - high voltage | 1 | |
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 99-9700 | NAMEPLATE - 380VAC 50 Hz 3 phase | 1 | ||
| 4 | 33-1770 | GROMMET | 1 | |
| 91-3455 | COVER | 1 | ||
| 5 | 44-7527 | BOARD - relay | 1 | |
| 99-9889 | SPACER - standoff (board) | 5 | ||
| 55-4576 | SCREW - board | 8 | ||
| 55-2998 | LOCKWASHER (internal tooth) | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 6 | 41-895 | RELAY - mini | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 7 | 44-8017 | DETECTOR - liquid level | 1 | |
| 44-5827 | CONNECTOR (2-pin) | 1 | ||
| 55-3022 | SCREW - detector | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 8 | 44-6875 | RECEPTACLE (380V, 4-pin, before 5/95) | 1 | |
| 41-712 | RECEPTACLE (380V, 5-pin, 5/95 & after) | 1 | ||
| 41-519 | RECEPTACLE - power (380/3/50, mates w/ 41-520) | 1 | ||
| 33-507 | GROMMET | 1 | ||
| 55-2750 | SCREW - receptacle | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 4 | ||
| 9 | 44-5808 | BREAKER - circuit | 1 | |
| 55-2995 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 10 | 33-1661 | GROMMET - harness | 1 | |
| 11 | 55-9129 | CONNECTOR - cable | 1 | |
| 12 | 44-6685 | PLUG - power (4-pin, before 5/95) | 1 | |
| 13 | 44-2756 | DIODE (units w/ modulation) | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 14 | 44-9669 | HARNESS - main (SMX, see 100D12) | 1 | |
| 41-393 | HARNESS - main (SMX, w/ Deutsch connectors) | 1 | ||
| 41-1159 | HARNESS - main (MX w/ Deutsch connectors) | 1 | ||
| 15 | 44-7625 | CONNECTOR - jumper (units w/o Cycle Sentry) | 1 | |
| 16 | 44-9671 | HARNESS - Cycle Sentry | 1 | |
| 41-396 | HARNESS - Cycle Sentry (w/ Deutsch connectors) | 1 | ||
| 17 | 33-428 | GROMMET | 1 | |
| 18 | 91-5094 | COVER - harness | 1 | |
| 55-2965 | NUT - cover | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 19 | 41-520 | PLUG - power (380/3/50, mates w/ 41-519) | 1 |
