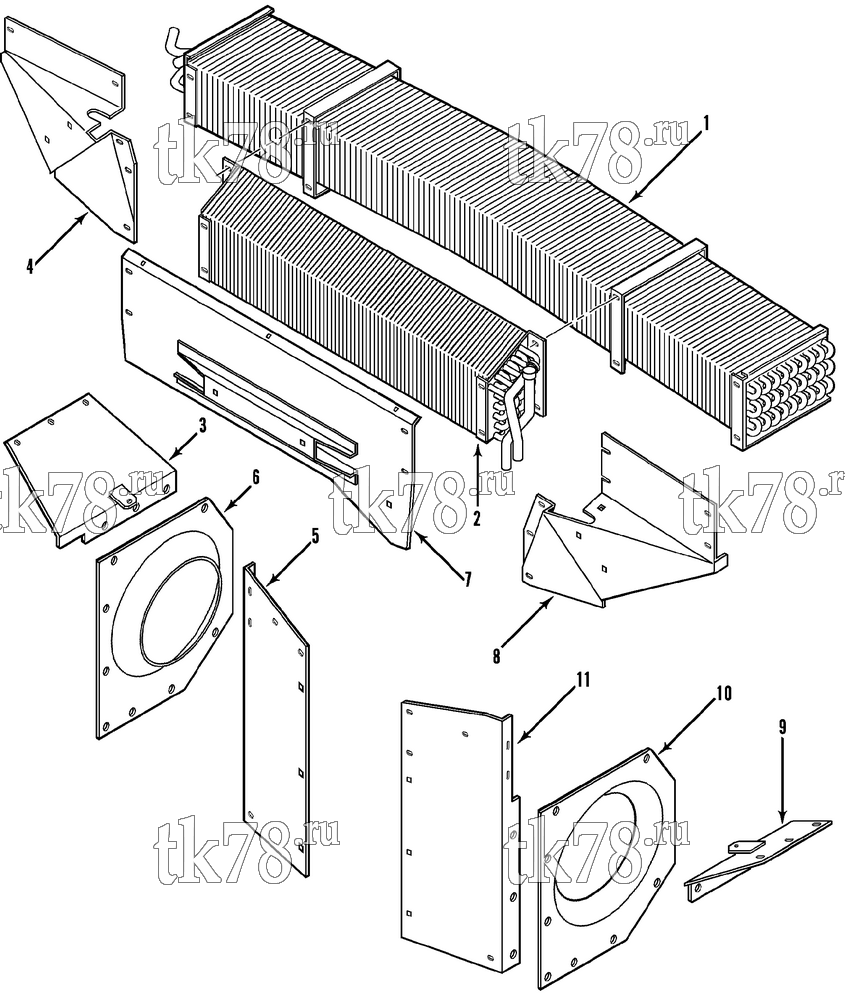

Установкa Thermo King SMX схема CONDENSER COIL & PANELS (Before 11/19/93) – 100E13
Обновление от: 2/17/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1007 | COIL - condenser | 1 | |
| 33-2182 | SEAL - radiator to condenser (1.2 in) | 2 | ||
| 91-2949 | NAMEPLATE - pressure vessel | 1 | ||
| 91-2948 | NUTSTRIP (3.15 center) | 2 | ||
| 91-3179 | NUTSTRIP (3.46 center) | 2 | ||
| 55-5955 | SCREW - coil (M6) | 4 | ||
| 55-4608 | LOCKWASHER | 4 | ||
| 55-4638 | FLATWASHER | 4 | ||
| 55-5424 | SCREW - coil (M8) | 4 | ||
| 55-7071 | FLATWASHER | 8 | ||
| 55-7006 | NUT | 4 | ||
| 2 | 12-582 | COIL - radiator (see 100B13) | 1 | |
| 10-12-582 | Радиатор, SL/SLe/SMX/SMX-II | 33 520 ₽ |
|
|
| 11-4921 | NECK - filler | 1 | ||
| 3 | 98-3961 | PANEL - access (curbside) | 1 | |
| 4 | 91-4572 | PANEL - condenser coil (curbside) | 1 | |
| 5 | 91-4573 | PANEL (front, curbside) | 1 | |
| 6 | 98-3960 | ORIFICE (curbside, see 100B9) | 1 | |
| 7 | 91-4574 | PANEL - radiator (top front) | 1 | |
| 33-2183 | SEAL - radiator to condenser (3.0 in wide) | 1 | ||
| 99-5966 | STRIP (1.0 in wide) | A/R | ||
| 8 | 91-4575 | PANEL - condenser coil (roadside) | 1 | |
| 9 | 98-3962 | PANEL - access (roadside) | 1 | |
| 10 | 91-2953 | ORIFICE - condenser (roadside, see 100B9) | 1 | |
| 11 | 91-4576 | PANEL (front, roadside) | 1 | |
| 55-4666 | SCREW - panel | 48 | ||
| 55-4638 | FLATWASHER | 36 | ||
| 55-4608 | LOCKWASHER | 36 | ||
| 55-405 | WASHER - dome | 10 | ||
| 55-7014 | NUT - captive | 14 | ||
| 203-389 | SEALER - polyurethane (white) | A/R |
