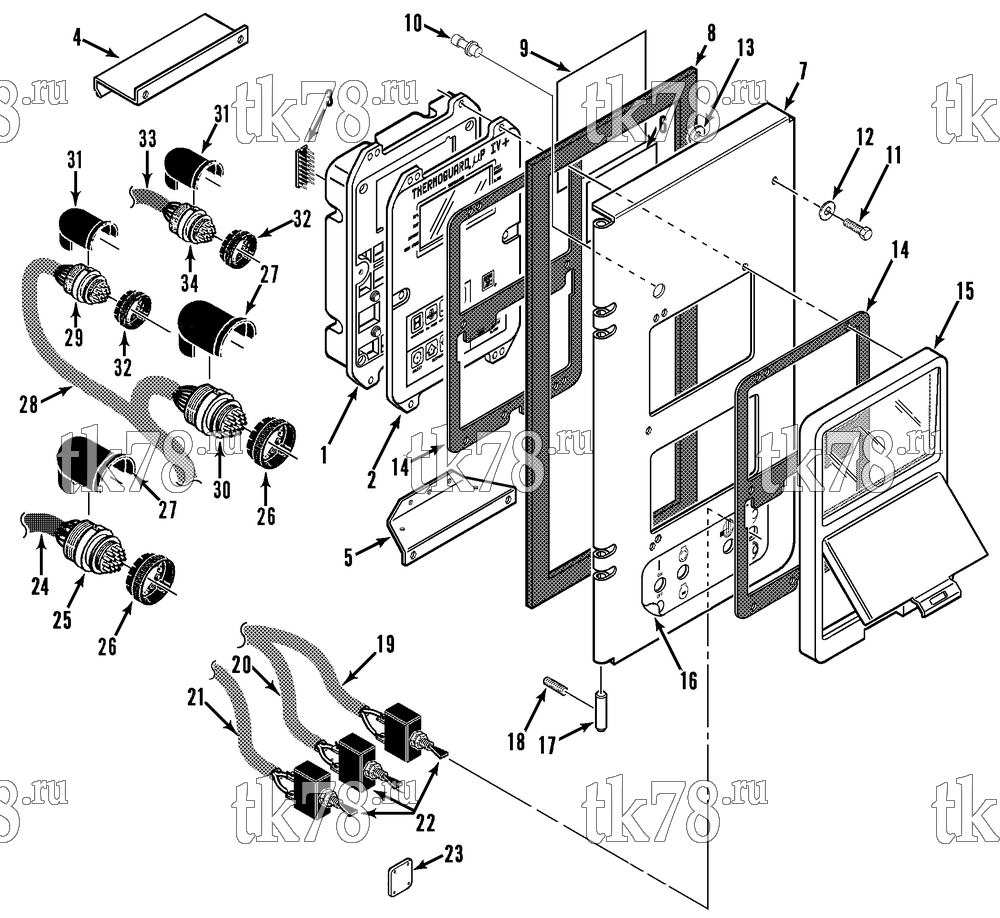

Установкa Thermo King SMX-II 50 SR TCI схема CONTROL BOX COVER (SMX-II TC SR) – 143B1
Обновление от: 3/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 845-1784 | CONTROLLER - microprocessor (reman) | 1 | |
| 845-1785 | CONTROLLER - microprocessor (reman) | 1 | ||
| 2 | 91-6191 | FACEPLATE/OVERLAY | 1 | |
| 3 | 40-806 | KIT - eprom chip | 1 | |
| 55-4580 | SCREW - controller | 4 | ||
| 55-2993 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 91-3975 | BRACKET - bandwrap | 1 | |
| 5 | 91-5728 | BRACKET - harness | 1 | |
| 55-4331 | SCREW - bracket | 2 | ||
| 55-2993 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 91-6835 | NAMEPLATE - Factory Settings | 1 | |
| 7 | 98-5230 | COVER - control box | 1 | |
| 8 | 33-2973 | GASKET - door | 1 | |
| 9 | 91-8271 | NAMEPLATE - See Operating Instructions | 1 | |
| 10 | 44-7193 | BUTTON - reset (230V) | 1 | |
| 91-8270 | BUTTON - reset (380V) | 1 | ||
| 11 | 55-6352 | SCREW - door | 3 | |
| 12 | 55-3028 | WASHER - sealing | 3 | |
| 13 | 55-6772 | WASHER - split | 3 | |
| 14 | 33-2894 | GASKET - bezel | 2 | |
| 15 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 16 | 91-8272 | NAMEPLATE - switch (TC-2) | 1 | |
| 91-8291 | NAMEPLATE - switch (TC-3) | 1 | ||
| 17 | 99-7900 | ROD - hinge | 2 | |
| 18 | 55-3473 | PIN - hinge | 2 | |
| 19 | 41-2254 | HARNESS - evaporator (zone 2, incl item 22) | 1 | |
| 20 | 41-2253 | HARNESS - switch (host/zone 1, incl item 22) | 1 | |
| 21 | 41-1287 | HARNESS - evaporator switch (zone 3, incl item 22) | 1 | |
| 22 | 44-7792 | SWITCH (1pst) | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 28 | 41-2257 | HARNESS - interconnecting | 1 | |
| 23 | 91-7718 | COVER - tracker access | 1 | |
| 55-3427 | SCREW - cover | 4 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 25 | 41-745 | CONNECTOR - circular (37-pin) | 1 | |
| 26 | 41-2255 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 27 | 55-7618 | CLAMP (plastic) | 2 | |
| 29 | 41-743 | CONNECTOR - circular (14-pin) | 1 | |
| 30 | 41-744 | CONNECTOR - circular (19-pin) | 1 | |
| 31 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 32 | 55-7617 | CLAMP (plastic) | 2 | |
| 33 | 41-1285 | HARNESS - datapack | 1 | |
| 41-1878 | HARNESS - datapack (w/ optional remote control box) | 1 | ||
| 41-2276 | HARNESS - optional remote control box | 1 | ||
| 34 | 41-746 | CONNECTOR - circular | 1 |
