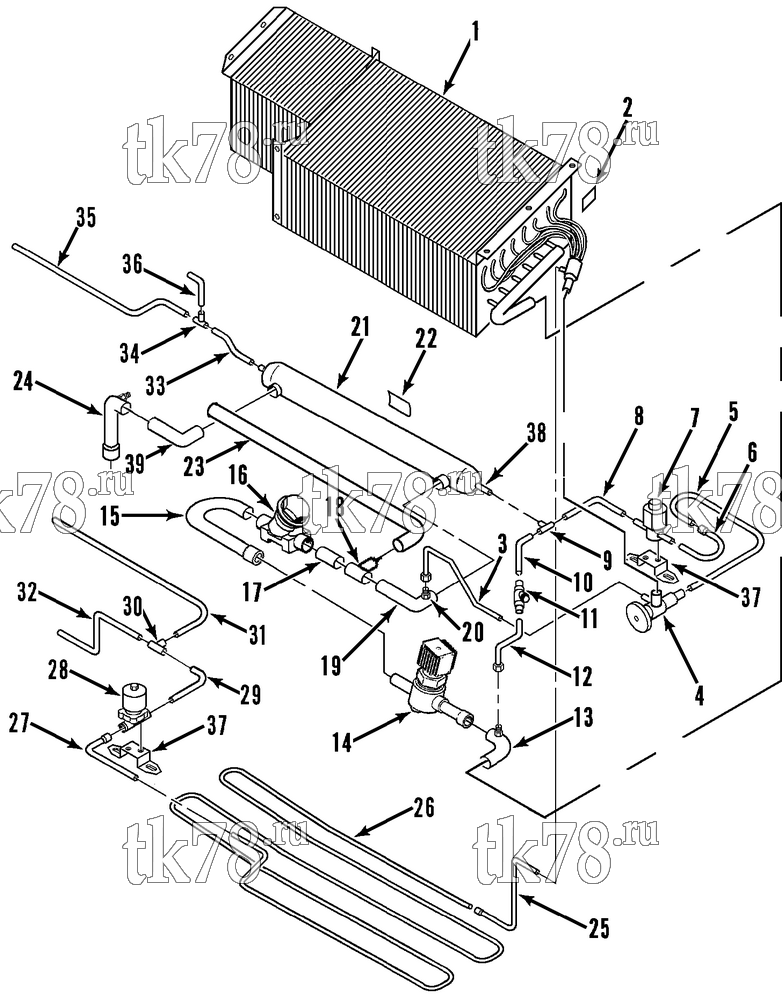

Установкa Thermo King SMX-II 50 SR TCI схема REFRIGERATION COMPONENTS - EVAPORATOR – 141F10
Обновление от: 1/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1975 | COIL - evaporator | 1 | |
| 55-7614 | SCREW - coil (8 x 60 mm) | 4 | ||
| 55-2904 | WASHER - special | 4 | ||
| 91-4837 | NUTSTRIP (7.3 bhc) | 1 | ||
| 91-4838 | NUTSTRIP (5.06 bhc) | 1 | ||
| 55-2270 | RIVET - nutstrip | 4 | ||
| 55-7035 | SCREW - coil (M6) | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6991 | INSERT - threaded | 2 | ||
| 55-6987 | SCREW - coil (8 x 30 mm) | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-4184 | WASHER - special | 2 | ||
| 2 | 91-2966 | NAMEPLATE - Pressure Vessel | 1 | |
| 3 | 66-8197 | TUBE - equalizer | 1 | |
| 4 | 66-7528 | VALVE - expansion (SMX only) | 1 | |
| 66-3650 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-9923 | VALVE - expansion (SL TCI & SPECTRUM SL) | 1 | ||
| 66-4453 | SCREEN - filter (outlet) | 1 | ||
| 5 | 66-8099 | TUBE - solenoid to valve | 1 | |
| 6 | 66-8100 | TUBE - solenoid to valve | 1 | |
| 7 | 66-5577 | VALVE - solenoid (see 116G14) | 1 | |
| 8 | 66-8101 | TUBE - solenoid to tee | 1 | |
| 9 | 55-2296 | TEE | 1 | |
| 10 | 66-8102 | TUBE - tee to check valve | 1 | |
| 11 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 12 | 66-8103 | TUBE - check valve to fitting | 1 | |
| 13 | 66-8104 | TUBE - suction | 1 | |
| 14 | 61-3845 | VALVE - suction (see 138B13) | 1 | |
| 15 | 66-8106 | TUBE - solenoid to check valve | 1 | |
| 16 | 66-4594 | VALVE - check (see 106C14) | 1 | |
| 17 | 66-8107 | TUBE - check valve to tee | 1 | |
| 18 | 55-3109 | TEE (1-3/8 x 1-3/8 x 1-3/8) | 1 | |
| 19 | 66-8878 | TUBE - tee to heat exchanger | 1 | |
| 20 | 66-5752 | FITTING | 1 | |
| 21 | 67-765 | HEAT EXCHANGER (see 129A11) | 1 | |
| 67-2491 | HEAT EXCHANGER (first tube out) | 1 | ||
| 22 | 91-2969 | NAMEPLATE - Pressure Vessel | 1 | |
| 23 | 66-8879 | TUBE - tee to suction remote | 1 | |
| 24 | 66-8880 | TUBE - heat exchanger to accumulator | 1 | |
| 66-5752 | FITTING | 1 | ||
| 25 | 66-8111 | TUBE - drain pan to distributor | 1 | |
| 26 | 66-5960 | TUBE - defrost | 1 | |
| 27 | 66-8112 | TUBE - defrost to solenoid | 1 | |
| 28 | 61-3401 | VALVE - solenoid (hot gas, see 116G14) | 1 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 29 | 66-8881 | TUBE - valve to tee | 1 | |
| 30 | 55-1252 | TEE (1/2 x 1/2 x 5/8) | 1 | |
| 31 | 66-8882 | TUBE - tee to remote hot gas | 1 | |
| 32 | 66-8884 | TUBE - hot gas | 1 | |
| 33 | 66-8883 | TUBE - tee to exchanger | 1 | |
| 34 | 55-2181 | TEE (1/2 x 1/2 x 5/8) | 1 | |
| 35 | 66-8884 | TUBE - liquid to tee | 1 | |
| 36 | 66-7854 | TUBE - tee to remote liquid | 1 | |
| 37 | 66-8198 | BRACKET - valve | 2 | |
| 38 | 66-8199 | TUBE | 1 | |
| 39 | 66-8877 | TUBE - suction | 1 |
