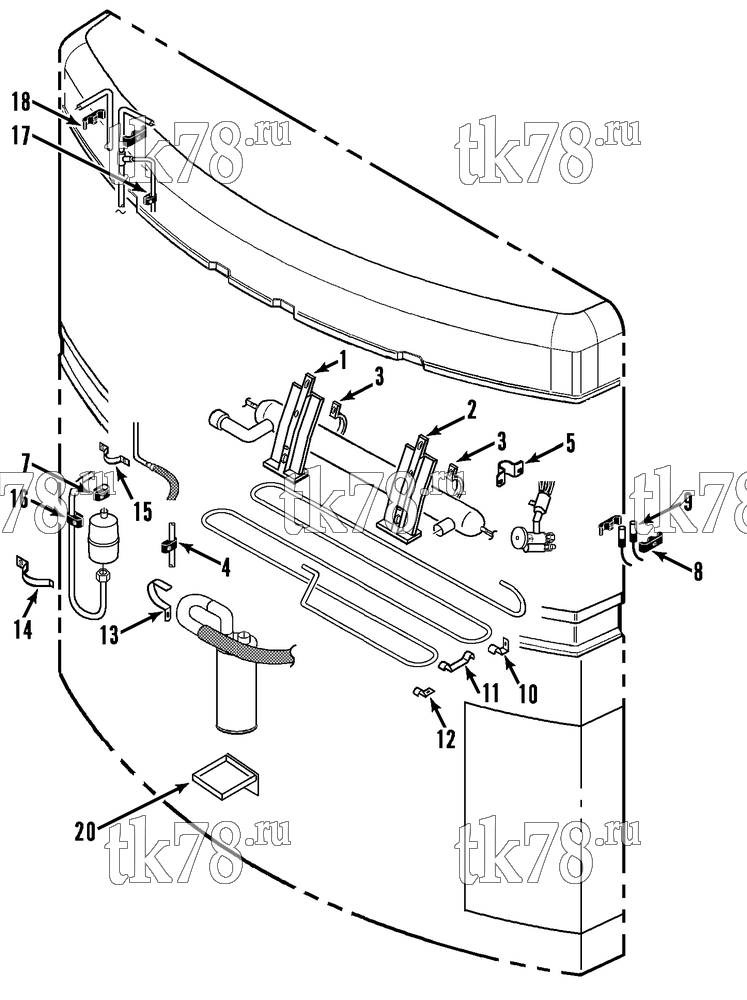

Установкa Thermo King SMX-II 50 SR TCI схема REFRIGERATION MOUNTING CLAMPS – 129F11
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3467 | BRACKET - heat exchanger (curbside) | 1 | |
| 2 | 91-3468 | BRACKET - heat exchanger (roadside) | 1 | |
| 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | ||
| 55-6993 | SCREW - bracket | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 3 | 91-3469 | STRAP - exchanger | 2 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 4 | 55-7013 | CLAMP - tube (7/8) | 2 | |
| 55-6990 | SCREW - clamp | 1 | ||
| 55-6991 | INSERT - threaded | 1 | ||
| 5 | 91-4064 | CLAMP - distributor | 1 | |
| 6 | Not Used | |||
| 7 | 91-445 | CLAMP - tube (1/2 x 1/2) | 2 | |
| 55-4605 | SCREW - clamp | 1 | ||
| 55-6991 | INSERT - threaded | 3 | ||
| 8 | 55-7087 | CLAMP - sensor (Thermoguard) | 2 | |
| 91-7266 | CLAMP - sensor (SR) | 1 | ||
| 55-7088 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7040 | INSERT | 1 | ||
| 9 | 41-418 | SENSOR (120 in lg, Thermoguard) | 1 | |
| 40-975 | SENSOR - temperature (SR, ungraded) | 1 | ||
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 10 | 91-2968 | CLAMP - holddown (defrost tube) | 2 | |
| 11 | 91-2967 | CLAMP - holddown (defrost tube) | 1 | |
| 12 | 99-8001 | CLAMP - defrost tube | 4 | |
| 55-6994 | SCREW - clamp | 7 | ||
| 55-7075 | FLATWASHER | 9 | ||
| 55-6996 | LOCKWASHER | 5 | ||
| 55-7042 | NUT | 2 | ||
| 55-6991 | INSERT - threaded | 5 | ||
| 13 | 91-3168 | CLAMP - suction vibrasorber | 1 | |
| 91-3169 | SPACER (1/4 in thk) | 1 | ||
| 55-5955 | SCREW - clamp (20 mm) | 2 | ||
| 55-7007 | NUT | 2 | ||
| 14 | 91-3170 | CLAMP - dehydrator | 1 | |
| 99-4326 | PAD - clamp | 1 | ||
| 55-7007 | NUT | 1 | ||
| 15 | 91-4190 | CLAMP - discharge vibrasorber | 1 | |
| 55-5955 | SCREW - clamp | 2 | ||
| 55-7007 | NUT | 2 | ||
| 16 | 91-759 | CLAMP - tube (1/2) | 4 | |
| 55-4605 | SCREW - clamp | 2 | ||
| 55-6991 | INSERT - threaded | 2 | ||
| 17 | 55-6544 | CLAMP - tube (1/4) | 2 | |
| 91-372 | CLAMP - tube (3/4) | 2 | ||
| 55-7802 | SCREW - clamp | 2 | ||
| 55-7007 | INSERT - threaded | 2 | ||
| 18 | 91-3171 | CLAMP - tube (1/2 x 3/4) | 1 | |
| 55-6990 | SCREW - clamp | 1 | ||
| 55-7007 | NUT | 1 | ||
| 19 | 91-1434 | SPACER - solenoid | 1 | |
| 55-1384 | SCREW - solenoid | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 20 | 91-8591 | TRAY - drip (accumulator tank) | 1 | |
| 92-1081 | TRAY - drip (accumulator tank, SL) | 1 |
