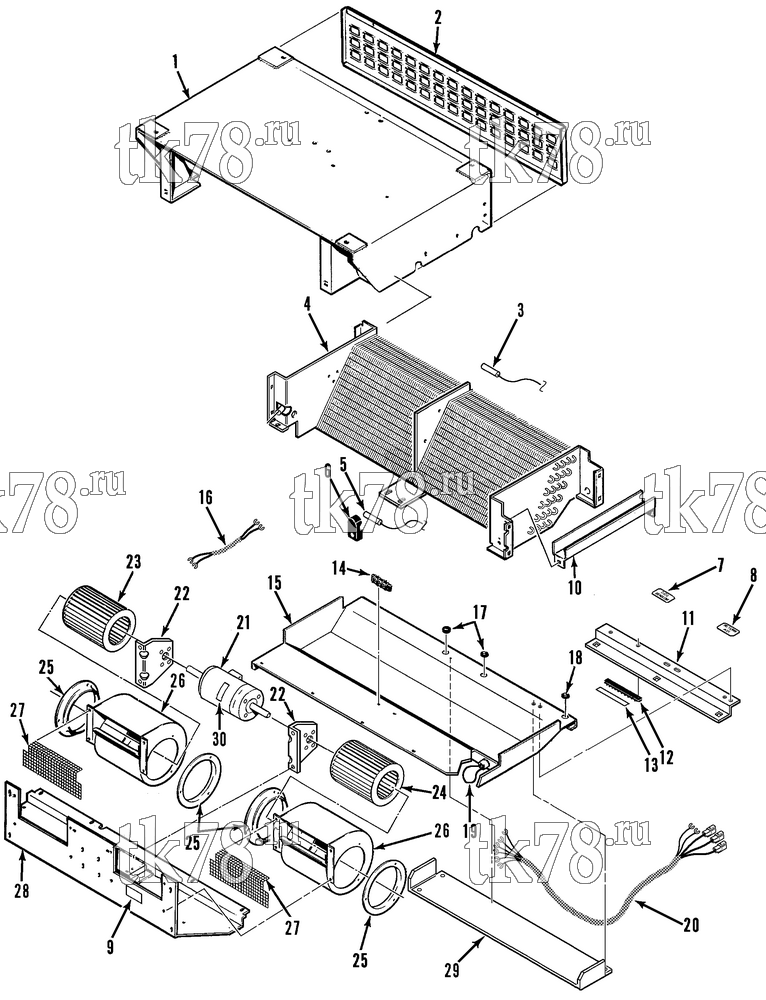

Установкa Thermo King SMX-II 50 SR TCI схема ECT SR EVAPORATOR - STRUCTURAL/ELECTRICAL KIT (714569) – 128D8
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4033 | HOUSING - evaporator | 1 | |
| 2 | 98-3490 | GRILLE - evaporator | 1 | |
| 55-2977 | SCREW - grille | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4415 | NUT - captive | 6 | ||
| 3 | 40-974 | KIT - sensor (graded) | 1 | |
|
40-974 OEM | Датчик температуры к-т, калиброванный | 25 620 ₽ |
|
|
10-40-974 | Датчик температуры к-т, калиброванный | 4 660 ₽ |
|
| 55-548 | CLAMP - sensor | 2 | ||
| 55-2991 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 4 | 67-1313 | COIL - evaporator (see 128D7) | 1 | |
| 5 | 40-975 | SENSOR - temperature (ungraded) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 6 | 91-6994 | CLAMP - sensor | 1 | |
| 55-2957 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 7 | 91-6995 | NAMEPLATE - coil sensor | 1 | |
| 8 | 91-6996 | NAMEPLATE - return air | 1 | |
| 9 | 91-5882 | NAMEPLATE - R404A | 3 | |
| 10 | 91-3331 | CHANNEL - harness | 1 | |
| 55-2977 | SCREW - bracket | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 11 | 91-6997 | BRACKET - terminal board | 1 | |
| 55-2991 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 12 | 44-5350 | BOARD - terminal (6 terminal, 20 amp) | 1 | |
| 55-5070 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-5754 | NUT | 2 | ||
| 13 | 91-6998 | MARKSTRIP | 1 | |
| 14 | 44-2876 | BOARD - terminal (2 terminal, 20 amp) | 1 | |
| 55-5070 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-5754 | NUT | 2 | ||
| 15 | 98-4140 | PAN - drain | 1 | |
| 91-3099 | INSULATION - drain pan | 1 | ||
| 55-2977 | SCREW - pan | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4415 | NUT | 8 | ||
| 16 | 41-1372 | HARNESS - resistance wires | 1 | |
| 17 | 33-451 | GROMMET (3/8 id) | 2 | |
| 18 | 33-572 | GROMMET (3/4 id) | 3 | |
| 19 | 44-6026 | WIRE - resistance (50 ft) | A/R | |
| 20 | 41-1373 | HARNESS - remote evaporator | 1 | |
| 21 | 44-7172 | MOTOR - evaporator | 1 | |
| 44-7050 | BRUSH | 2 | ||
| 77-1926 | BEARING | 2 | ||
| 55-1587 | SCREW - motor | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 22 | 91-1273 | BRACKET - motor | 2 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 23 | 77-1667 | WHEEL - blower (cw, see note) | 1 | |
| 24 | 77-1668 | WHEEL - blower (ccw, see note) | 1 | |
| 25 | 77-1669 | ORIFICE - blower | 4 | |
| 55-5635 | SCREW - orifice | 12 | ||
| 26 | 99-9202 | HOUSING - blower | 2 | |
| 55-2977 | SCREW - housing | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 2 | ||
| 27 | 91-770 | SCREEN - blower | 2 | |
| 28 | 91-3339 | PANEL - evaporator motor | 1 | |
| 55-1587 | SCREW - panel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 29 | 91-3334 | COVER - low voltage | 1 | |
| 30 | 99-9084 | NAMEPLATE - arrow | 3 |
