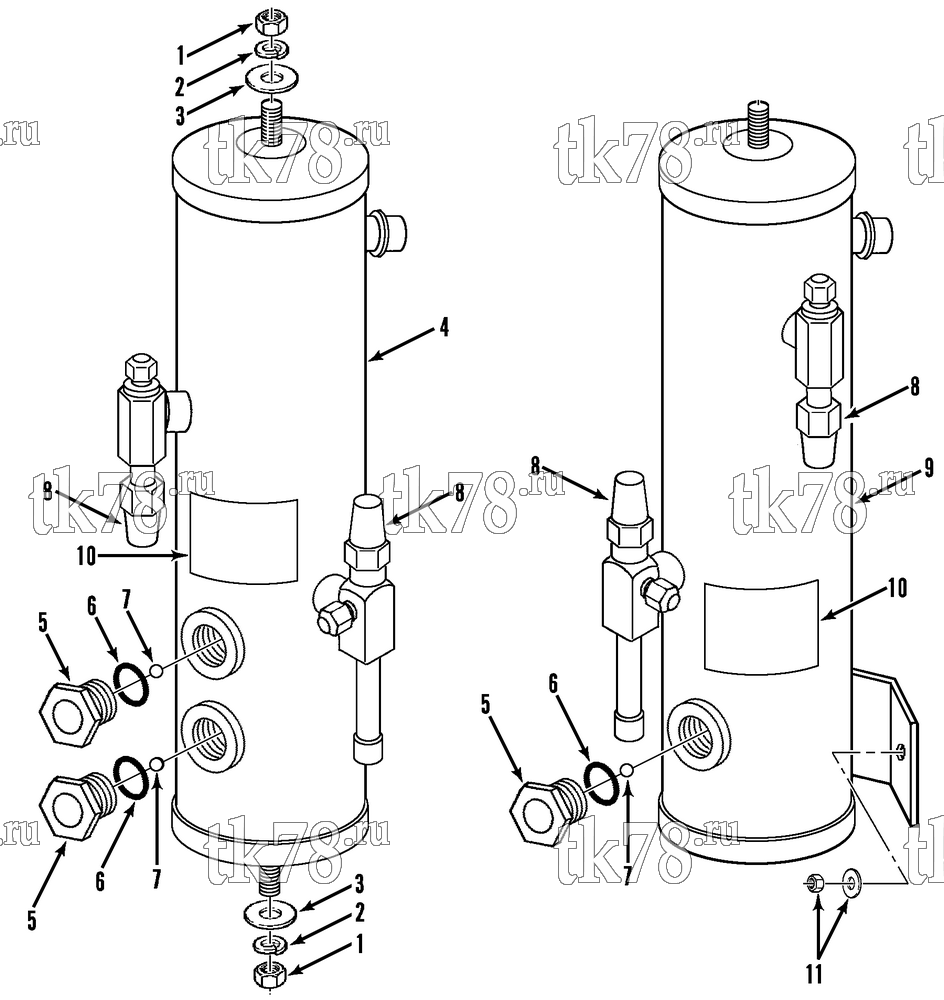

Установкa Thermo King SMX-II 50 SR TCI схема RECEIVER TANK GROUP – 121E13
Обновление от: 3/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-7005 | NUT - tank | 2 | |
| 2 | 55-7072 | FLATWASHER | 2 | |
| 3 | 55-4931 | WASHER - special | 2 | |
| 4 | N/A | TANK - receiver (w/ two sight glasses, use 67-1216) | 1 | |
| 5 | 66-6827 | INDICATOR - liquid | 2 | |
| 6 | 33-2419 | O-RING - indicator | 1 | |
| 7 | 66-9257 | BALL - sight glass | 2 | |
| 8 | 66-343 | CAP - valve | 2 | |
| 55-581 | WASHER (copper) | 2 | ||
| 9 | 67-1542 | TANK - receiver (w/ one sight glass, 2/94 & after) | 1 | |
|
67-1542 OEM | Бак фреона, SL/SLe/SMX/SMX-II | 44 040 ₽ |
|
|
10-67-1542 | Бак фреона, SL/SLe/SMX/SMX-II | 9 470 ₽ |
|
| 10 | 91-4848 | NAMEPLATE - pressure | 1 | |
| 11 | 55-7006 | NUT - tank | 1 | |
| 55-7069 | FLATWASHER | 1 |
