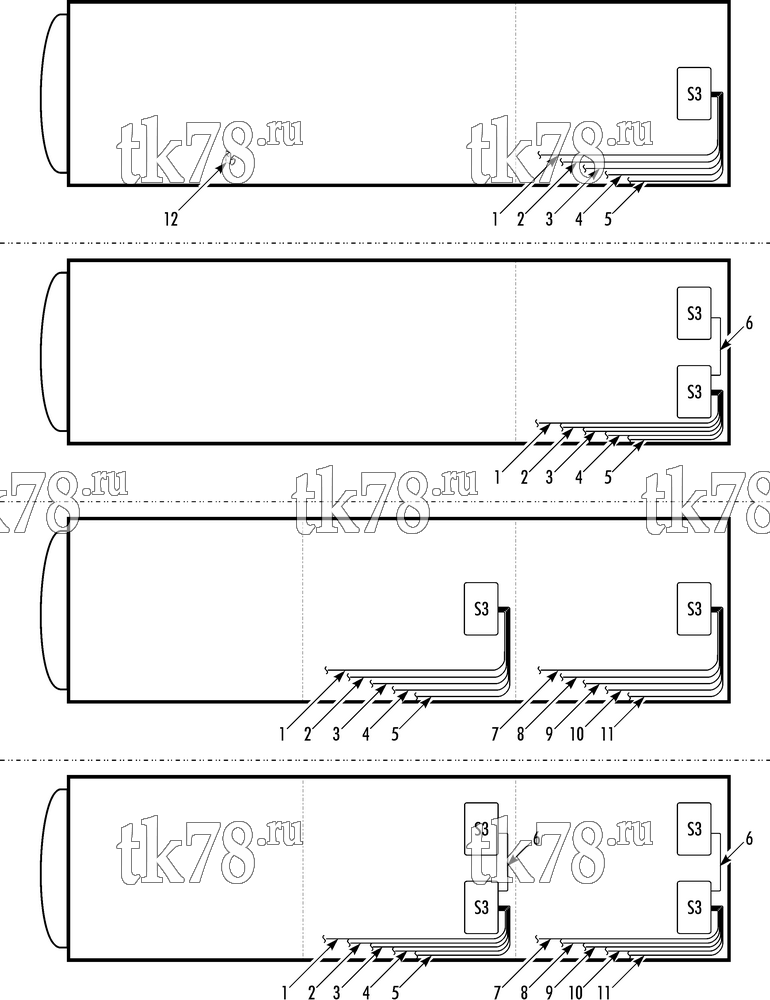

Установкa Thermo King SLX SPECTRUM схема S-3 HARNESS INSTALLATION (KIT 800365, 800366, 800367, 800368, 800116, 800117 & 8 – 236D8
Обновление от: 2/1/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8053 | HARNESS - fan 1 (zone 2) | 1 | |
| 2 | 41-2617 | HARNESS - fan 2 (zone 2) | 1 | |
| 3 | 41-2618 | HARNESS - fan 3 (zone 2) | 1 | |
| 4 | 41-7953 | HARNESS - sensor (zone 2) | 1 | |
| 5 | 41-7954 | HARNESS - control (zone 2) | 1 | |
| 6 | 41-7972 | HARNESS - interconnection (zone 2/3) | 1 | |
| 7 | 41-8250 | HARNESS - fan 1 (zone 3) | 1 | |
| 8 | 41-2619 | HARNESS - fan 2 (zone 3) | 1 | |
| 9 | 41-2686 | HARNESS - fan 3 (zone 3) | 1 | |
| 10 | 41-8860 | HARNESS - sensor (zone 3) | 1 | |
| 11 | 41-8861 | HARNESS - control (zone 3) | 1 | |
| 12 | 55-3065 | CLAMP (.50 dia) | A/R | |
| 55-3359 | CLAMP (.88 dia) | A/R | ||
| 55-4552 | CLAMP (1.0 dia) | A/R | ||
| 55-7504 | CLAMP (1.12 dia) | A/R | ||
| 55-6350 | SCREW - clamp | A/R |
