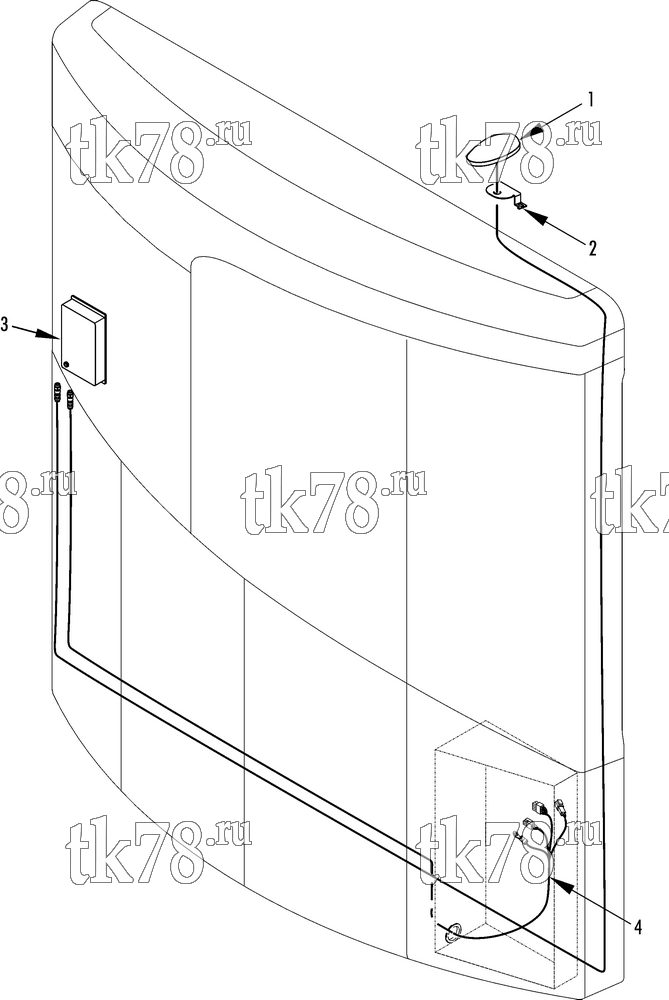

Установкa Thermo King SLX 400 Complete схема TracKing GPRS SR-2 CONTROLLER – 235F5
Обновление от: 6/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 40-1102 | KIT - TracKing (EU) | 1 | ||
| 40-1096 | KIT - TracKing (UK) | 1 | ||
| 1 | 41-9823 | HARNESS - module to pc board | 1 | |
| 2 | 92-6878 | BRACKET - antenna | 1 | |
| 55-9693 | SCREW - bracket | 4 | ||
| 55-9763 | NUT | 4 | ||
| 3 | 41-9517 | MODULE - TracKing UK SIM | 1 | |
| 41-9517 | MODULE - TracKing EU SIM | 1 | ||
| 55-3669 | RIVET - module | 4 | ||
| 55-5960 | WASHER | 4 | ||
| 4 | 41-8767 | HARNESS - module to pc board | 1 |
