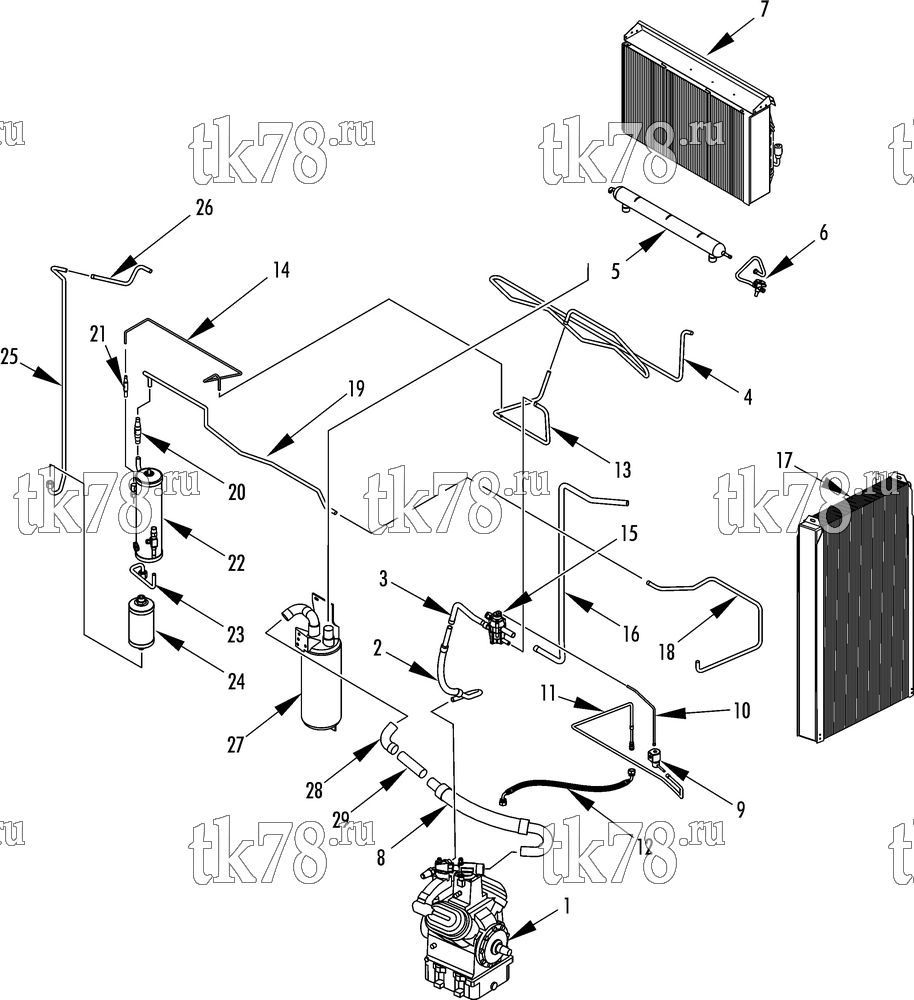

Установкa Thermo King SLX 200 схема REFRIGERATION COMPONENTS SLX 200 MTV (before 5/10) – 225D1
Обновление от: 8/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-900 | COMPRESSOR - X430 LS C5 (new exchange dry, see 223C5) | 1 | |
| 2 | 61-4127 | VIBRASORBER - discharge | 1 | |
| 61-4127 OEM | Вибросорбер нагнетания SLX | 48 360 ₽ |
|
|
| 3 | 61-4231 | TUBE - vibrasorber to 3-way valve | 1 | |
| 4 | 67-2337 | TUBE - serpentine | 1 | |
| 5 | 67-2698 | HEAT EXCHANGER | 1 | |
| 6 | 61-3679 | VALVE - expansion | 1 | |
| 66-6380 | FILTER - inlet | 1 | ||
| 66-4453 | FILTER - outlet | 1 | ||
| 7 | 67-2333 | COIL - evaporator | 1 | |
| 8 | 61-4126 | VIBRASORBER - suction | 1 | |
|
61-4126 OEM | Вибросорбер всасывания, SLX/SLXe | 31 270 ₽ |
|
|
10-61-4126 | Вибросорбер всасывания, SLX/SLXe | 8 300 ₽ |
|
| 9 | 66-8560 | SOLENOID - pilot | 1 | |
| 66-8560 OEM | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 38 690 ₽ |
|
|
|
10-66-8560 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 31 100 ₽ |
|
|
PP-61-8939 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 8 380 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-1384 | SCREW - solenoid | 4 | ||
| 55-414 | LOCKWASHER | 4 | ||
| 55-406 | FLATWASHER | 4 | ||
| 10 | 61-4135 | TUBE - 3 way to solenoid | 1 | |
| 11 | 61-4136 | TUBE - solenoid to compressor | 1 | |
| 12 | 61-1829 | HOSE - solenoid to compressor | 1 | |
| 13 | 61-4230 | TUBE - defrost | 1 | |
| 14 | 61-4131 | TUBE - defrost to receiver tank | 1 | |
| 15 | 66-9896 | VALVE - 3-way (see 153F10) | 1 | |
| 16 | 61-4139 | TUBE - 3-way to condenser coil | 1 | |
| 17 | 67-2332 | COIL - condenser/radiator | 1 | |
| 18 | 61-4140 | TUBE - condenser to joint | 1 | |
| 19 | 61-4139 | TUBE - joint to check valve | 1 | |
| 20 | 61-4268 | VALVE - check | 1 | |
| 21 | 61-4269 | VALVE - check | 1 | |
| 22 | 67-2336 | TANK - receiver | 1 | |
|
67-2336 OEM | Бак фреона, SLX/SLXe | 55 650 ₽ |
|
| 10-67-2336 | Бак фреона, SLX/SLXe | 22 070 ₽ |
|
|
| 23 | 61-4128 | TUBE - receiver to dehydrator | 1 | |
| 24 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 25 | 61-4142 | TUBE - dehydrator to joint | 1 | |
| 26 | 61-4141 | TUBE - joint to evaporator | 1 | |
| 27 | 67-2335 | TANK - accumulator | 1 | |
| 28 | 66-602 | ELBOW | 1 | |
| 29 | 61-4233 | TUBE - elbow to vibrasorber | 1 |
